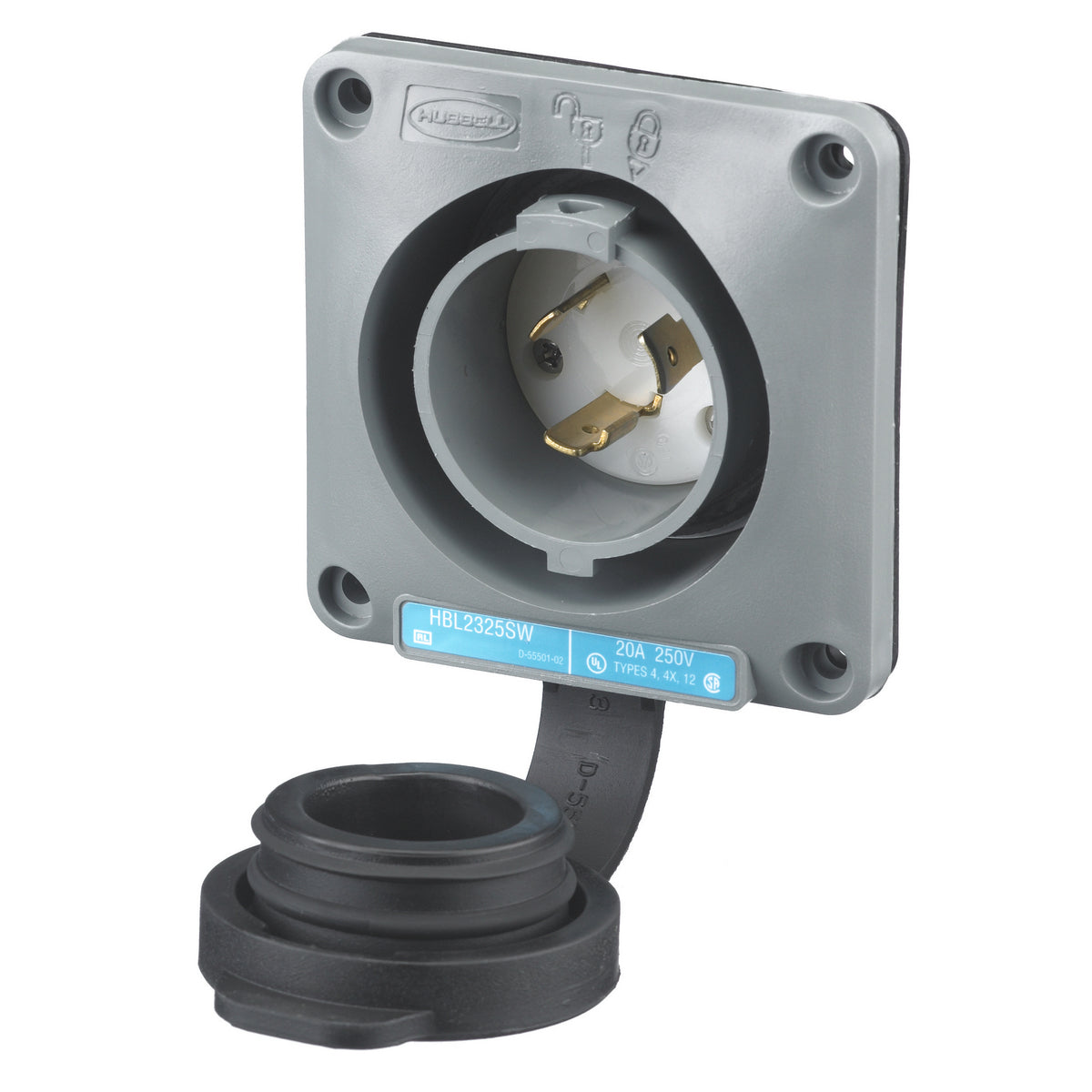

Hubbell HBL2325SW HUB LKG WT S/SHRD FLG-INLT, 20A 250V, L6-20P

Product Description

The Hubbell HBL2325SW is a Locking Flanged Inlet designed for heavy-duty electrical applications. This device meets NEMA L6-20P standards and provides a watertight connection for various equipment.

• Amperage rating of 20 A.
• Voltage rating of 250 VAC.
• IP66 enclosure for protection against dust and water.

Product Highlights

This locking inlet is suitable for industrial environments that require reliable performance under challenging conditions. It features thermoplastic construction for durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL2325SW

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• Application: Extra Heavy Duty Industrial Applications
• Material: Thermoplastic
• NEMA Rating: L6-20P
• Enclosure: IP66
• Dimensions: 3.75 x 3.75 x 2.28 in
• Horsepower: 2 hp
• Terminal Type: Screw
• Number of Wires: 3
• Number of Poles: 2
• Cord Diameter: 0.325 to 0.72 in
• Temperature Rating: -40 to 75 deg C
• Standards/Approvals: RoHS Compliant, CSA C22.2 No. 42/0.17, Federal Specification W-C-596, UL 498, UL94 V-0 Flammability Rating
