Product Description

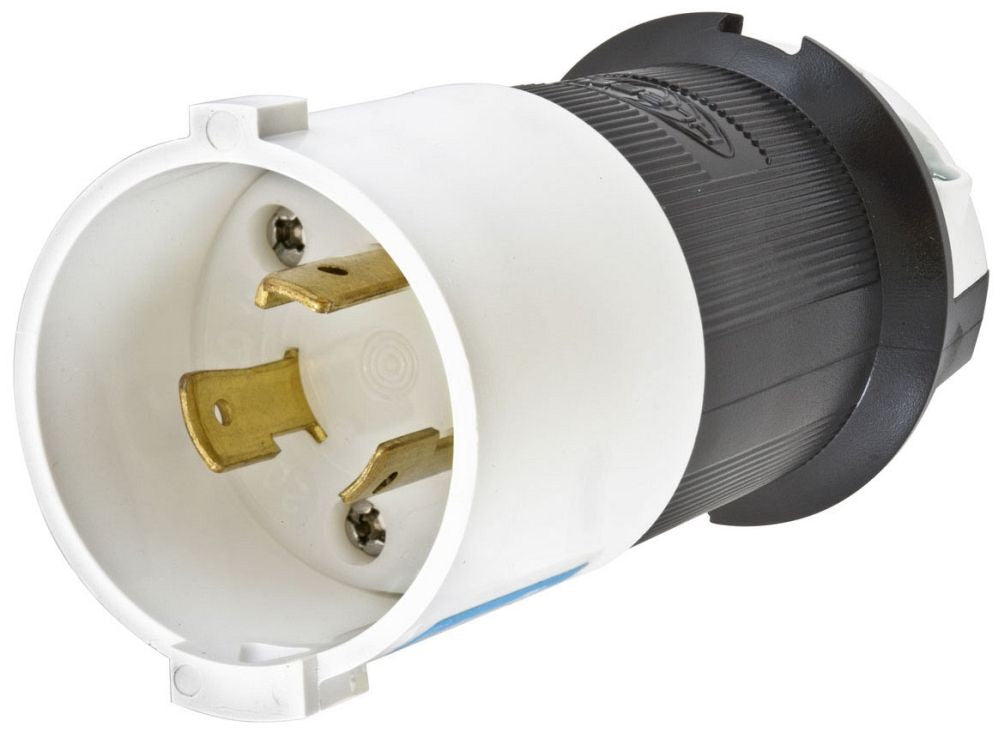

The Hubbell HBL2321S is a locking plug designed for power connection applications. This device operates at 250 VAC and has a current rating of 20 A, making it suitable for many industrial requirements. It features a twist-lock design for secure connections.
- Indoor dry use unless protected by additional means
- Withstands 2000 VAC dielectric voltage
- Compatible with 14 to 10 AWG wire
Product Highlights
This locking plug is ideal for applications requiring safety and reliability in power connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: HBL2321S
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 250 VAC
-
Horsepower: 2 hp
-
Number of Poles: 2
-
Number of Wires: 3
-
NEMA Rating: L6-20P
-
Cord Diameter: 0.325 to 0.93 inches
-
Temperature Rating: -40 to 75 degrees C
-
Material: Nylon
-
Enclosure: IP20
-
Dimensions: 2.26 x 2.26 x 4.21 inches
-
Standards/Approvals: UL 498, UL 94 Flammability Rating, Federal Specification W-C-596, CSA C22.2 No. 42, 0.6 Certified, RoHS Compliant
