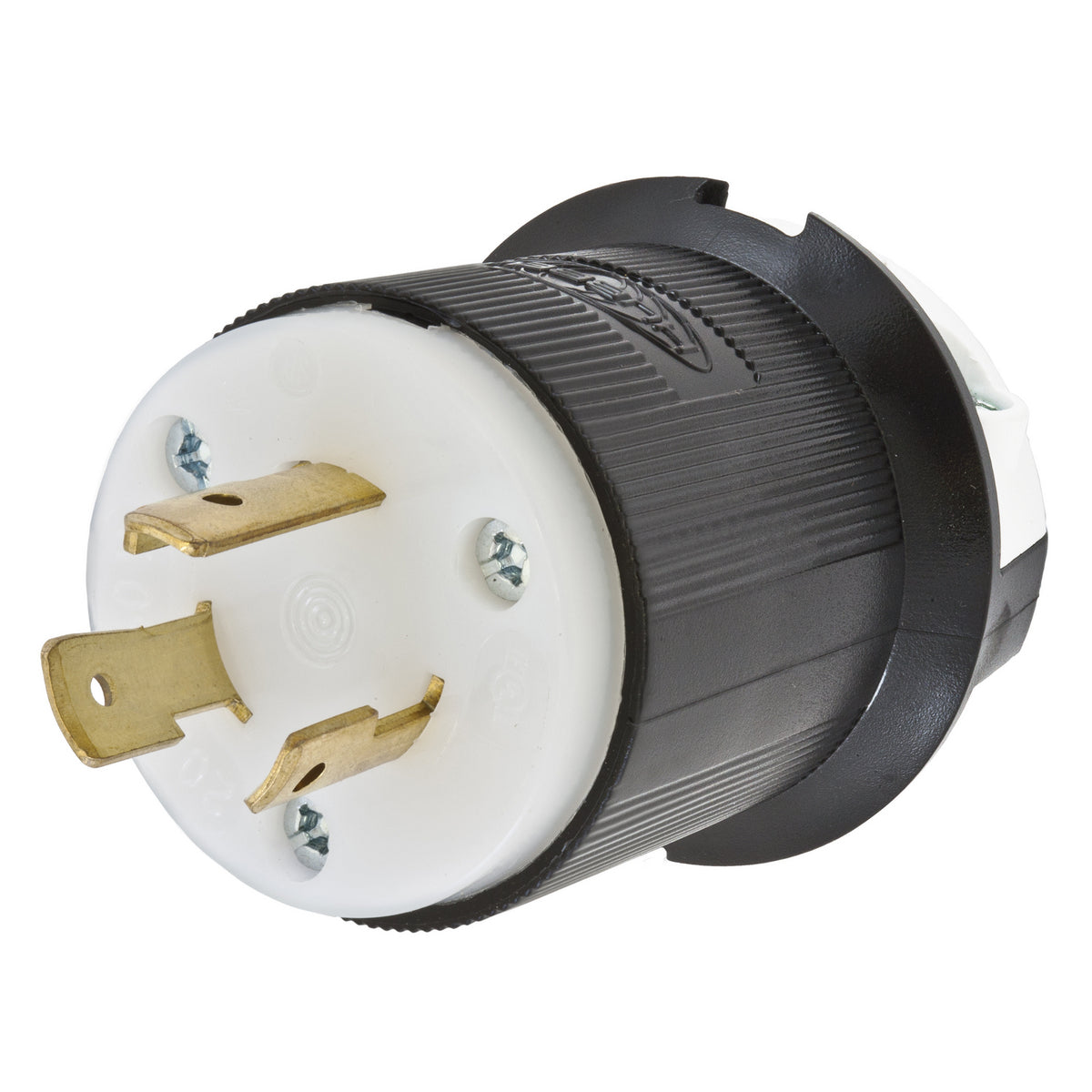

Hubbell HBL2321 20A 250V Twist-Lock INSULGRIP Black Nylon Plug, Straight

Product Description

The Hubbell HBL2321 is a twist-lock plug designed for industrial applications. It features a two-pole and three-wire configuration with a rating of twenty amps at two hundred fifty volts. This plug is compliant with the NEMA L6-20P standard and is constructed using tough black nylon for durability.

• Ribbed nylon housing offers a secure grip.
• Clear funnel-shaped wire entry for easy termination.
• Designed for extra heavy-duty industrial applications.

Product Highlights

This Insulgrip plug is engineered to provide superior performance in demanding environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 250 Volt
• Wattage: 5000 Watt
• Material: Nylon
• Environmental Conditions: Indoor dry unless protected by additional means
• Wire Size: 16-8 AWG
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
