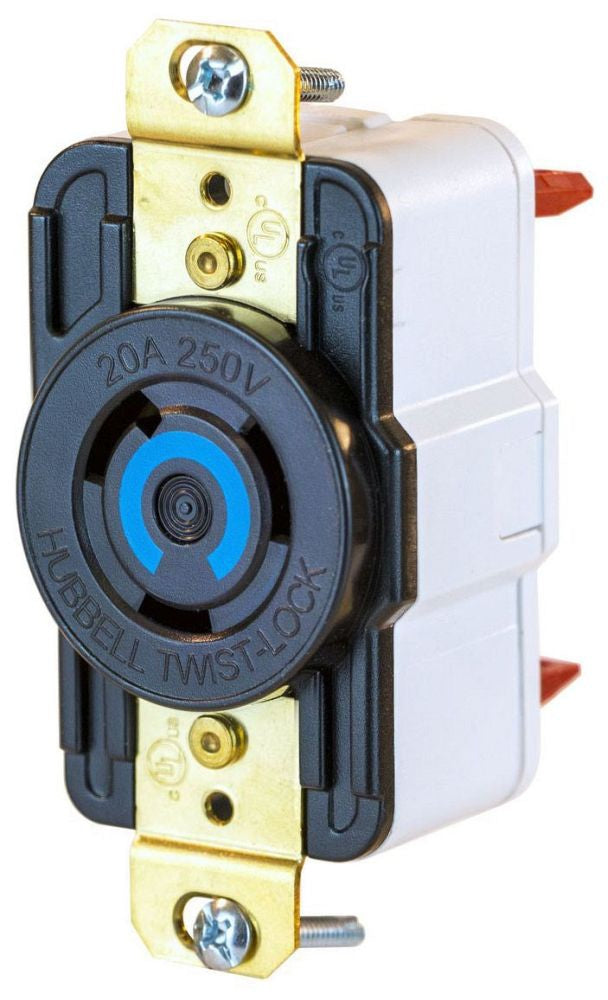

Hubbell HBL2320ST Wiring Device-Kellems Twist-Lock 20A 250V L6-20R

Product Description

The Hubbell HBL2320ST is a wiring device-Kellems Twist-Lock receptacle rated for twenty amps and two hundred fifty volts. It features a single flush grounding configuration and is designed to work with NEMA L6-20R standards. This receptacle includes a spring terminal design which allows for faster termination without the need for screws or torque wrenches.

• Spring terminal eliminates strand relaxation.
• Constructed of impact-resistant nylon.
• Facilitated face color coding for easy identification.

Product Highlights

This product is ideal for industrial and commercial applications where reliable locking is required. Its durable design withstands various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358556955

Technical Specifications

• Amperage Rating: 20 A
• Color: Black
• Dimensions: 1.7 in W x 1.468 in D x 2.77 in H
• Enclosure: IP20
• Horsepower: 2 hp
• Material: Nylon
• NEMA Rating: NEMA L6-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
• Voltage Rating: 250 V
