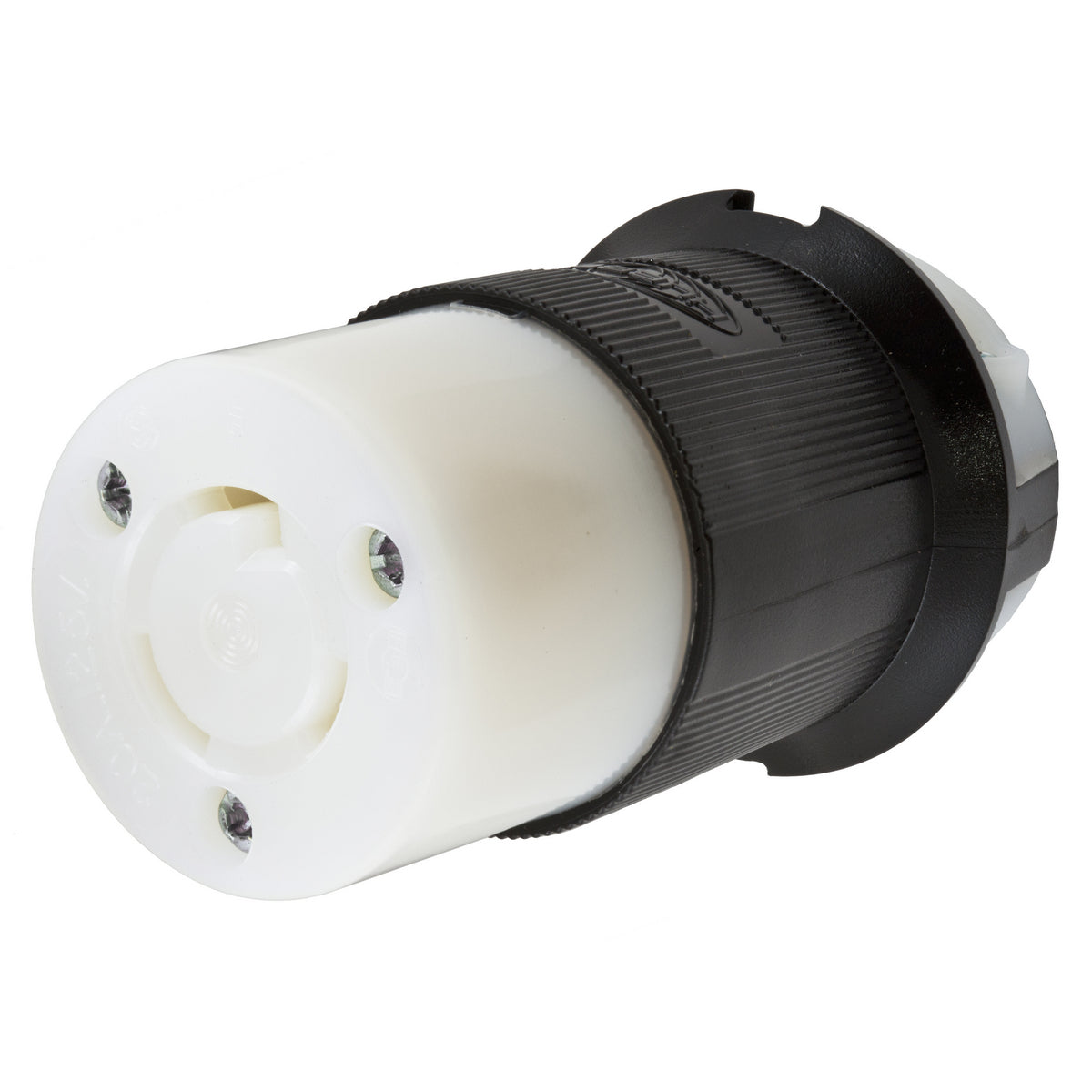

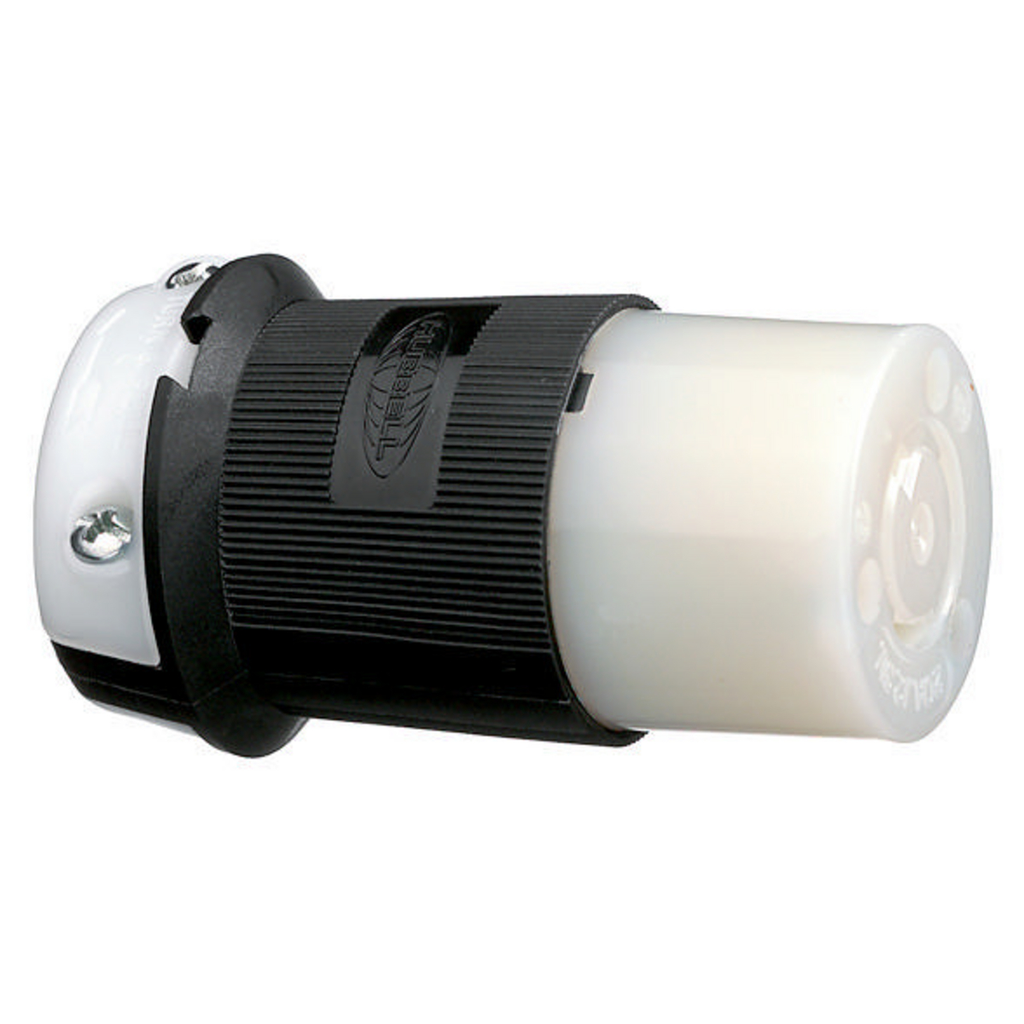

Hubbell HBL2313 20A 125V Twist-Lock INSULGRIP Black & White Nylon Connector Body

Product Description

The Hubbell HBL2313 is a twenty amp, one hundred twenty-five volt twist-lock Insulgrip connector body. It is designed for industrial applications requiring a durable and reliable connection. This connector features a two-pole, three-wire grounding configuration and is compliant with NEMA L5-20R standards.

• Ribbed nylon housing for secure grip.
• Pressure screw terminal connection type.
• Clear wire entry for easy termination.

Product Highlights

Designed for heavy-duty industrial use, the HBL2313 withstands various environmental conditions and offers a secure connection for electrical applications. It is suitable for use with 16-8 AWG wire sizes and can handle up to one horsepower.

Product Information

Standard Information

• Catalog Number: HBL2313
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 125 Volt
• Material: Nylon
• Color: Black and White
• Weight: 0.30 lb

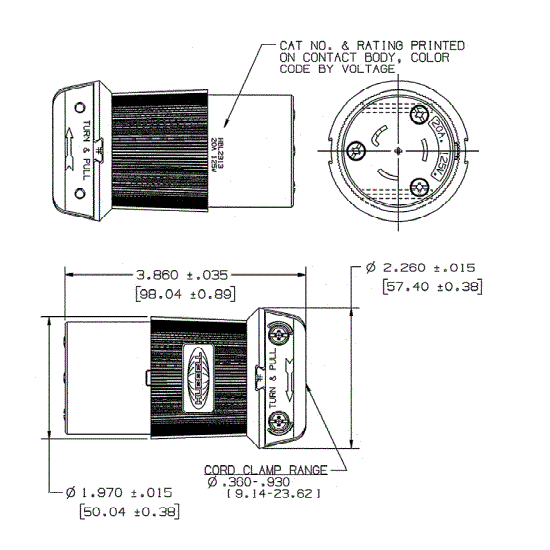

• Dimensions: 2.26 in x 2.26 in x 3.86 in
• NEMA Rating: L5-20R
• Temperature Rating: -25 to 75 degrees C (with impact)
