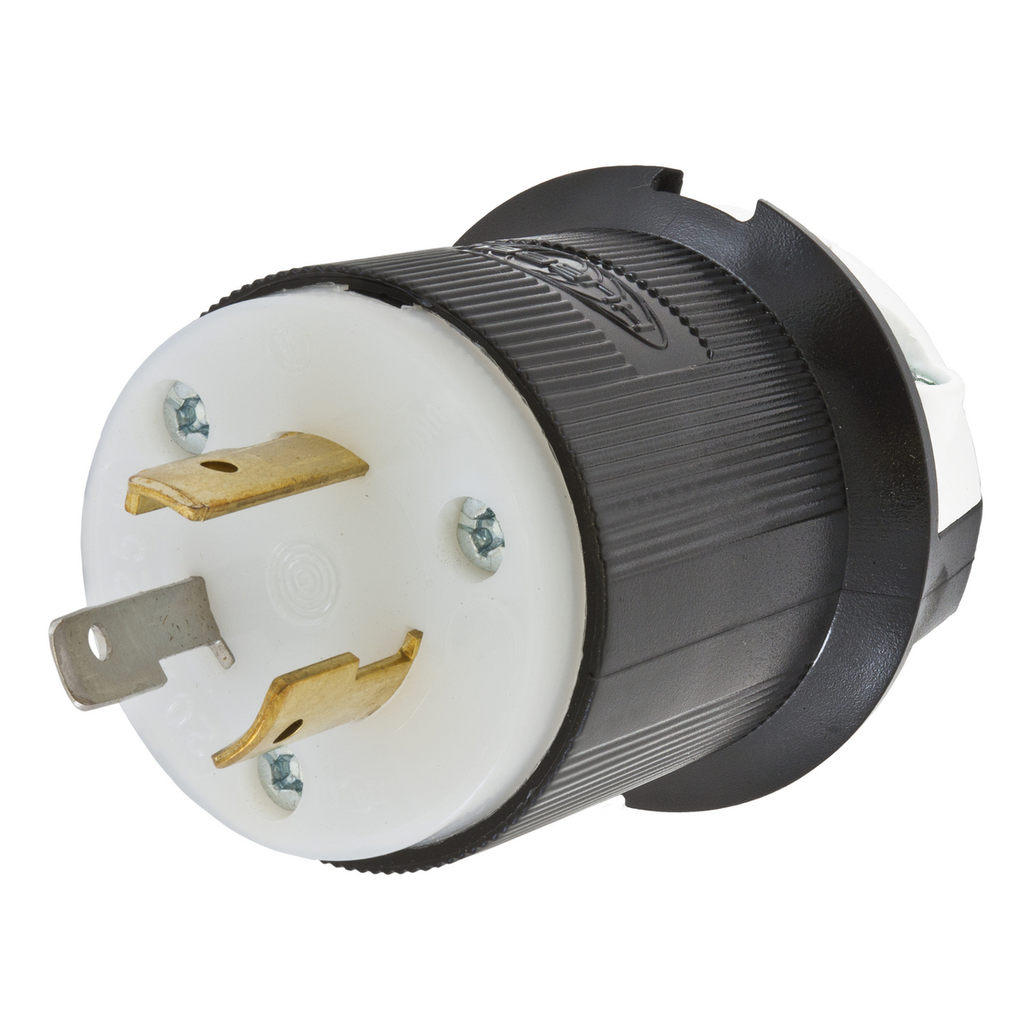

Hubbell HBL2311 20A 125V Twist-Lock INSULGRIP Black Nylon Plug, Straight

Product Description

The Hubbell HBL2311 is a twist-lock plug designed for industrial applications. This male Insulgrip plug supports a current rating of twenty amps and a voltage rating of one hundred twenty-five volts. It is suited for outdoor use and provides secure connections with its ribbed nylon housing. The plug features a NEMA L5-20P configuration and screw terminals for easy installation.

• Designed for extra heavy-duty industrial applications.
• Features a secure grip and chemical resistance.
• Includes an integral dust shield that protects the wiring chamber.

Product Highlights

This plug is ideal for use in environments where reliability and safety are essential.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2311

Technical Specifications

• Current Rating: 20 Amps
• Voltage Rating: 125 Volts
• Wattage: 2000 Watts
• Material: Nylon
• Weight: 0.25 lb
• Dimensions: 2.26 in x 2.5 in x 2.75 in
• NEMA Rating: L5-20P
• Number of Wires: 3
• Number of Poles: 2
• Country of Origin: USA
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
