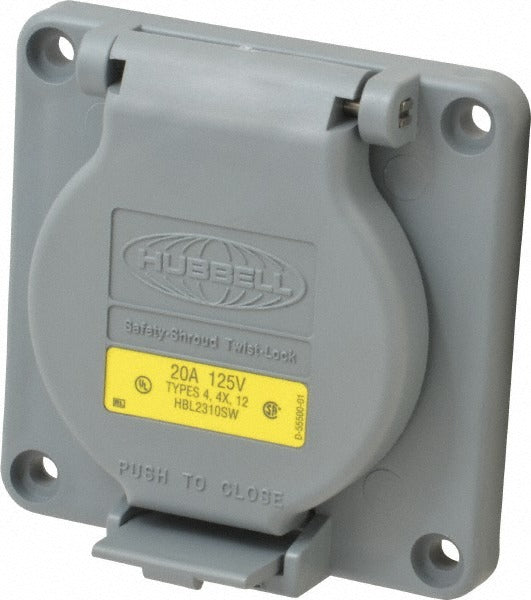

Hubbell HBL2310SW L5-20R 20A 125V Self Grounding Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL2310SW is a self-grounding locking receptacle rated for 20 amps at 125 volts AC. It follows the NEMA L5-20R configuration, which features a 2-pole, 3-wire layout with a female end. The gray body and self-grounding design allow the receptacle to establish a ground path through the mounting yoke without requiring a separate ground pigtail wire, simplifying installation in metal box applications. This receptacle is suited for commercial and industrial environments where a secure, twist-lock connection is required to prevent accidental disconnection under load.

This receptacle is used in commercial buildings, industrial facilities, data centers, and job-site power distribution equipment where 125-volt, 20-amp twist-lock outlets are specified. The L5-20R form factor is common in power distribution units, portable generators, and branch circuit outlets that feed sensitive equipment or tools requiring a locked connection. Installation is typically performed by a licensed electrician during rough-in or device replacement work.

Key Features

• Self-grounding yoke eliminates the need for a separate ground pigtail in metal box installations
• NEMA L5-20R twist-lock configuration prevents accidental cord pull-out
• Rated 20 amps at 125 volts AC for standard branch circuit loads
• 2-pole, 3-wire female receptacle end
• Gray finish suitable for commercial and industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for NEMA L5-20R twist-lock applications in 20-amp, 125-volt branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for the applicable circuit rating. De-energize and lock out the branch circuit at the panel before removing any existing device or making wiring connections. Verify the box and conduit system are properly bonded to take advantage of the self-grounding feature. Do not exceed the 20-amp or 125-volt ratings of this receptacle.
