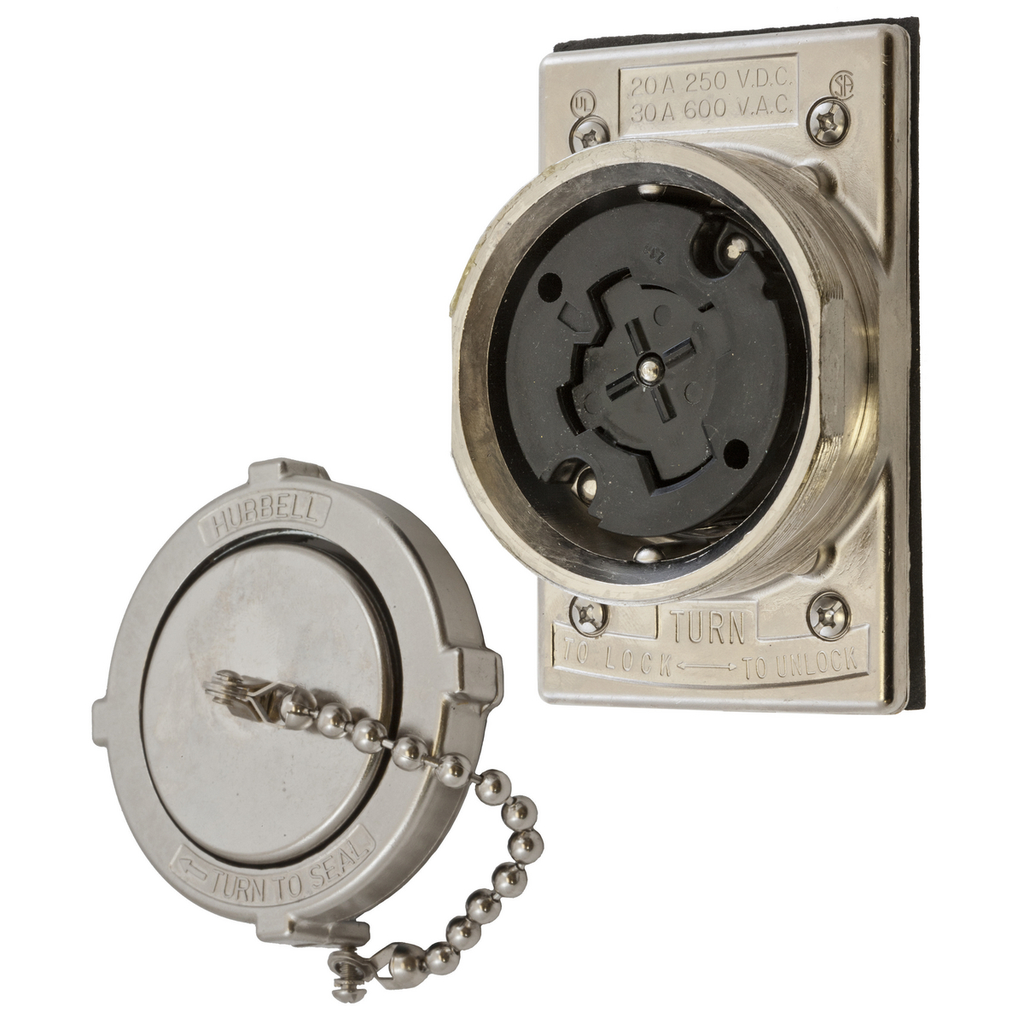

Hubbell HBL22CM427 Receptacle Flanged MTG 3P4W 30A 600V

Product Description

The Hubbell HBL22CM427 is a locking receptacle designed for heavy-duty applications. Made by Hubbell Wiring Device-Kellems, this receptacle offers a robust solution for industrial needs. It features a three-pole, four-wire configuration suitable for use with 30 Amp at 600 Volt AC and 20 Amp at 250 Volt DC.

• Corrosion-resistant nickel plated brass plate
• Spring loaded safety shutter for added protection
• Weathertight design with screw terminal for secure mounting

Product Highlights

This receptacle is ideal for environments that require reliable and safe electrical connections. It is designed to withstand harsh conditions while maintaining excellent performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Product ID: 946444

Technical Specifications

• Product UPC: 78358501736
• Wire Size: 10-6 AWG
• Material: Thermoplastic
• Mounting Type: Screw, Flush, Inner Lying
• Operating Temperature: -40 degrees C
• Weight: 2.3 lb
• Dimensions: 4.5 in x 3.5 in x 3.62 in
• Dielectric Strength: Withstands 2,000V minimum
