Product Description

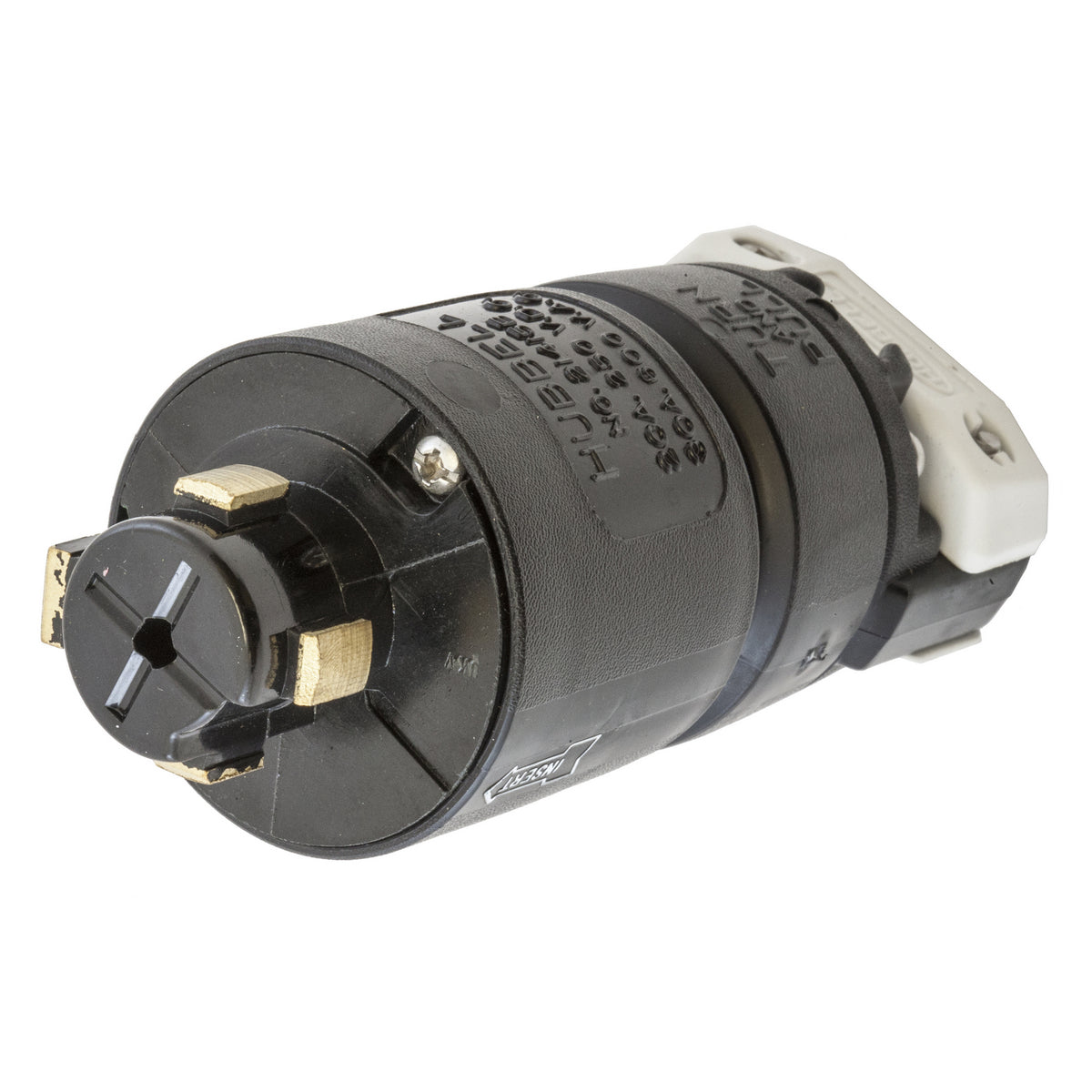

The Hubbell HBL21415B is a four-wire locking plug designed for three-phase applications. It handles up to thirty amperes at six hundred volts alternating current and two hundred fifty volts direct current. The industrial-grade design makes it suitable for various heavy-duty uses in professional settings.
- Supports stranded copper wire terminals.
- Durable nylon housing for safety and resistance.
- Designed for moisture and dust protection.
Product Highlights
This locking plug ensures reliable connections for heavy-duty electrical applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501727
Technical Specifications
-
Type: 3-Phase Heavy Duty Grounding Cord Mount
-
Amperage Rating: 20/30 A
-
Voltage Rating: 600 VAC/250 VDC
-
Color: Black/White
-
Cord Diameter: 0.63 to 1.2 inches
-
Dimensions: 2.33 x 0.94 x 5.63 inches
-
Enclosure: IP30
-
Material: Nylon
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 75 degrees C
-
Standards/Approvals: UL 498, CSA 22.2 No. 0.6
-
Terminal Type: Pressure Screw
