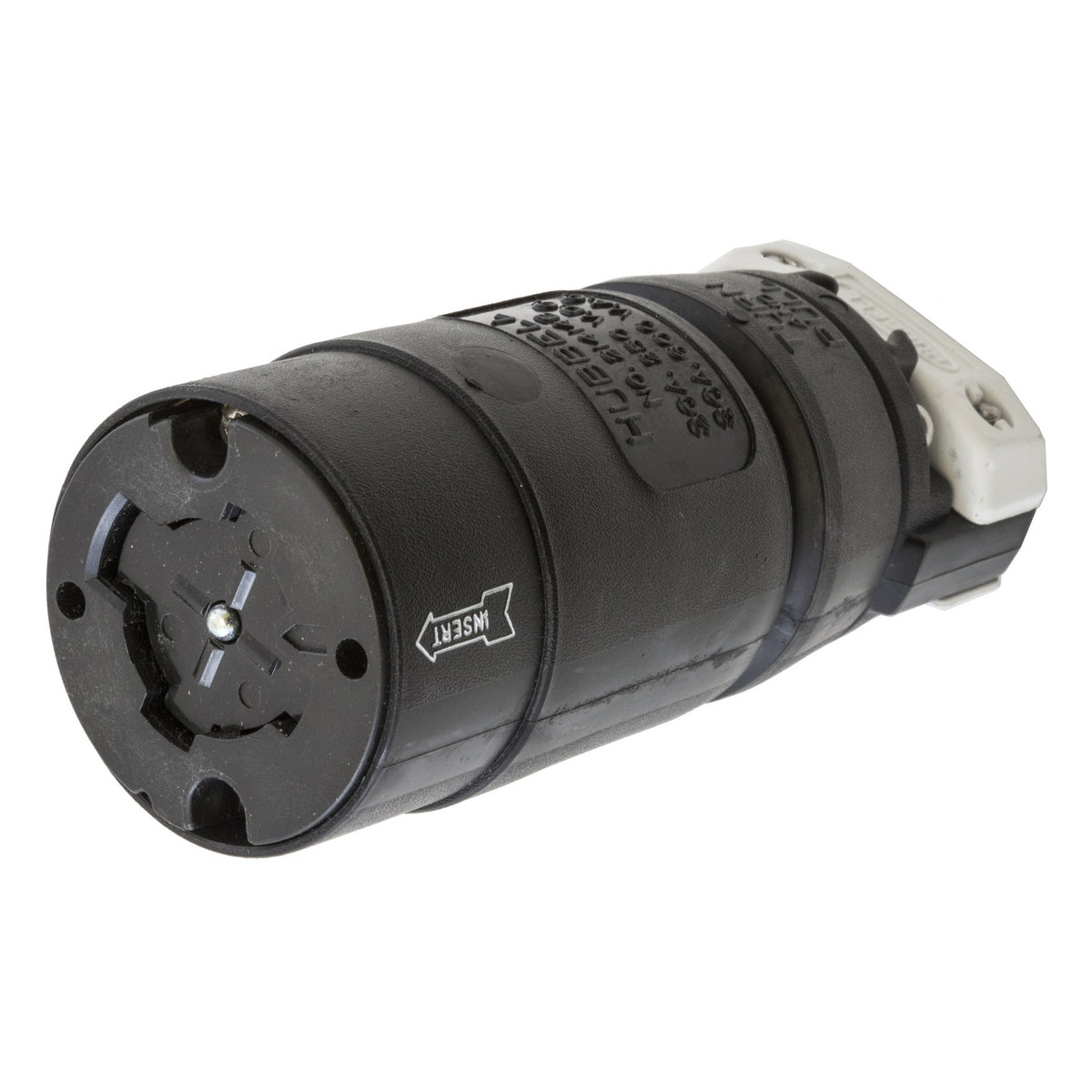

Hubbell HBL21414B HUB 4W 30A-600VAC CONN BODY

Product Description

The Hubbell HBL21414B is a locking connector designed for grounding heavy duty cord mount applications. With a voltage rating of six hundred VAC and two hundred fifty VDC, this connector is suitable for both industrial and commercial use. It features three poles and three wires, making it versatile for various wiring tasks.

• Cord diameter range from zero point six three to one point two inches
• Temperature rating between minus forty to seventy-five degrees Celsius
• IP30 enclosure for protection against dust and moisture

Product Highlights

The HBL21414B integrates safety features such as a spring-loaded shutter to prevent arcing during connection and disconnection. The black and white nylon body provides durability in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358501729

Technical Specifications

• Type: Grounding Heavy Duty Cord Mount
• Amperage Rating: 20/30 A
• Voltage Rating: 600 VAC/250 VDC
• Temperature Rating: -40 to 75 deg C
• Dimensions: 6 x 2.44 x 2.44 in
• Material: Nylon
• Enclosure: IP30
• Standards/Approvals: UL 498, CSA C22.2 No. 42 Certified, RoHS Compliant
• Number of Poles: 3
• Number of Wires: 3
• Cord Diameter: 0.63 to 1.2 in
• Terminal Type: Pressure Screw
