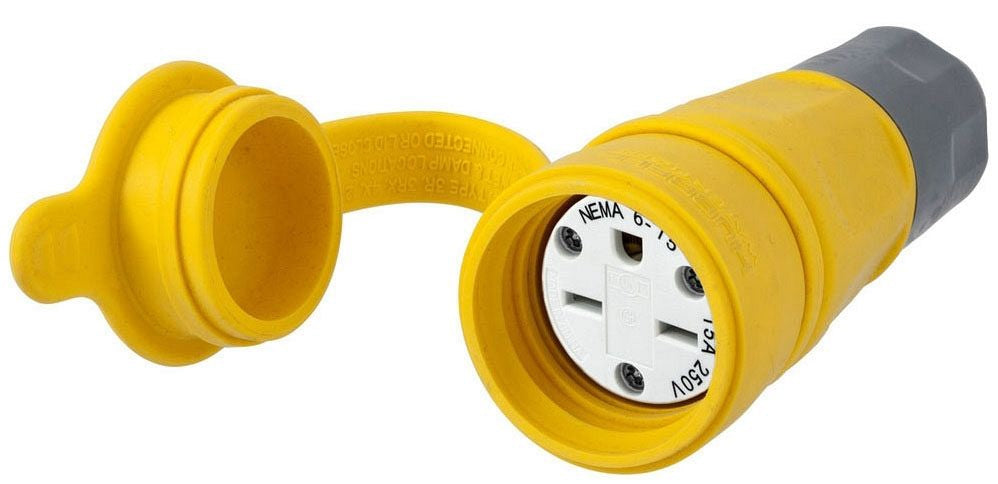

Hubbell HBL15W49 Conn, W/Tight, 15A, 250V

Product Description

The Hubbell HBL15W49 is a straight blade connector designed for watertight applications. This device is rated for 250 VAC and 15 A, making it suitable for various commercial and industrial settings. It features a female standard-sized cord mount and is equipped with a durable NEMA 4/4X/12/IP65/IP66/IP67 enclosure.

• Suitable for cords with a diameter of three-eighths to five-eighths inches.
• Operates in temperatures ranging from negative forty to seventy-five degrees Celsius.
• Constructed with elastomer and composite materials for durability.

Product Highlights

The HBL15W49 connector provides a secure and watertight connection ideal for wet or harsh environments. It supports easy installation and maintenance with a screw terminal design, ensuring long-term reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Availability: Lead times are estimates only

Technical Specifications

• Amperage Rating: 15 A
• Color: Yellow
• Cord Diameter: 3/8 to 5/8 in
• Dimensions: 1.85 in diameter x 4.42 in length
• Enclosure: NEMA 4/4X/12/IP65/IP66/IP67
• Grade: Commercial/Industrial
• Manufacturer Part Number: HBL15W49
• Material: Elastomer/Composite
• NEMA Rating: 6-15R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, UL 498, CSA Certified
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Female Standard Sized Watertight Cord Mount
• Voltage Rating: 250 VAC
