Product Description

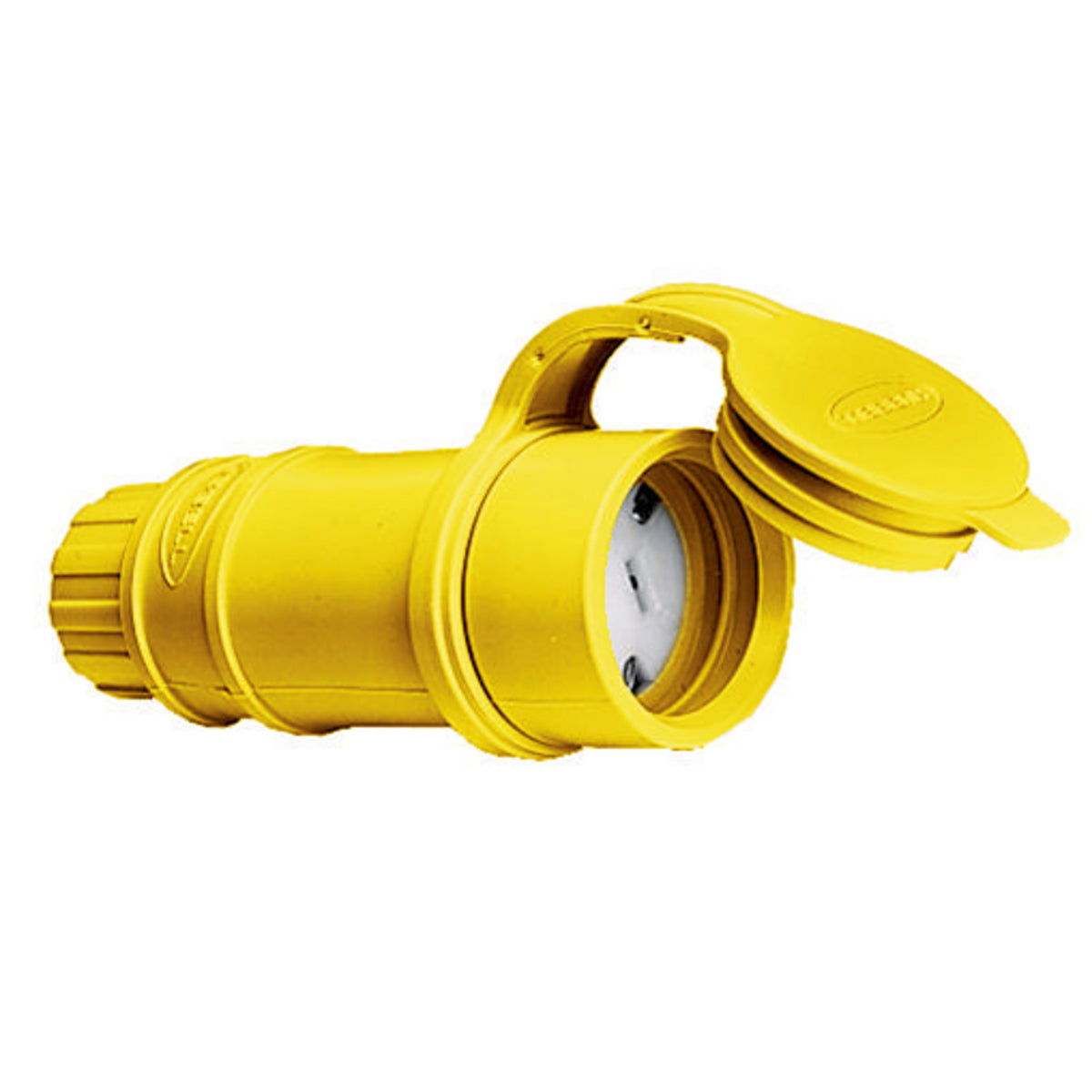

The Hubbell HBL15W47 is a female grounding insulated watertight cord mount straight blade connector. It is rated for 15 amperes and operates at 125 volts AC. This connector is suitable for use in commercial and industrial environments. The product features an IP20 enclosure and is compatible with cords having a diameter from 0.3 to 0.655 inches.
- Rated for 15 amperes at 125 volts AC.
- Compatible with cords having diameters of 0.3 to 0.655 inches.
- Meets NEMA 5-15R configuration.
Product Highlights
This product is designed for reliable connections in wet or outdoor conditions. Its thermoplastic elastomer housing ensures durability. Additionally, it features an integral weatherproofing shroud that seals the connection between the plug and connector.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501302
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 125 VAC
-
Horsepower: 1/2 hp
-
Number of Poles: 2
-
Number of Wires: 3
-
Cord Diameter: 0.3 to 0.655 in
-
Dimensions: 4.03 x 1.76 x 4.03 in
-
Enclosure: IP20
-
Material: Composite
-
NEMA Rating: 5-15R
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Screw
-
Standards/Approvals: UL 498, CSA C22.2 No. 42, NEMA WD1/WD5 WD6
