Product Description

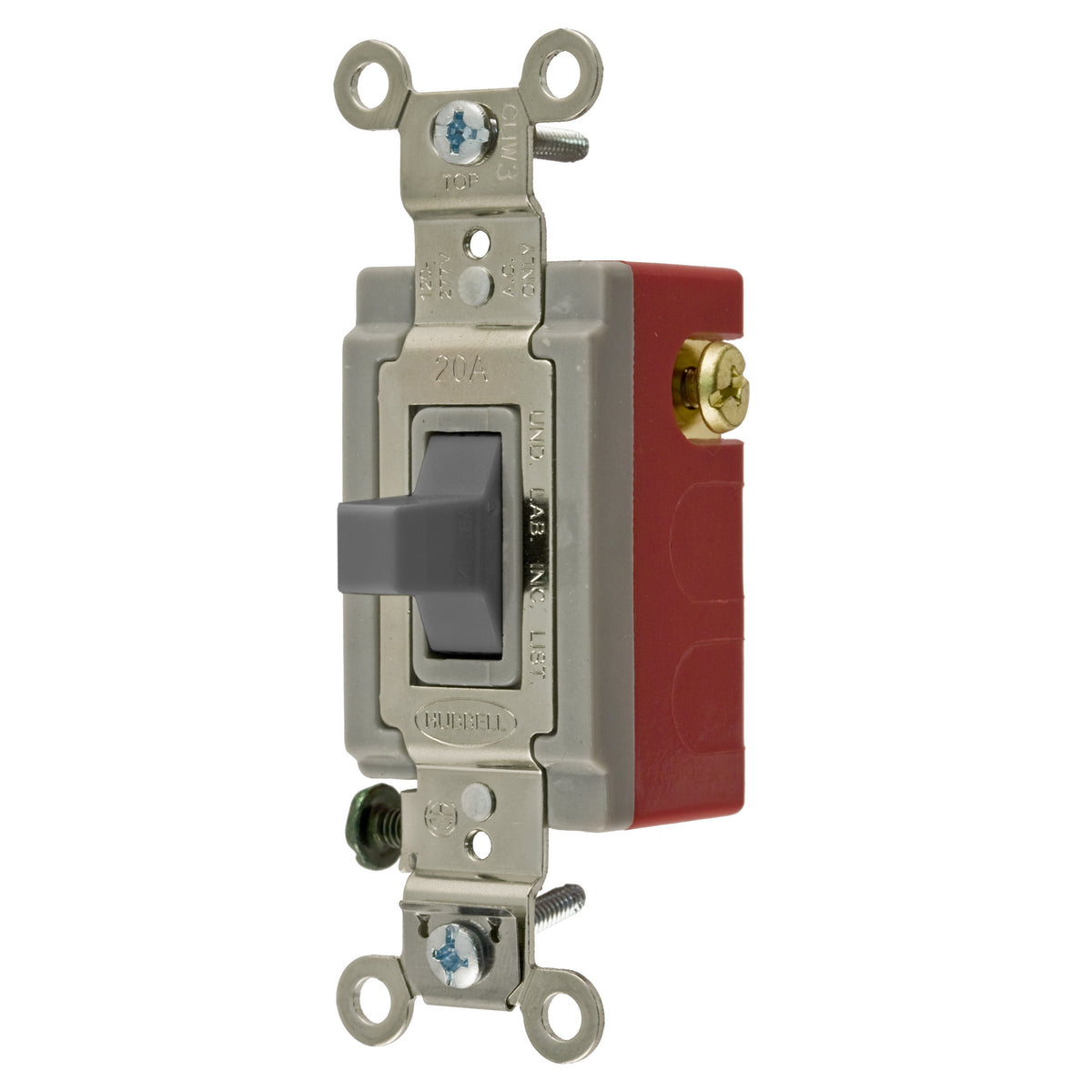

The Hubbell HBL1557GY is a three-position toggle switch designed for heavy-duty industrial use. This switch operates at a voltage range of 120 to 277 VAC and supports a maximum current of twenty amps. It features a momentary contact configuration and is suitable for general purpose AC and indoor applications.
- Operating temperature range from minus forty to seventy-five degrees Celsius.
- Durable thermoset material ensures long-lasting performance.
- Threaded mounting design for easy installation.
Product Highlights
This switch is engineered for reliability and safety in demanding environments. It provides a robust solution for various electrical applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358543284
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 20 A
-
Application: General Purpose AC and Indoor Applications
-
Color: Gray
-
Contact Configuration: Momentary
-
Dimensions: 4.06 x 1.31 x 1.89 inches
-
Environmental Conditions: -40 to 75 deg C
-
Material: Thermoset
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 50,000 cycles
-
Power Rating: 5540 W
-
Series: HBL
-
Standards/Approvals: CSA Certified, Federal Specification WS896, NEMA WD1, UL 20, UL94 V-2 Flammability Rating
-
Terminal Type: Screw
-
Voltage Rating: 120 to 277 VAC
