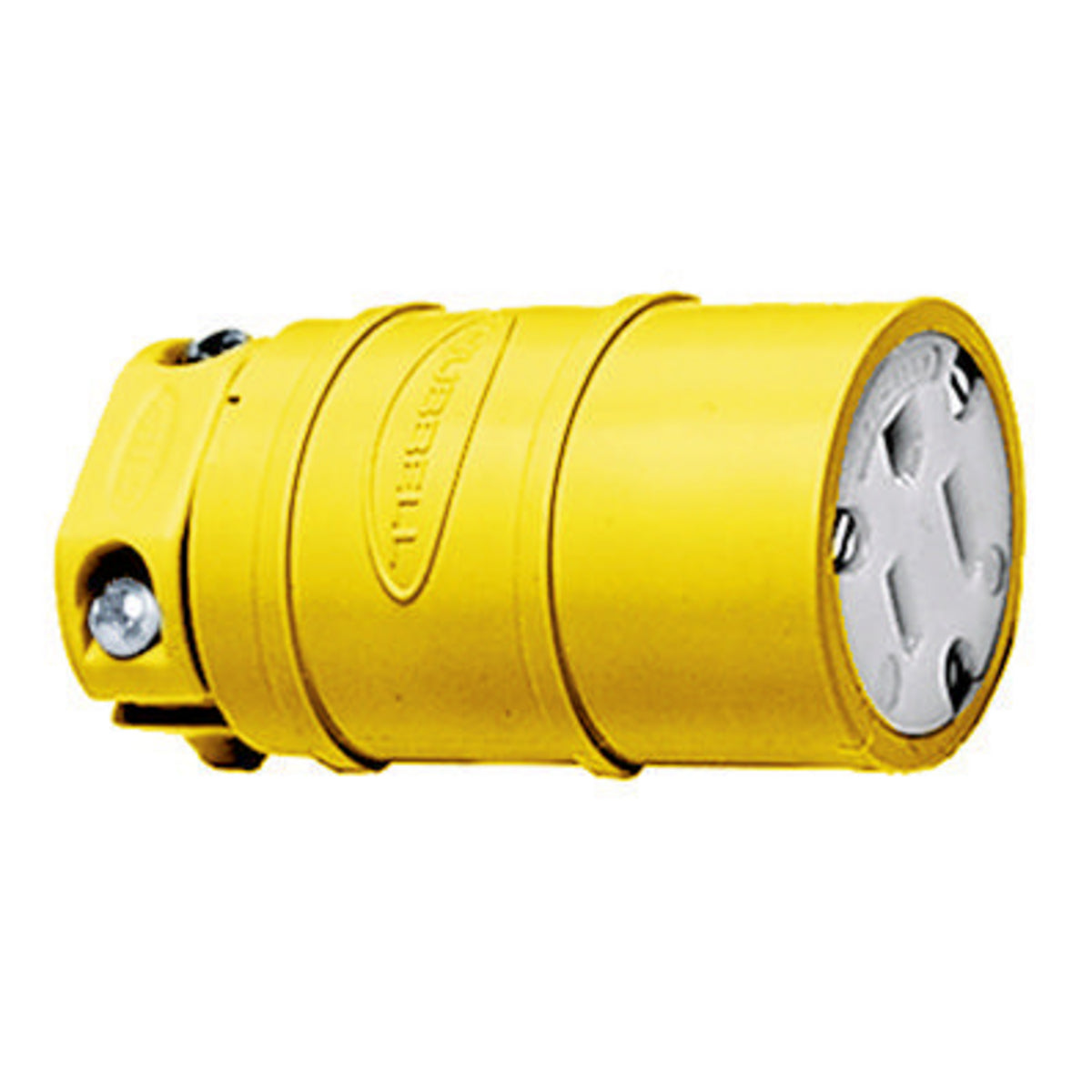

Hubbell HBL1547 HUB 2P-3W-15A-125VAC YLW CONN ELASTOGRIP

Product Description

The Hubbell HBL1547 is a dusttight female grounding standard cord mount connector. It is designed for use in commercial and industrial applications where reliable electrical connections are necessary. This connector supports a voltage rating of one hundred twenty-five volts and an amperage rating of fifteen amps. The elastogrip design ensures a strong seal against dust and moisture, making it suitable for challenging environments.

• Two pole, three wire design
• Enclosure rated IP20
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This connector features a thermoplastic elastomer housing and a screw terminal setup. The compact size and compatibility with standard electrical systems make it a practical choice for various wiring needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL1547

Technical Specifications

• Amperage Rating: 15 A
• Application: Commercial, Industrial and Indoor Dry Environment Applications
• Color: Yellow
• Dimensions: 3 inches x 1.61 inches x 3 inches
• Enclosure: IP20
• Grade: Industrial/Commercial
• Material: Composite
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Voltage Rating: 125 VAC
