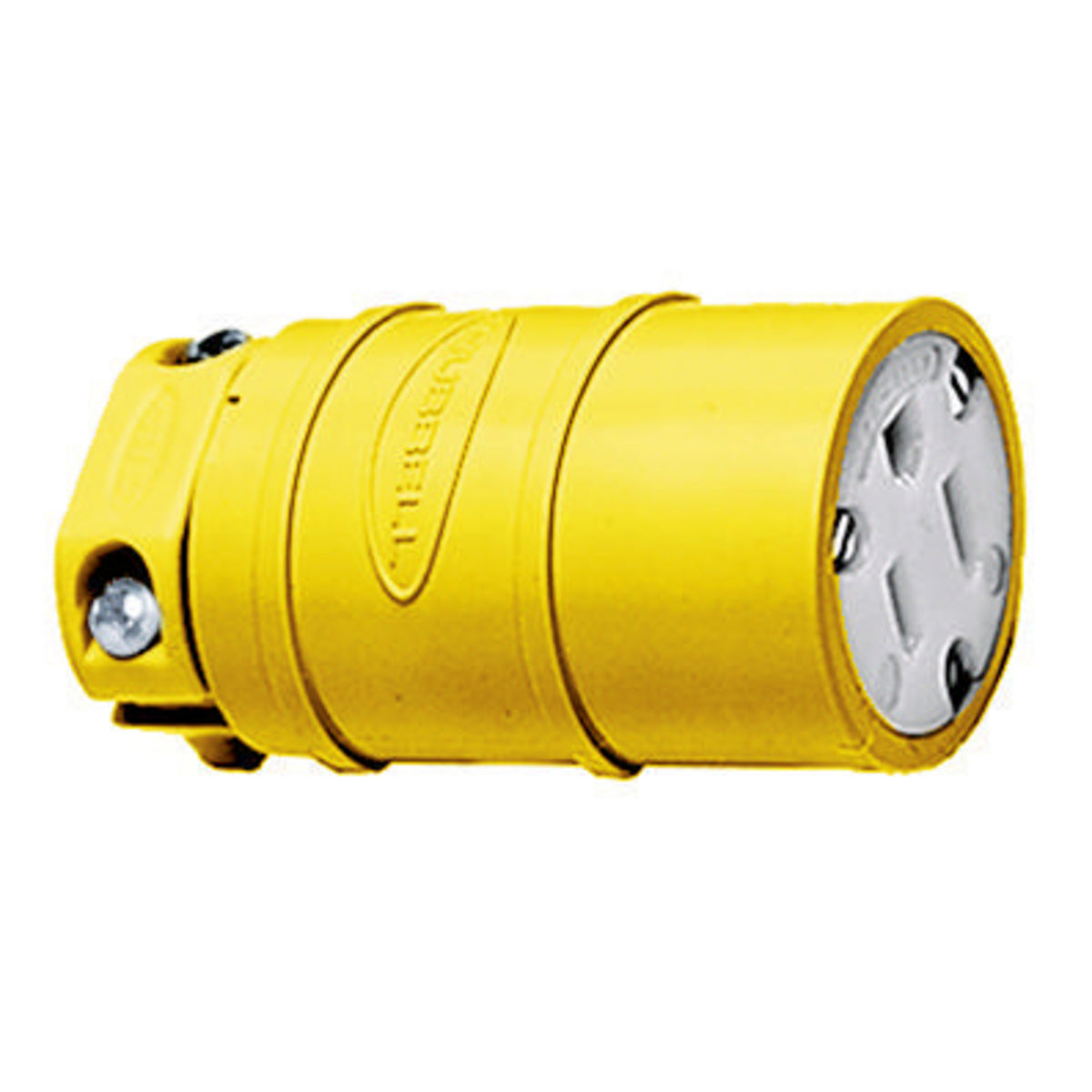

Hubbell HBL1547 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Straight Blade Connector

Product Description

The Hubbell HBL1547 is a 15 Amp, 125 Volt, 2-Pole, 3-Wire NEMA 5-15R connector. This yellow straight blade connector is designed for industrial and commercial use. It features a female connector body that is dust-tight and equipped with Elasto-Grip technology for added durability.

• Rated for 15 Amps and 125 Volts
• Compatible with 18-12 AWG wire sizes
• Ideal for indoor dry applications unless additional protection is provided

Product Highlights

This connector ensures reliable performance in various applications with its thermoplastic elastomer housing that protects against dust and moisture.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Material: Thermoplastic

Technical Specifications

• Current Rating: 15 Amp
• Voltage Rating: 125 Volt
• NEMA Rating: 5-15R

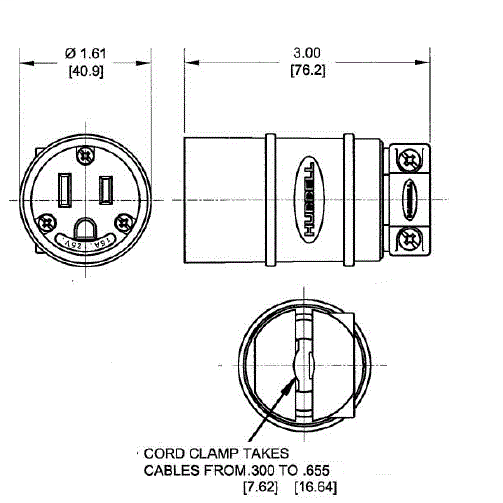

• Dimensions: 1.9 inches (Width) x 3 inches (Height) x 3 inches (Length)
• Weight: 0.2 lb
• Application: Industrial/Commercial
• Connection Type: Screw Terminal
• Operating Temperature: -40 to 75 degrees C
