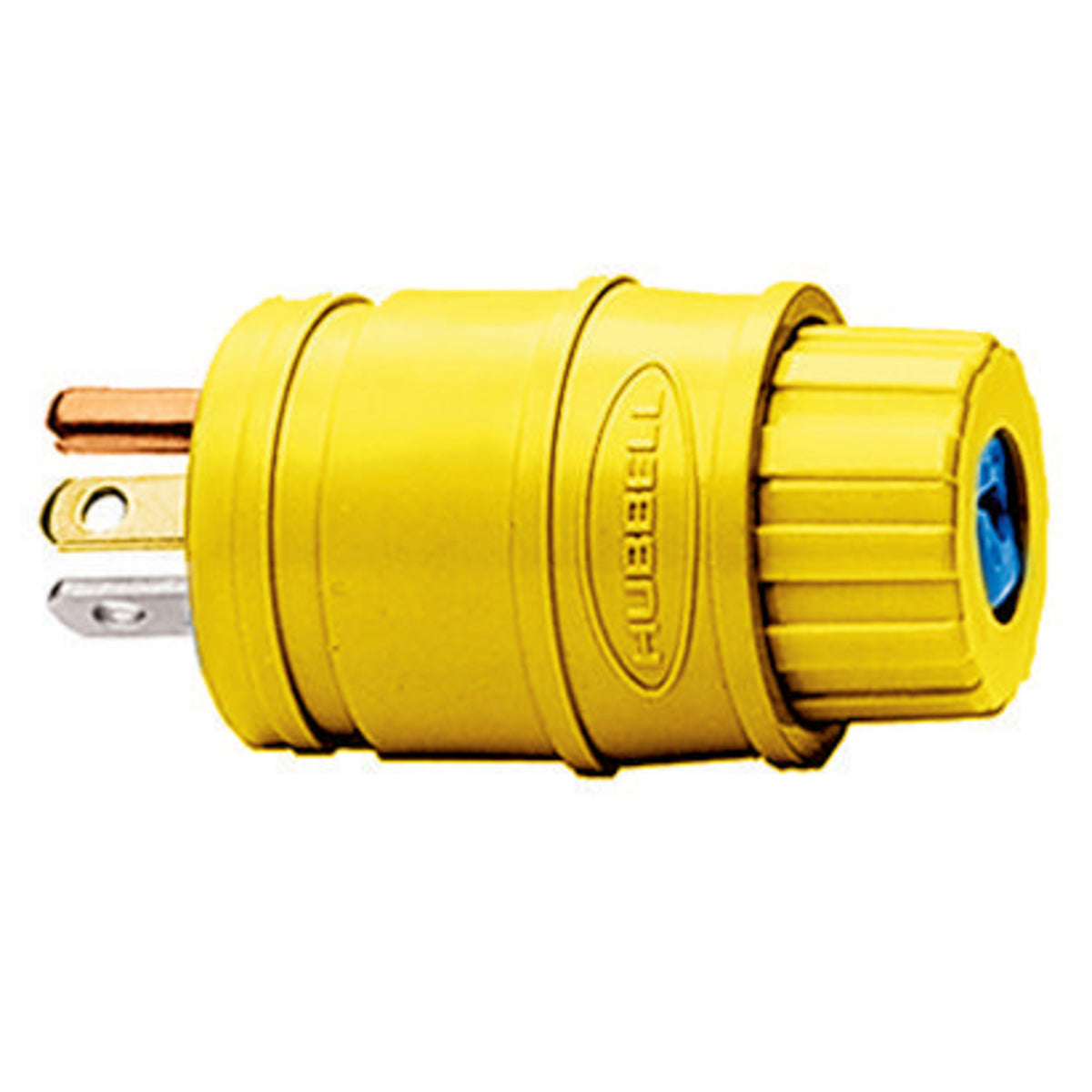

Hubbell HBL14W33 Hub 20A 125VAC Watertite Plug

Product Description

The Hubbell HBL14W33 is a watertight plug designed for reliable electrical connections. This straight blade plug is suitable for use in demanding environments requiring durability and moisture resistance.

• Rated for 20 amps at 125 VAC
• Compliant with NEMA 5-20P specifications
• Features a weatherproof design for outdoor and industrial use

Product Highlights

This plug is ideal for commercial and industrial applications where watertight connections are essential.

Product Information

Standard Information

• Brand: Hubbell
• MPN: HBL14W33

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• NEMA Rating: 5-20P
• Horsepower: 1/2 hp
• Enclosure: IP55
• Color: Yellow
• Material: Polycarbonate
• Temperature Rating: -40 to 75 deg C
• Dimensions: 2.67 x 1.55 x 2.67 inches
• Cord Diameter: 0.3 to 0.655 inches
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: UL 498, File No. E1706 Listed | UL 94-HB | CSA C22.2 No. 42, 280
• Terminal Type: Screw
