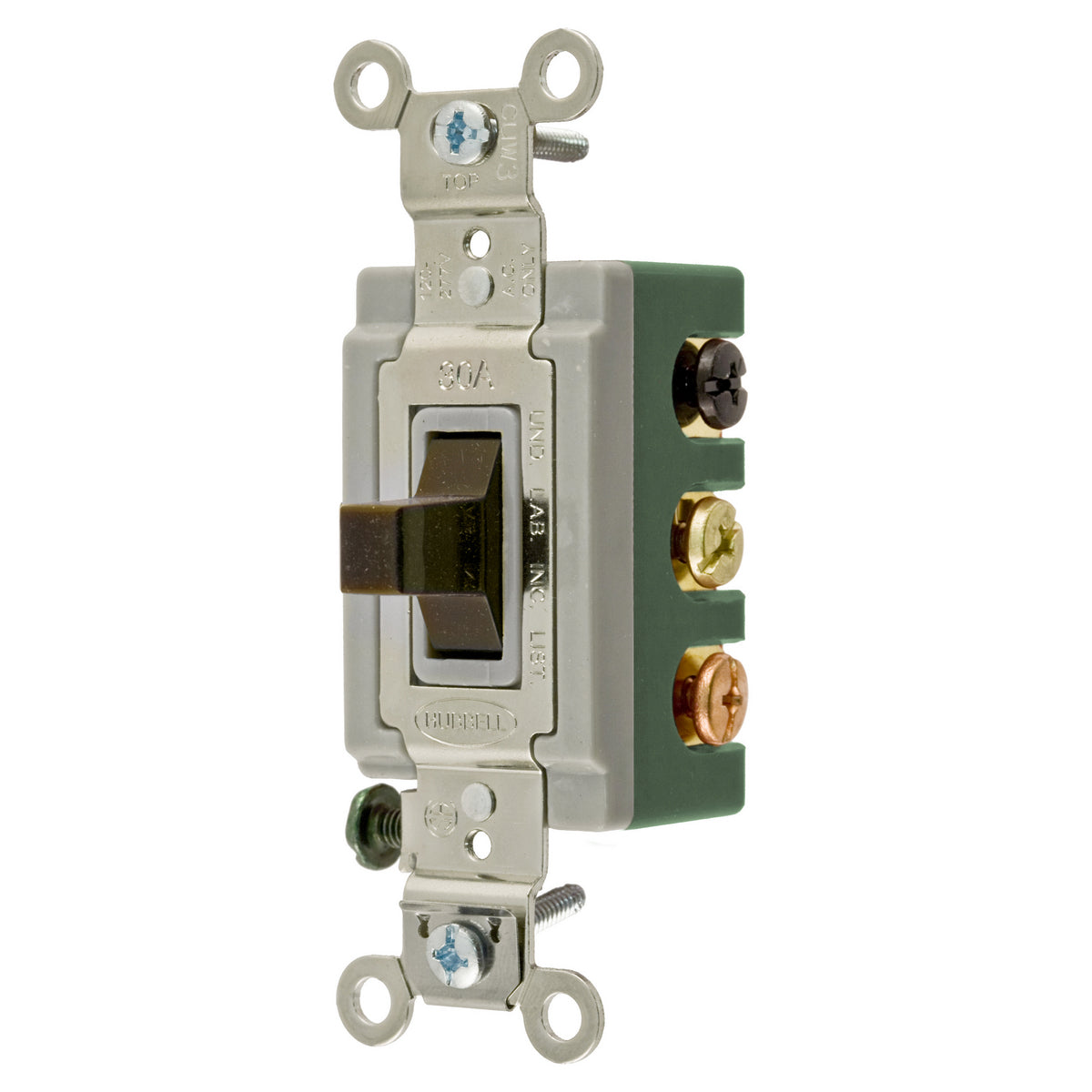

Hubbell HBL1388 Hub DPDT 30A-277V Motor Switch

Product Description

The Hubbell HBL1388 is a Double Throw Extra Heavy Duty General Purpose Standard Toggle Switch. It is designed for use in industrial applications and can handle voltages from one hundred twenty to two hundred seventy-seven VAC. This motor switch is rated at thirty amps and can manage power up to four thousand one hundred fifty-five watts. The switch features a three-position center-off contact configuration and is made of durable thermoset material to withstand a wide range of environmental conditions.

• Two poles for reliable operation
• Threaded mounting for secure installation
• Back and side wire terminal for easy wiring

Product Highlights

The Hubbell HBL1388 motor switch is built to perform under demanding conditions, making it ideal for tough industrial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358543270

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 30 A
• Application: Industrial Applications and Indoor Dry Environment
• Color: Brown
• Contact Configuration: 3-Position Center Off
• Dimensions: 4.06 x 1.31 x 1.89 inches
• Environmental Conditions: -40 to 75 deg C
• Manufacturer Part Number: HBL1388
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Power Rating: 4155 W
• Standards/Approvals: CSA Certified, UL94 V-2 Flammability Rating, UL 20, Federal Specification W-S-896
• Terminal Type: Back/Side Wire
• Type: Double Throw Extra Heavy Duty General Purpose Standard
• Voltage Rating: 120 to 277 VAC
