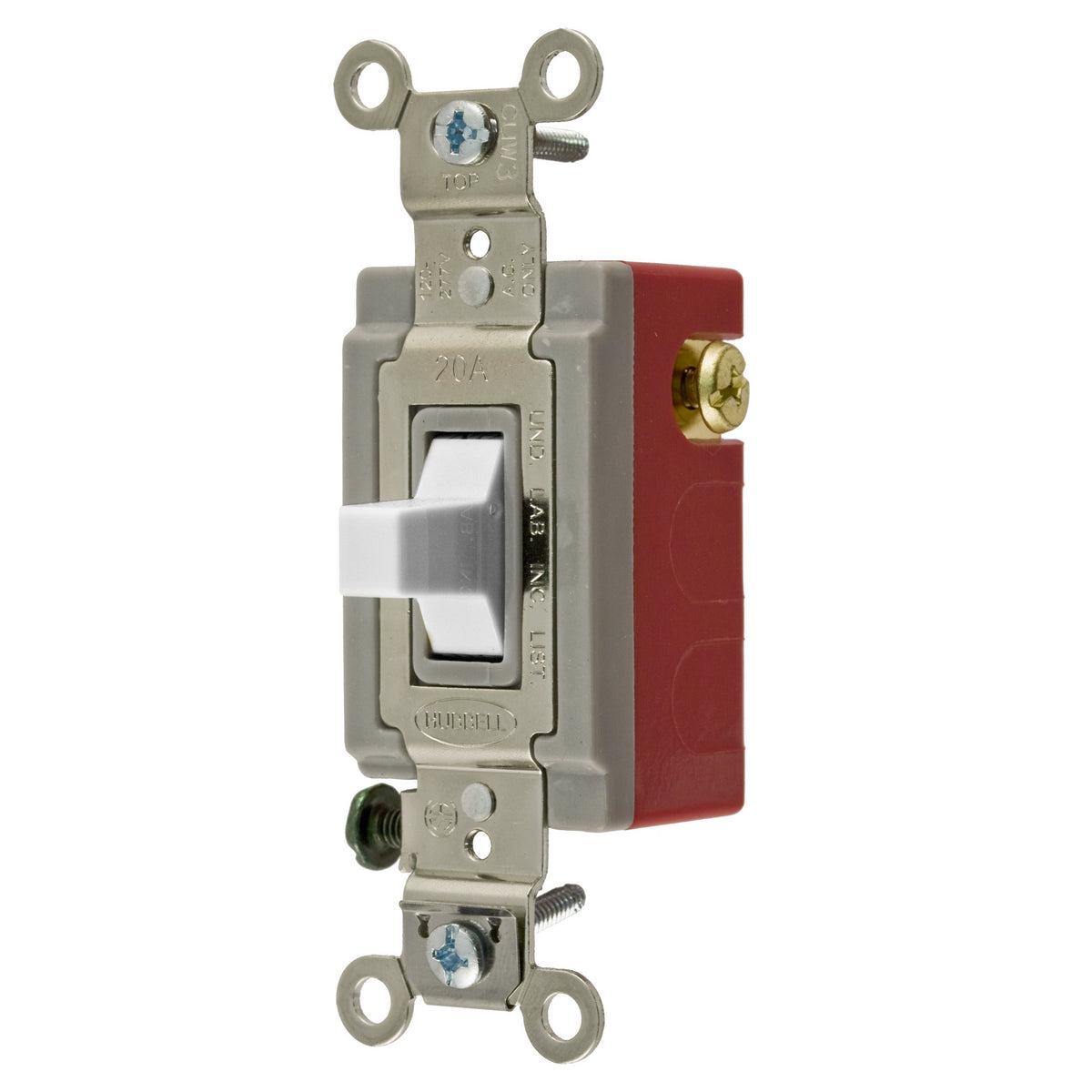

Hubbell HBL1385W 20 Amp 120/277 VAC SPDT White Toggle Switch

Product Description

The Hubbell HBL1385W is a 20 Amp toggle switch designed for controlling lighting in various applications. It operates at a voltage of 120 to 277 VAC, making it suitable for multiple environments. This switch features a single pole double throw mechanism with a center off setting. It is essential for heavy-duty industrial use and is back and side wired.

• Rated for 20 Amps and operates at voltages ranging from 120 to 277 VAC.
• Utilizes a toggle actuator for user-friendly operation.
• Constructed from durable thermoset material, suitable for industrial applications.

Product Highlights

This switch has a robust design that withstands demanding environments and ensures reliable performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: General Purpose, 3-Position Center Off

Technical Specifications

• Current: 20 Amp
• Voltage: 120-277 Volt
• Wattage: 5540 Watt
• Actuator: Toggle
• Material: Thermoset

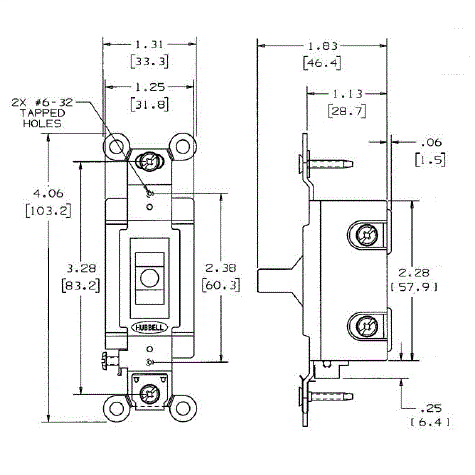

• Width: 1.900 inches
• Height: 1.89 inches
• Length: 4.06 inches
• Weight: 0.25 lbs
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry unless protected
• Applications: Extra Heavy Duty Industrial
