Hubbell HBL1385 HUB SPDT BRN SW WAS 1385HUB

Product Description

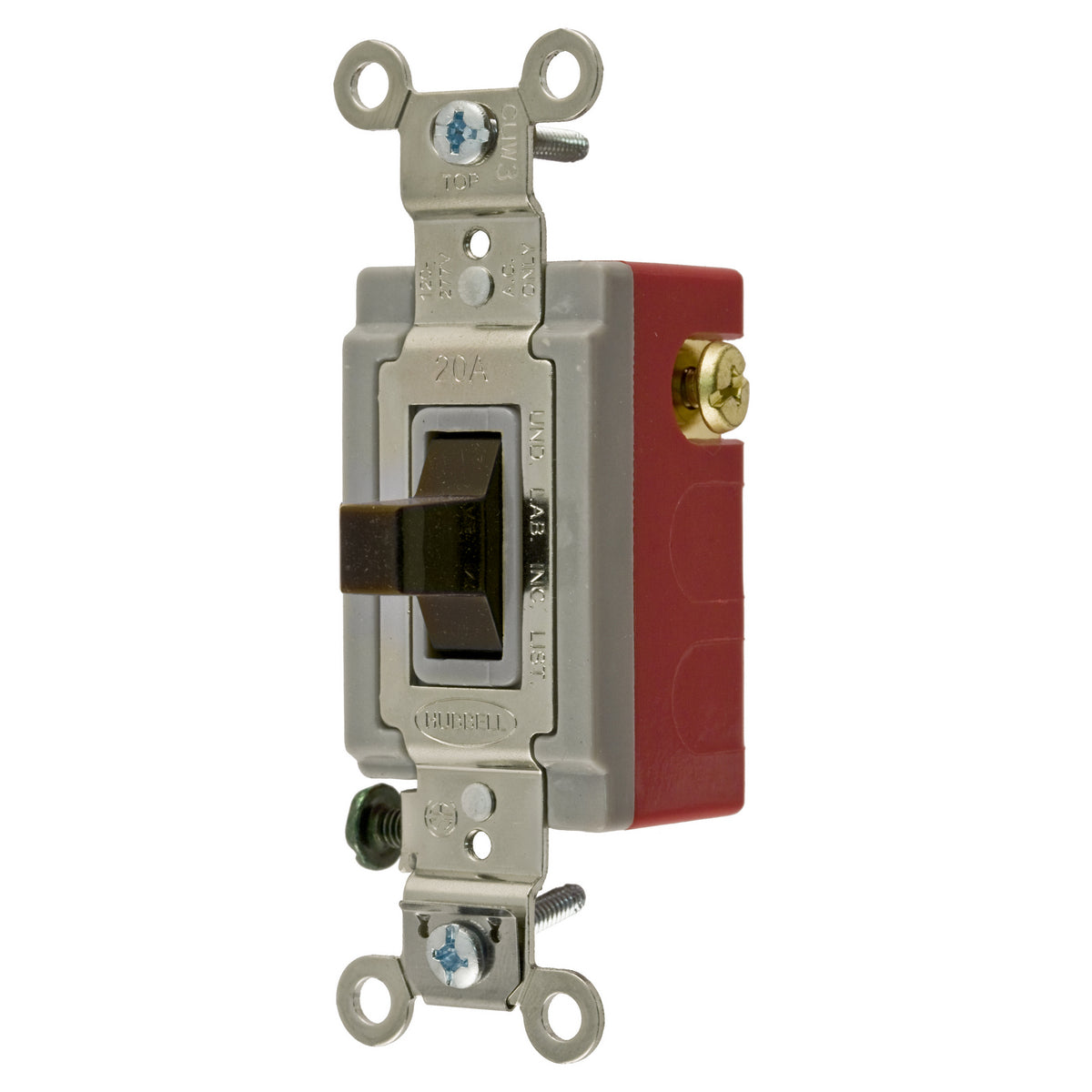

The Hubbell HBL1385 is a wiring device designed for heavy-duty applications. This toggle switch operates at 120 to 277 VAC and is rated for 20 amps, with a power rating of 5540 watts. It features a three-position center-off contact configuration and is built for both general purpose AC and indoor applications.

• Unique back and side wire terminal capabilities
• Durable thermoset and high-impact resistant thermoplastic construction
• Rated for 50,000 operating cycles for extended use

Product Highlights

This switch is engineered for reliability in industrial environments. It contains a prominent amperage marking, allowing for easy identification. The threaded mounting option ensures secure installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358543260

Technical Specifications

• Actuator: Toggle
• Application: General Purpose AC and Indoor Applications
• Color: Brown
• Contact Configuration: 3-Position Center Off
• Dimensions: 4.06 x 1.31 x 1.89 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50,000 cycles
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Standards/Approvals: CSA Certified, Federal Specification WS896, NEMA WD1, UL 20
• Terminal Type: Back/Side Wire
