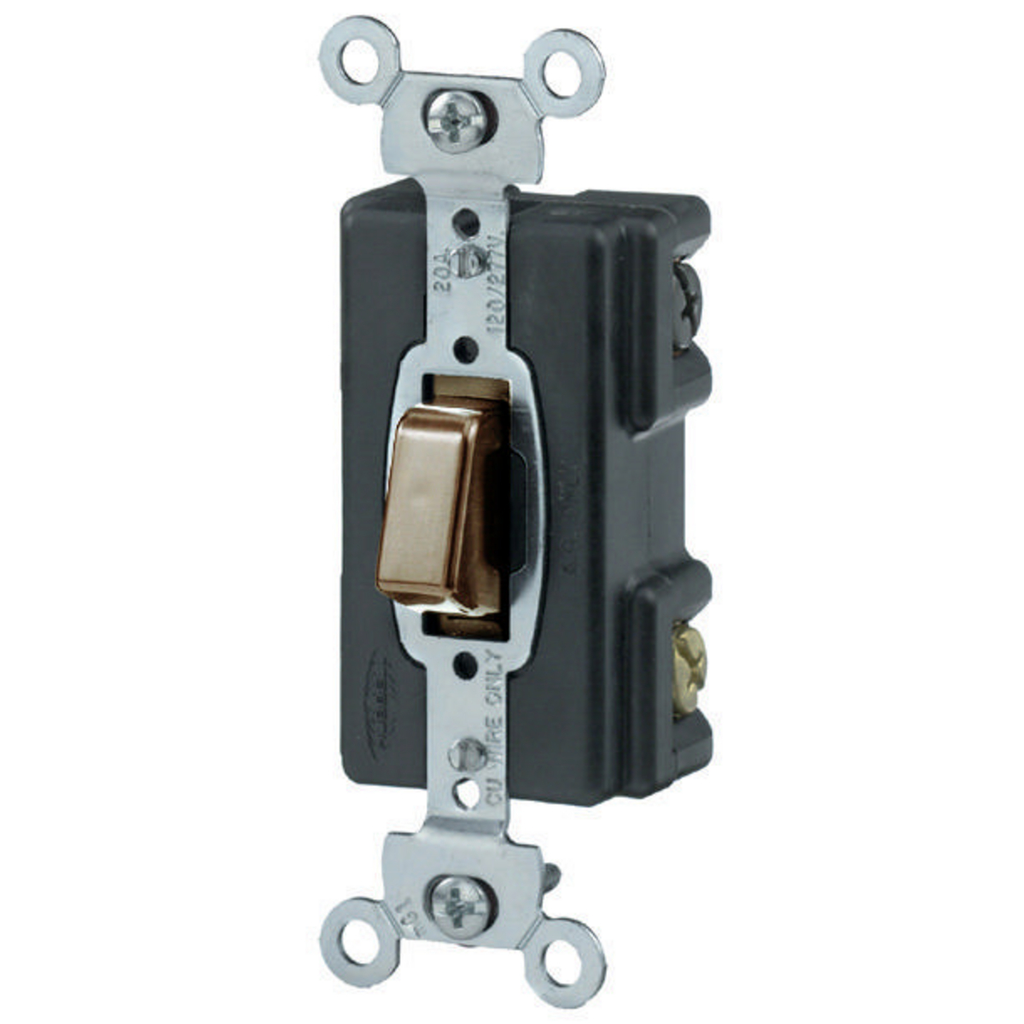

Hubbell HBL1281 20 Amp 120/277 VAC 1-Pole Brown Toggle Switch

Product Description

The Hubbell HBL1281 is a 20 Amp toggle switch designed for use with 120/277 Volt systems. This industrial-grade switch is suitable for general-purpose AC applications and features screw terminals for easy connection. Its single pole design allows for simple on/off operation.

• Rated for 20 Amps
• Voltage compatibility: 120/277 VAC
• Made from thermoplastic material

Product Highlights

The Hubbell HBL1281 provides reliable performance for a variety of applications, especially in industrial settings where durability is essential.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: PresSwitch

Technical Specifications

• MPN: HBL1281
• Current Rating: 20 Amp
• Voltage Range: 120-277 Volt
• Wattage: 5540 Watt

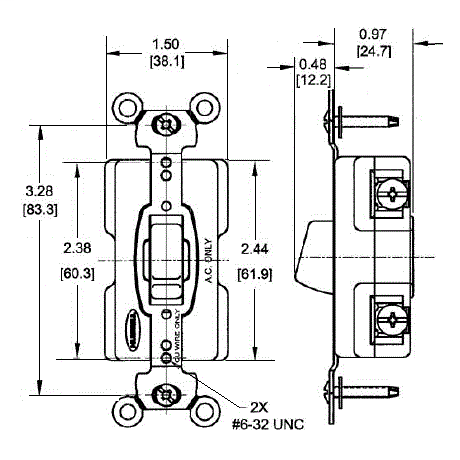

• Width: 1.9 inches
• Height: 1.45 inches
• Length: 3.28 inches
• Weight: 0.2 lb
• Material: Thermoplastic
• Operating Temperature: -40 degrees C
• Grade: Industrial
• Style: Single Pole
• Amperage: 20 Amp
• Wire Size: 14-10 AWG
• Operating Cycles: 10000
• Environmental Conditions: Indoor Dry unless protected by additional means
