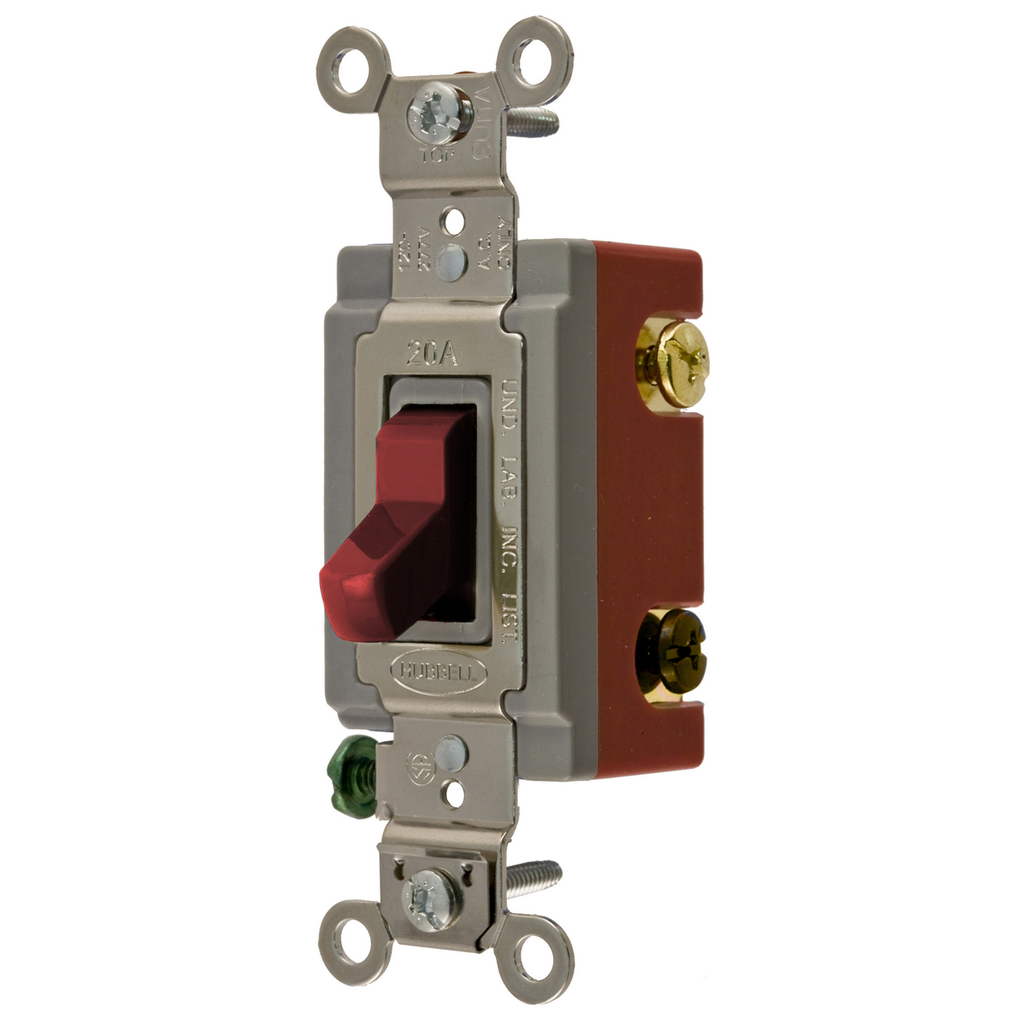

Hubbell HBL1223R 20 Amp 120/277 VAC 3-Way Red Toggle Switch

Product Description

The Hubbell HBL1223R is a 20 Amp, 120/277 Volt 3-way toggle switch. This switch is designed for general purpose AC applications and provides reliable control for lighting and other devices. It features both back and side wiring options for flexibility in installation.

• Rated for 20 Amps and compatible with 120 to 277 Volts.
• Constructed from thermoplastic material for durability.
• Designed for extra heavy-duty industrial environments.

Product Highlights

This switch is ideal for industrial and commercial use, offering robust performance in demanding settings. Its installation options provide versatility for different applications.

Product Information

Standard Information

• Catalog Number: HBL1223R
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt
• Action: Positive Snap
• Environment: Indoor Dry, unless protected

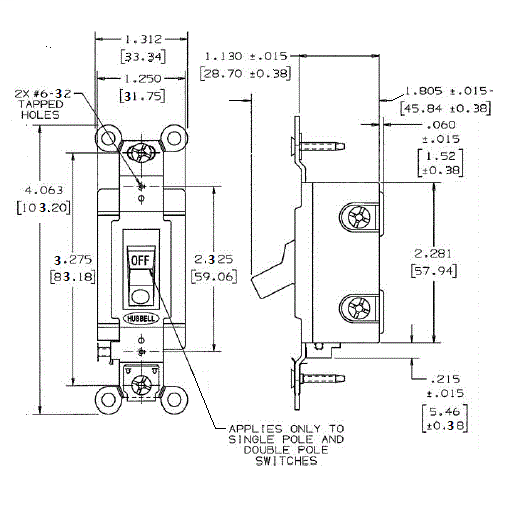

• Height: 1.87 inches
• Width: 1.9 inches
• Length: 4.06 inches
