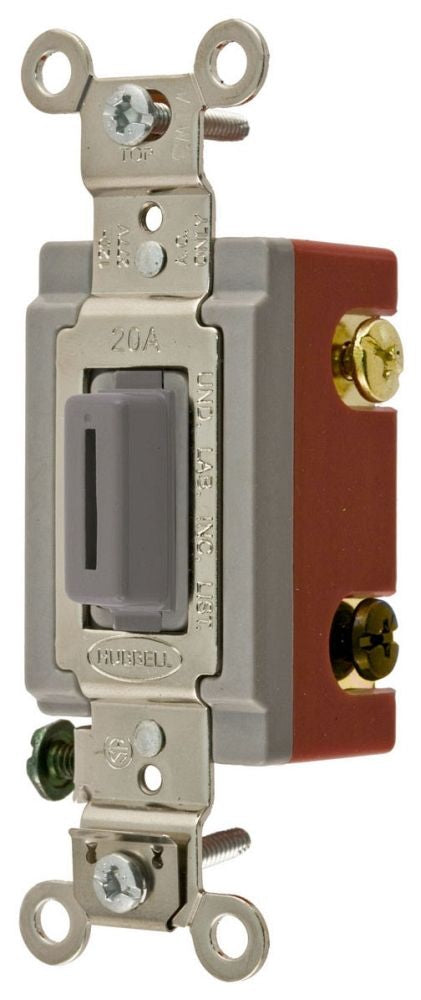

Hubbell HBL1223LG HUBBELL 3W TOG, IND GRD, 20A 120/277V, LK, GY

Product Description

The Hubbell HBL1223LG is a 3-way extra heavy-duty industrial grade locking standard AC keylock switch. This device operates at 120 to 277 volts with a power rating of 5540 watts and a current capacity of 20 amps. It is designed for both inductive and resistive load applications and features a double-ended key actuator for secure operation.

• Inductive or resistive load support
• Non-cylindrical lock for added security
• Environmental rating from negative forty to seventy-five degrees Celsius

Product Highlights

Application-grade switch ideal for industrial settings, ensuring reliable and safe operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358518863

Technical Specifications

• Actuator: Double Ended Key
• Amperage Rating: 20 A
• Application: General Purpose Applications
• Color: Gray
• Connection: Screw Terminal
• Contact Configuration: 2-Position
• Dimensions: 4.06 x 1.31 x 1.13 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Load: Inductive/Resistive
• Lock Type: Non-Cylindrical
• Material: Composite
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Standards/Approvals: UL 20 Listed, CSA Certified, Federal Specification WS896, UL94 V-2 Flammability Rating
• Type: 3-Way Extra Heavy Duty Industrial Grade Locking Standard
