Product Description

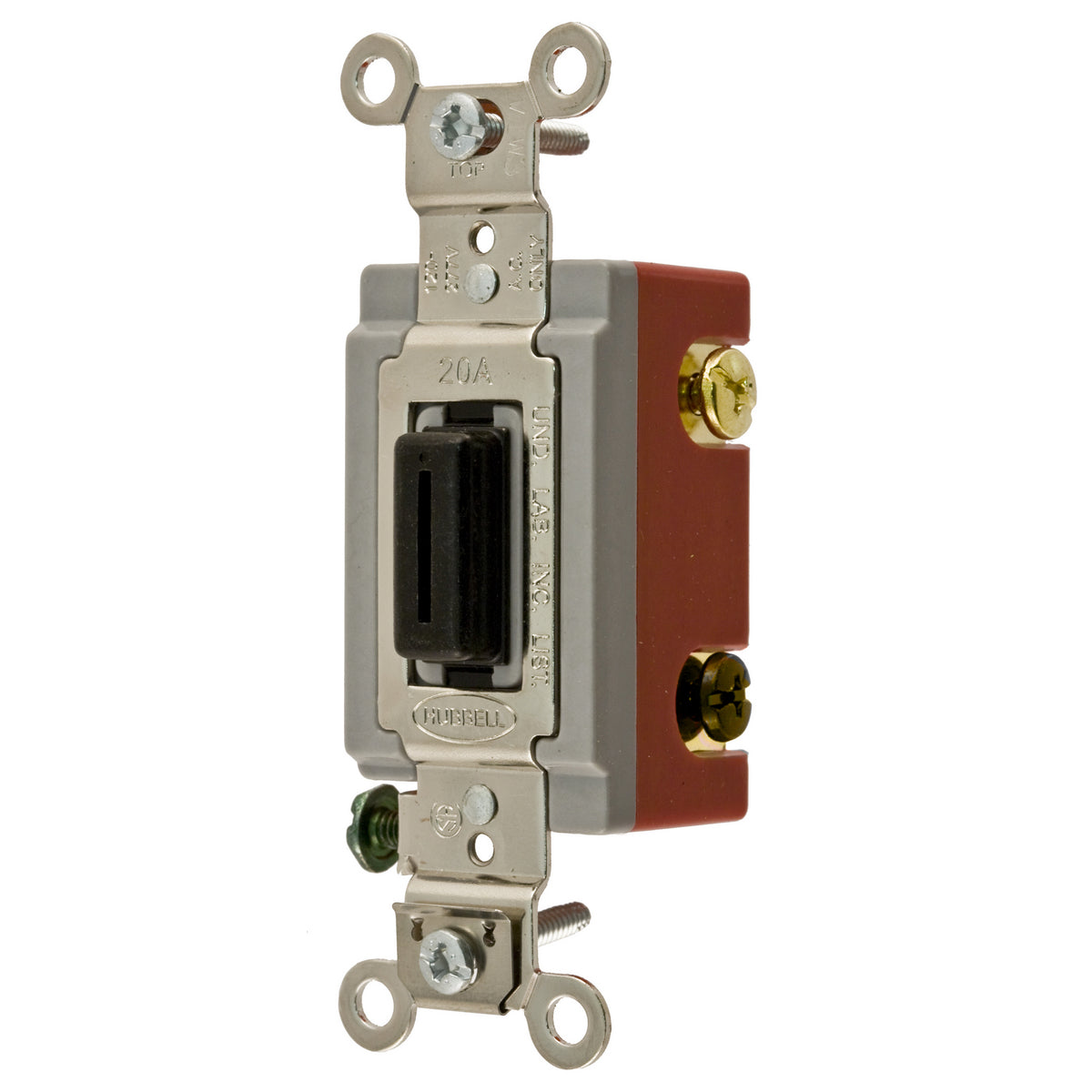

The Hubbell HBL1223L is a heavy-duty locking toggle switch designed for industrial use. It operates at 120 to 277 VAC and supports up to twenty amperes. The switch features a two-position contact configuration and is suitable for both inductive and resistive loads. This device is ideal for applications requiring reliable performance in challenging environments.
- Heavy-duty construction suitable for industrial applications
- Voltage rating of 120 to 277 VAC with 20 A capacity
- Designed for use with non-cylindrical locks
Product Highlights
The Hubbell HBL1223L is robust and rated for extreme temperatures from minus forty to seventy-five degrees Celsius.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358543188
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 120 to 277 VAC
-
Power Rating: 5540 W
-
Contact Configuration: 2-Position
-
Dimensions: 4.06 x 1.31 x 1.13 inches
-
Material: Composite
-
Environmental Conditions: -40 to 75 deg C
-
Actuator: Double Ended Key
-
Lock Type: Non-Cylindrical
-
Connection: Screw Terminal
-
Standards/Approvals: UL 20, CSA Certified, NEMA WD1
