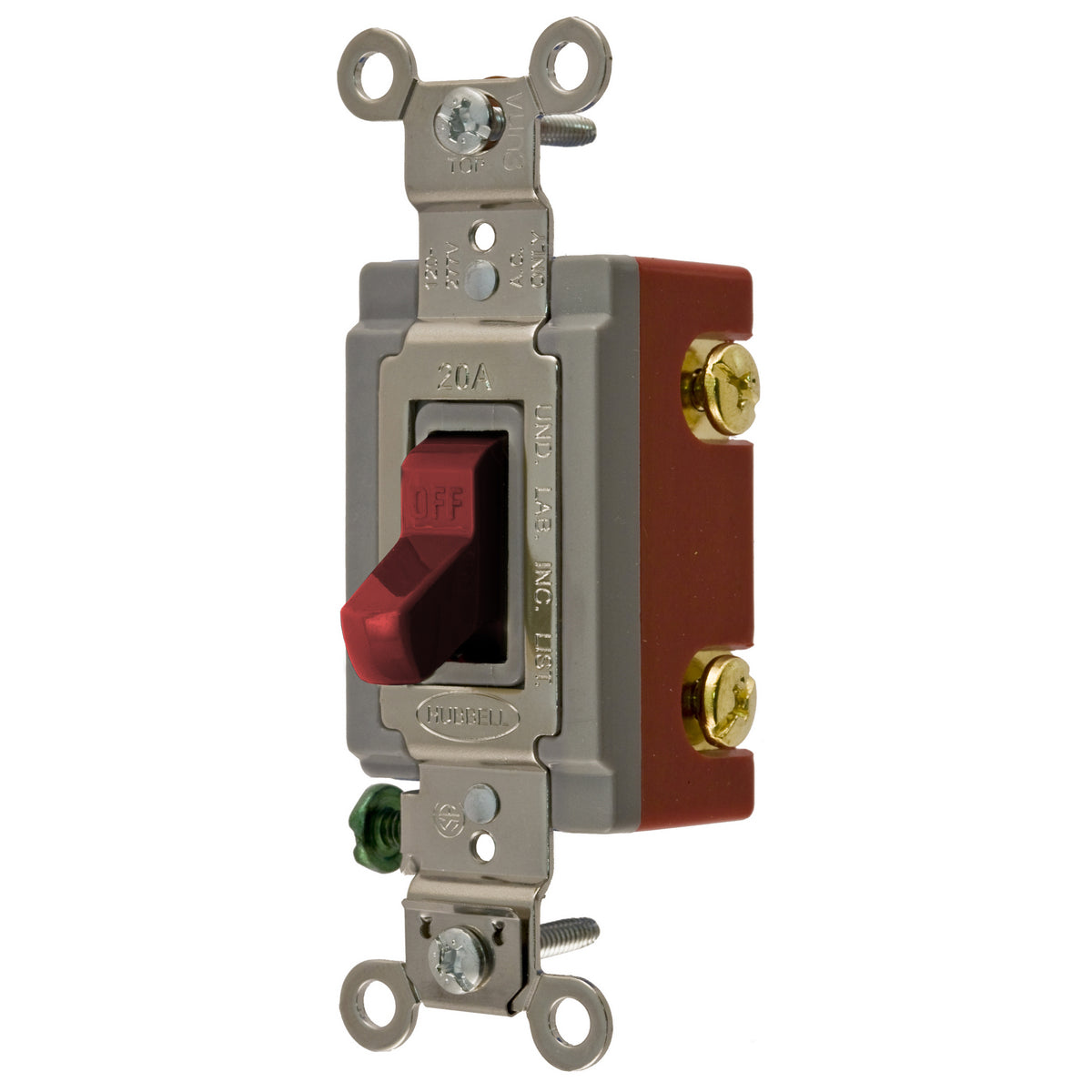

Hubbell HBL1221R 20A 120/277V SP Red Toggle Switch Extra Heavy Duty Industrial Series

Product Description

The Hubbell HBL1221R is a 20 Amp 120/277 Volt single pole red toggle switch designed for heavy duty industrial applications. This toggle switch is back and side wired, suitable for general purpose AC use. It is ideal for industrial environments requiring a reliable switching mechanism.

• Extra heavy duty design for industrial applications.
• Back and side wiring allows for flexible installation options.
• UL listed for safety standards compliance.

Product Highlights

This toggle switch features a durable design with strong electrical ratings suitable for various industrial tasks.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL1221R

Technical Specifications

• Catalog Number: HBL1221R
• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt
• Actuator: Toggle
• Material: Thermoplastic
• Color: Red
• Style: Single Pole
• Operating Cycles: 50000
