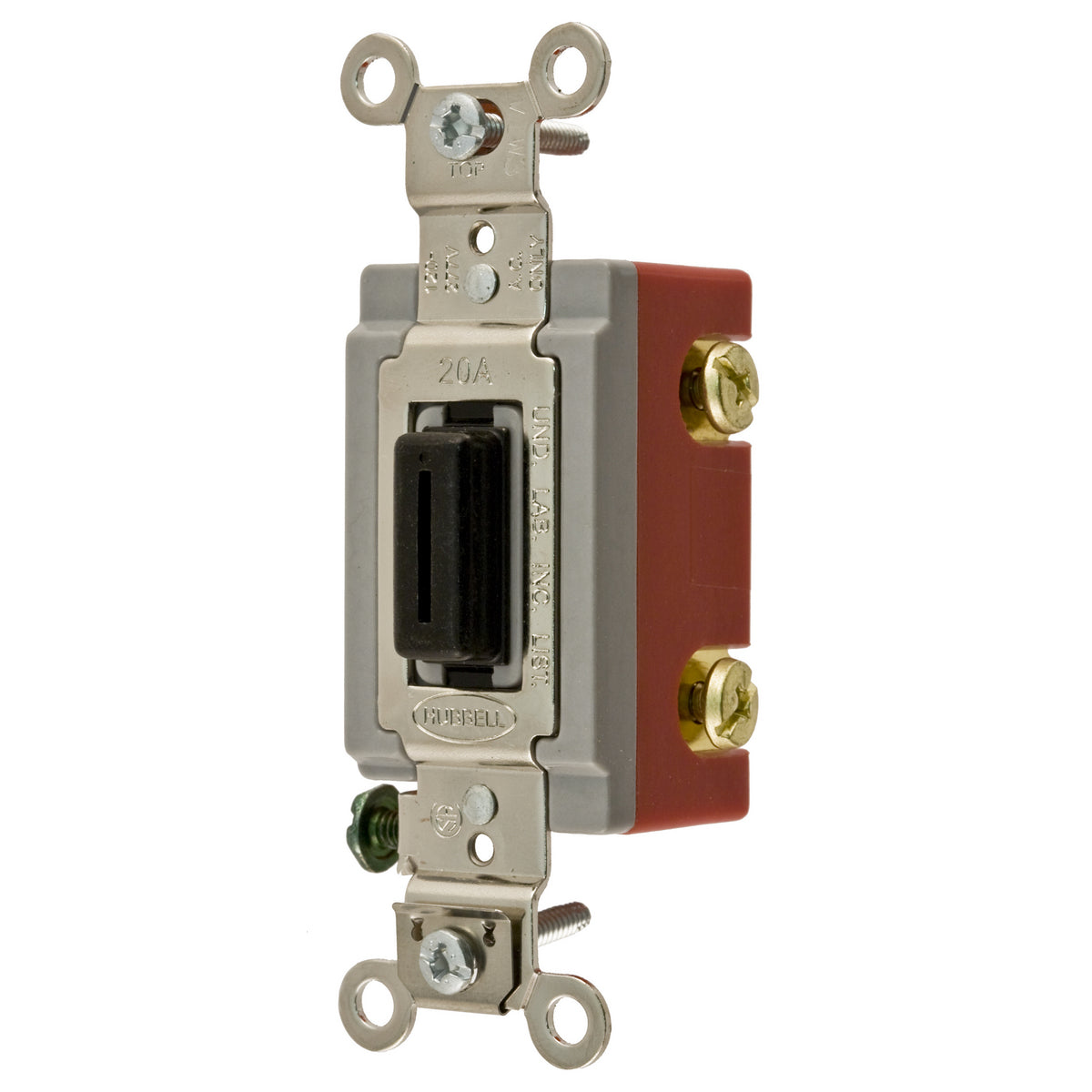

Hubbell HBL1221L HUB 20A SP LOCK SW

Product Description

The Hubbell HBL1221L is a locking switch designed for heavy-duty applications. It operates at 120 to 277 VAC with a current rating of 20 A, making it suitable for various industrial uses.

• High power rating of 5540 W
• Non-cylindrical lock with double-ended key actuator
• Durable composite material that withstands environmental conditions from negative forty to seventy-five degrees Celsius

Product Highlights

This switch is ideal for controlling power circuits safely and efficiently. It features a screw terminal connection for secure wiring.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358543144

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Number of Poles: 1
• Dimensions: 4.06 x 1.31 x 1.13 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Composite
• Application: Industrial Applications
• Lock Type: Non-Cylindrical
• Standards/Approvals: RoHS Compliant, CSA Certified, UL 20
