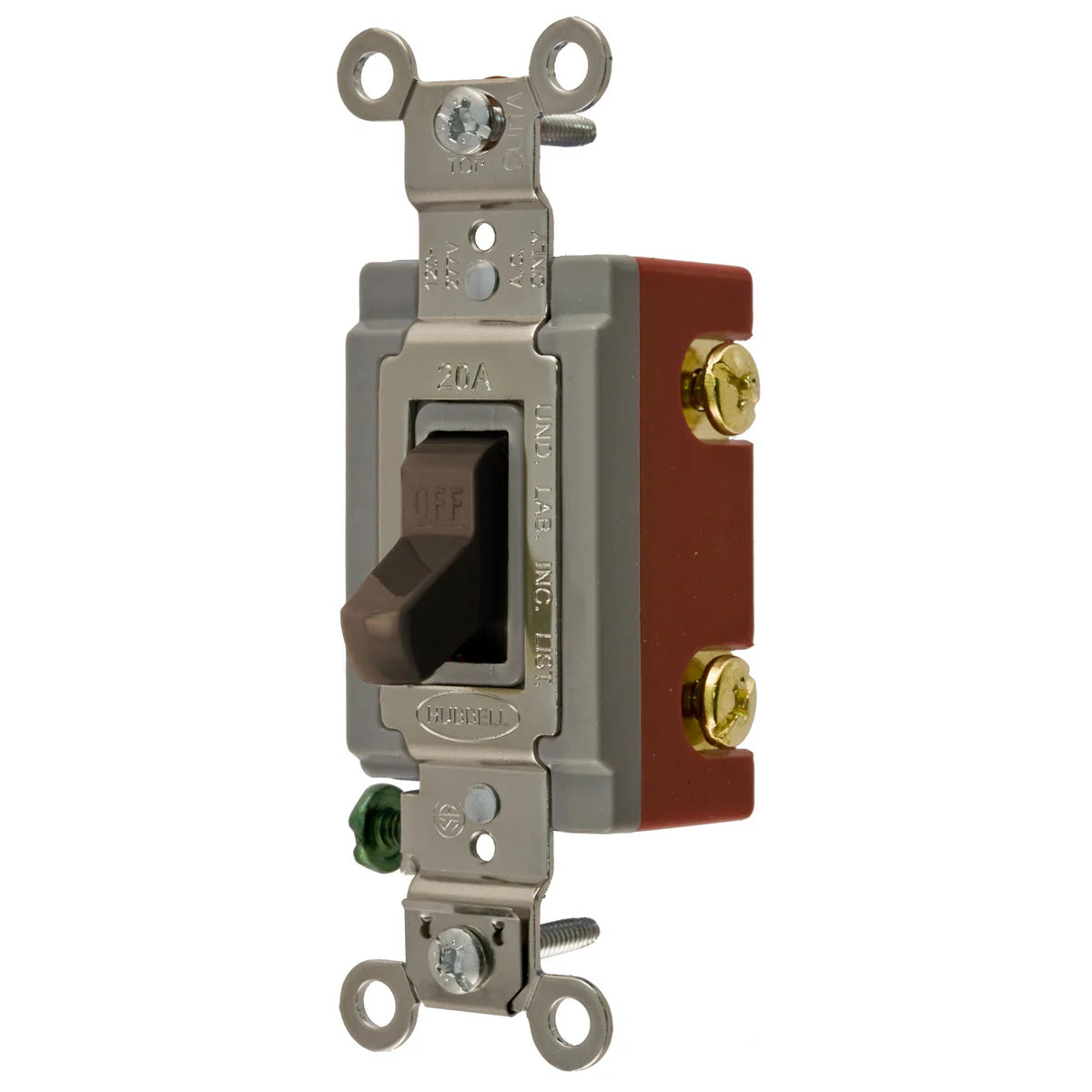

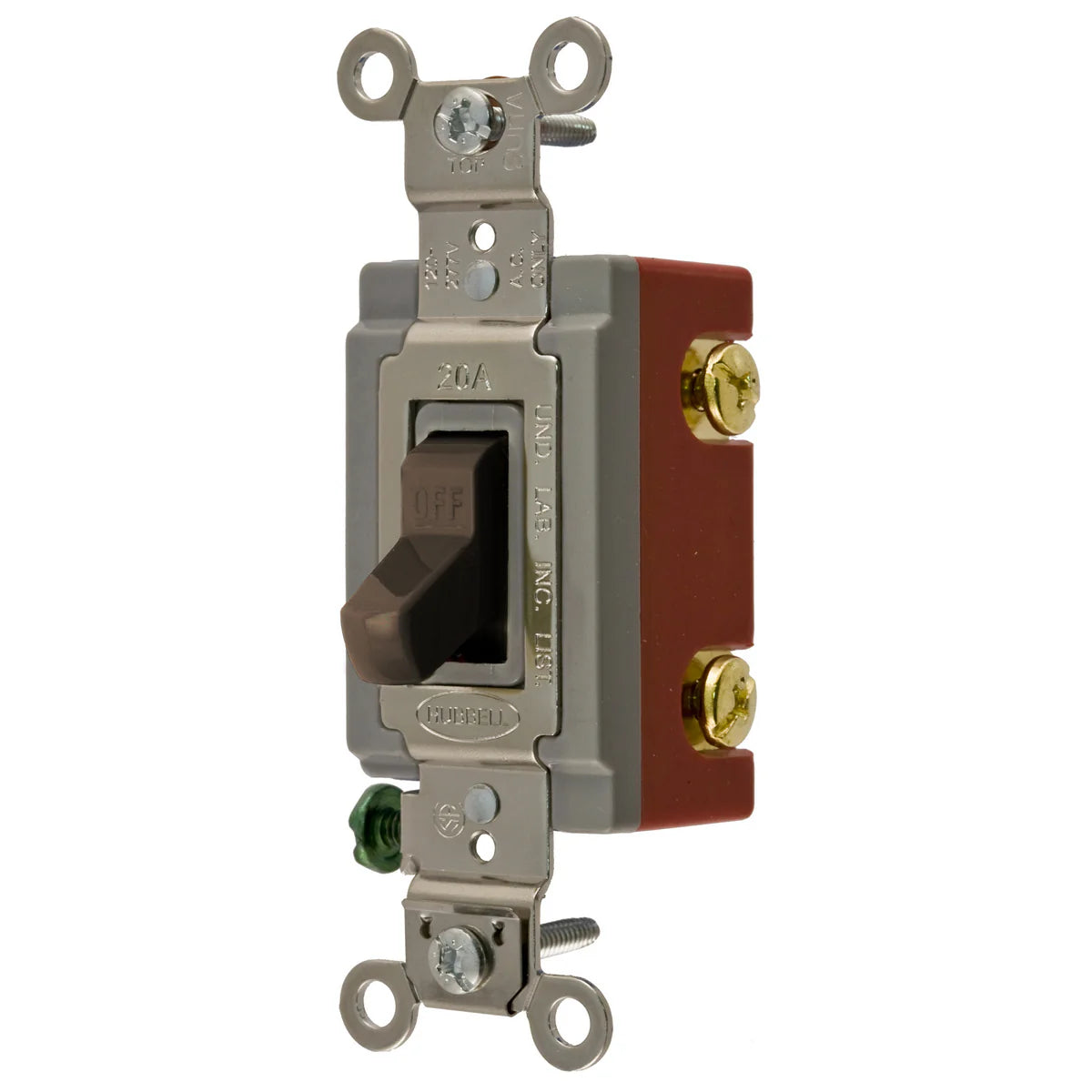

Hubbell HBL1221 Wiring Device-Kellems 20A SP Brown Switch 120 to 277 VAC

Product Description

The Hubbell HBL1221 is a toggle switch designed for general purpose use. It operates at 120 to 277 volts alternating current (VAC) and has a current rating of 20 amps. This switch is ideal for industrial applications requiring reliability and durability.

• Single pole, 2-position configuration
• Constructed with nylon toggle and thermoset body
• Rated for 5540 watts power

Product Highlights

This industrial grade toggle switch is built for heavy-duty applications. It offers a threaded mount and back/side wire terminal for easy installation. Designed for environments ranging from negative forty to seventy-five degrees Celsius, it can withstand various conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: HBL1221

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 W
• Dimensions: 4.06 x 1.31 x 1.87 inches
• Operating Cycles: 50,000 cycles
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon Toggle/Thermoset Body
• Terminal Type: Back/Side Wire
• Standards/Approvals: UL 20, CSA Certified, NEMA WD1
