Product Description

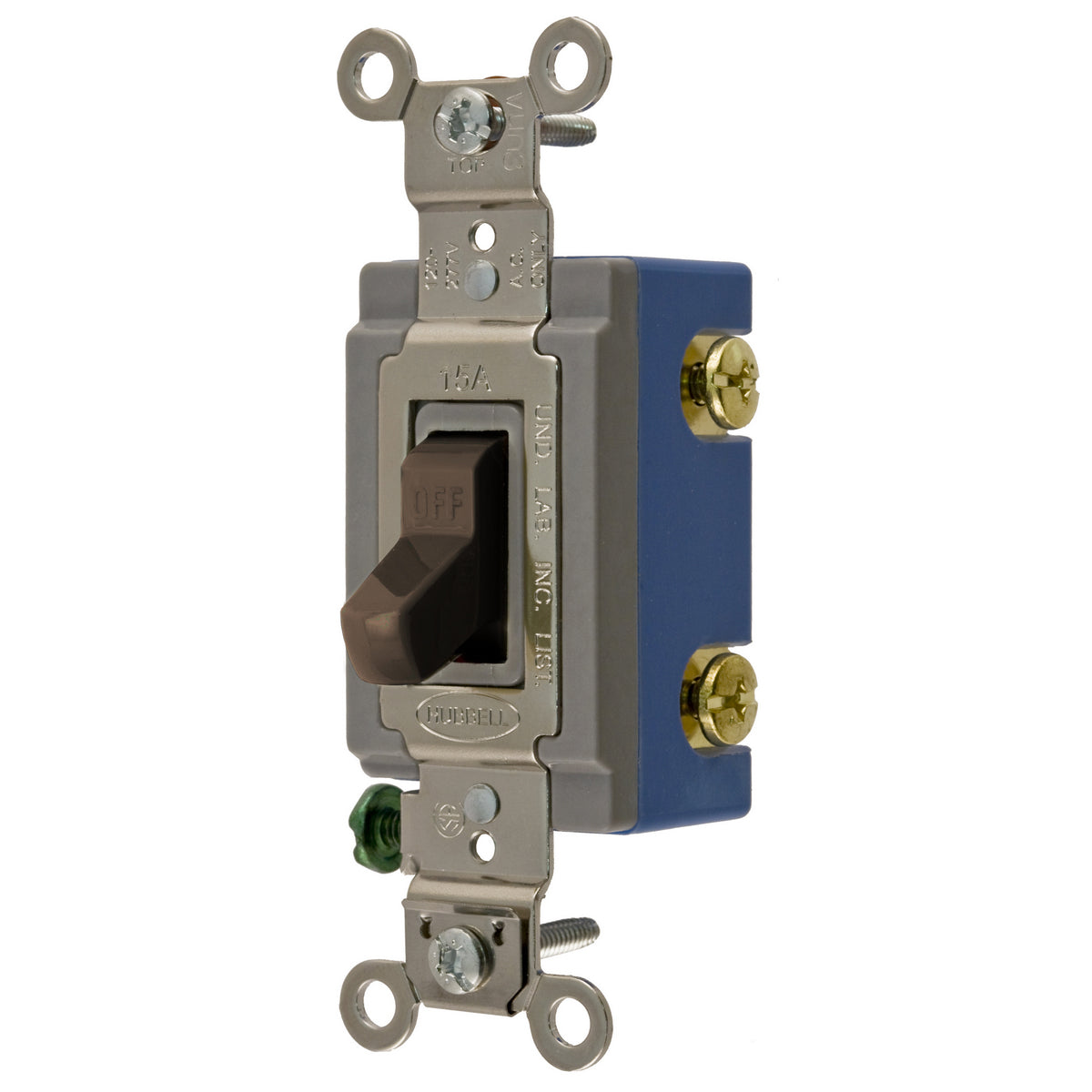

The Hubbell HBL1201 is an extra heavy-duty toggle switch designed for general purpose applications. It operates at a voltage range of one hundred twenty to two hundred seventy-seven VAC and is rated for fifteen amps, with a total power capacity of four thousand one hundred fifty-five watts. This switch features a two-position contact configuration and is suitable for industrial applications and dry environments.
- Operating cycles of fifty thousand
- Built for threaded mounting and back/side wire terminals
- Temperature range from negative forty to seventy-five degrees Celsius
Product Highlights
This toggle switch is ideal for a variety of wiring needs, providing reliable operation in demanding environments.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: HBL1201
Technical Specifications
-
Type: Extra Heavy Duty General Purpose Standard
-
Color: Brown
-
Actuator: Toggle
-
Amperage Rating: 15 A
-
Voltage Rating: 120 to 277 VAC
-
Power Rating: 4155 W
-
Contact Configuration: 2-Position
-
Operating Cycles: 50000 cycles
-
Material: Thermoset
-
Terminal Type: Back/Side Wire
-
Environmental Conditions: -40 to 75 deg C
-
Dimensions: 4.06 x 1.31 x 1.87 in
-
Standards/Approvals: RoHS Compliant, CSA Certified, UL94 V-2 Flammability Rating
