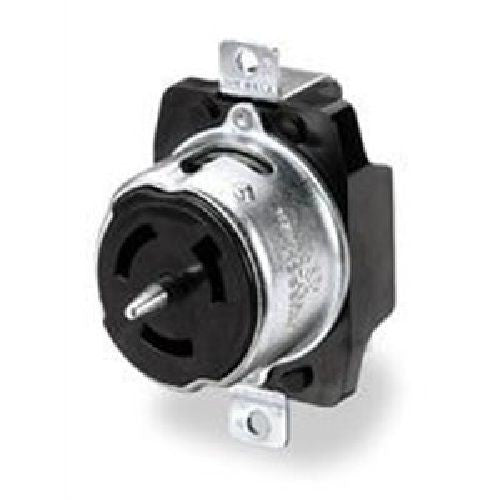

HUBBELL HBCS6369 Twist Lock Grounding Receptacle 50A 125/250VAC

Product Description

The HUBBELL HBCS6369 is a twist lock grounding receptacle designed for reliability and safety. It has a 3-pole and 4-wire configuration, suitable for applications requiring a robust connection. This receptacle is rated for a maximum of 50 amperes and operates at 125/250 volts AC. Made from durable black phenolic material, it has screw terminals for secure connections.

• Grounding type receptacle with three poles and four wires.
• Rated for 50A at 125/250 VAC.
• Constructed with screw terminals for easy installation.

Product Highlights

The HUBBELL HBCS6369 is ideal for various industrial applications, providing a secure and efficient connection for power delivery.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: HBCS6369

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• Number Of Poles: 3
• Number of Wires: 4
• Material: Phenolic
• Color: Black
• Terminal Type: Screw
• Type: Grounding
• Temperature Rating: -40 to 75 deg C
• Flammability Rating: UL 94 V-2
• Standards and Approvals: UL 498, CSA C22.2 No 42
• Dimensions: 2.69 inches x 2.12 inches x 2.36 inches
• Conductor Size: 10 - 4 AWG copper stranded or solid
