Hubbell HBBB14416H Busbar, 4 inchesx16 inches

Product Description

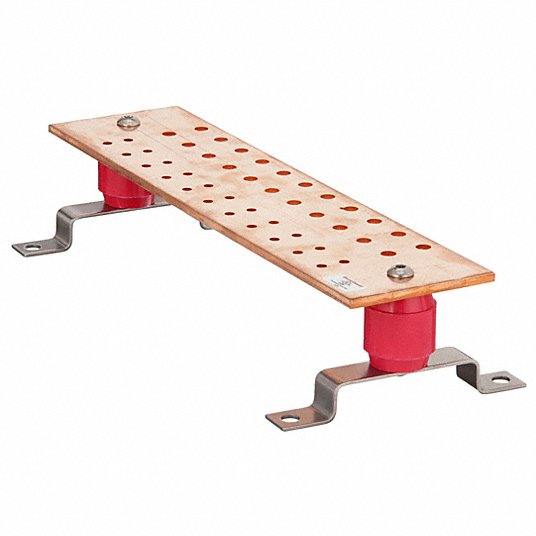

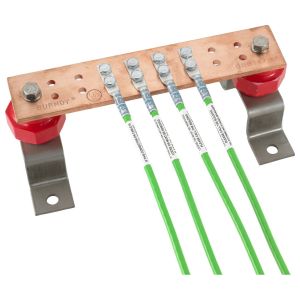

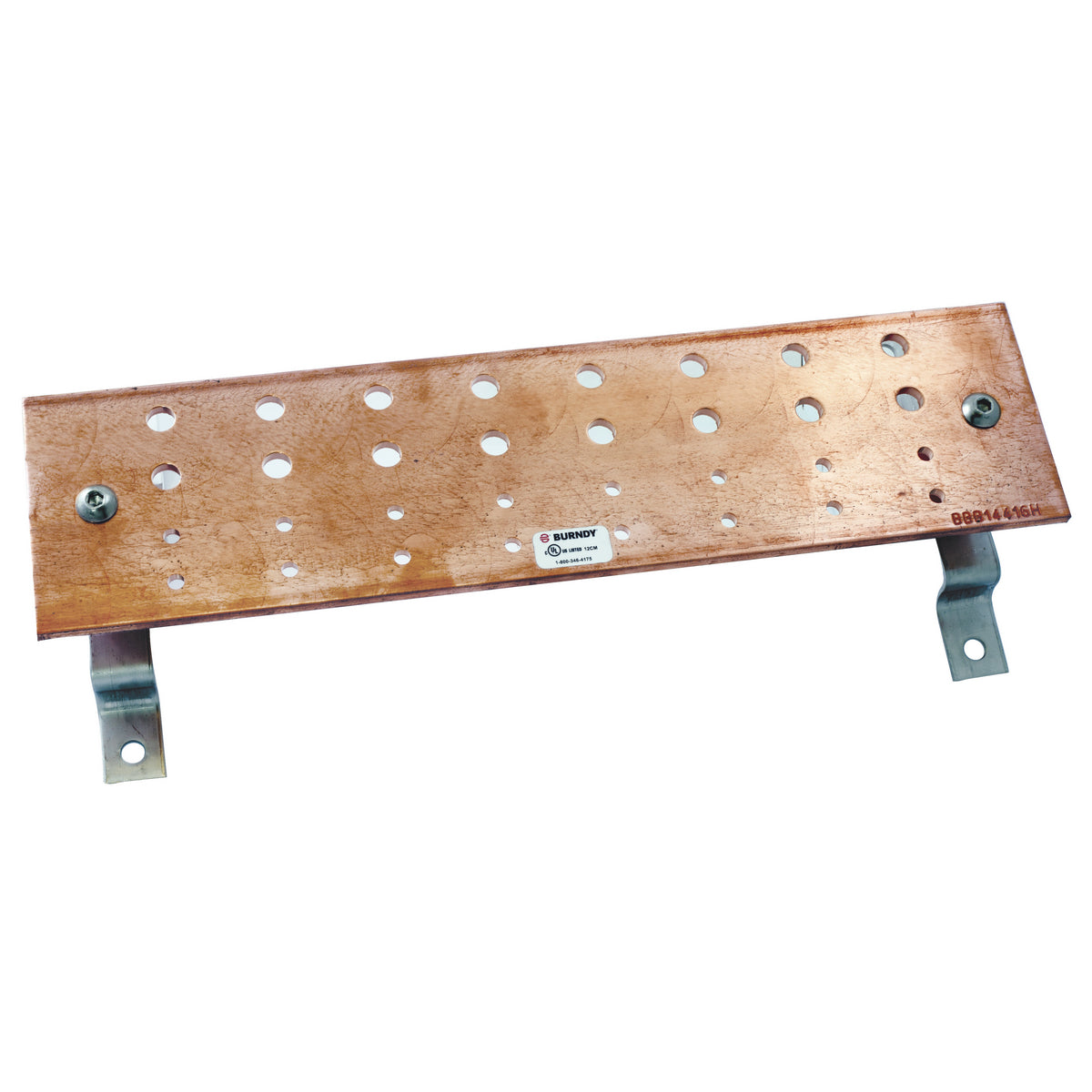

The HUBBELL HBBB14416H is a bonding busbar, Type TMGB Insulated, designed for grounding and bonding applications. It provides a convenient and organized bonding surface for collecting stray electrical currents. This copper busbar is suitable for telecommunications and electrical enclosures.

• Features a 600 VAC voltage rating
• Mounting holes are predrilled or tapped for matching with lugs
• Compliant with RoHS, UL, NEC Article 250, and TIA-607 standards

Product Highlights

This copper busbar provides a central grounding point for internal components, circuits, and the enclosure's body to safely dissipate electricity.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBBB14416H
• Country of Origin: US

Technical Specifications

• Application: Grounding and Bonding
• Bar Length: 16 in
• Bar Thickness: 1/4 in
• Bar Width: 4 in
• Hole Diameter: 0.44 and 0.25 in
• Includes: (2) Isolation Bushing, (2) Stainless Steel Mounting Bracket, (4) 3/8-16 x 5/8 in Button Head Socket Cap Screw and (10)Lug Kit With HDW
• Material: Copper
• Number Of Lugs: 16
• Number of Holes: 16
• Standards/Approvals: RoHS Compliant|UL Listed|NEC Article 250|TIA-607 Compliant
• Type: Type TMGB Insulated
• Voltage Rating: 600 VAC
• Mounting Type: Wall Mount
• Grounding: Grounding
• Ground Wire Included: No
• Grounding Bar Holes and Size: (16) 1/4 in; (16) 7/16 in
• Grounding Bar Length: 16 in
• Grounding Bar Thickness: 1/4 in
• Grounding Bar Width: 4 in
• Item: Grounding Busbar
• Standards: cULus Listed; TIA-607 Compliant
• Hole Quantity Total: 32
• Bar Thickness (in.): 1/4 in.
• Bar Length (in.): 16 in.
• Bar Width (in.): 4 in.
• Hole - QtySize: (16) 1/4 in., (16) 7/16 in.
• Hole Pattern - rows x holes: 4 x 8
• Type (Busbar): Insulated Grounding Busbar
• Material (Busbar): Tin-Plated
• Catalog Number: HBBB14416H
