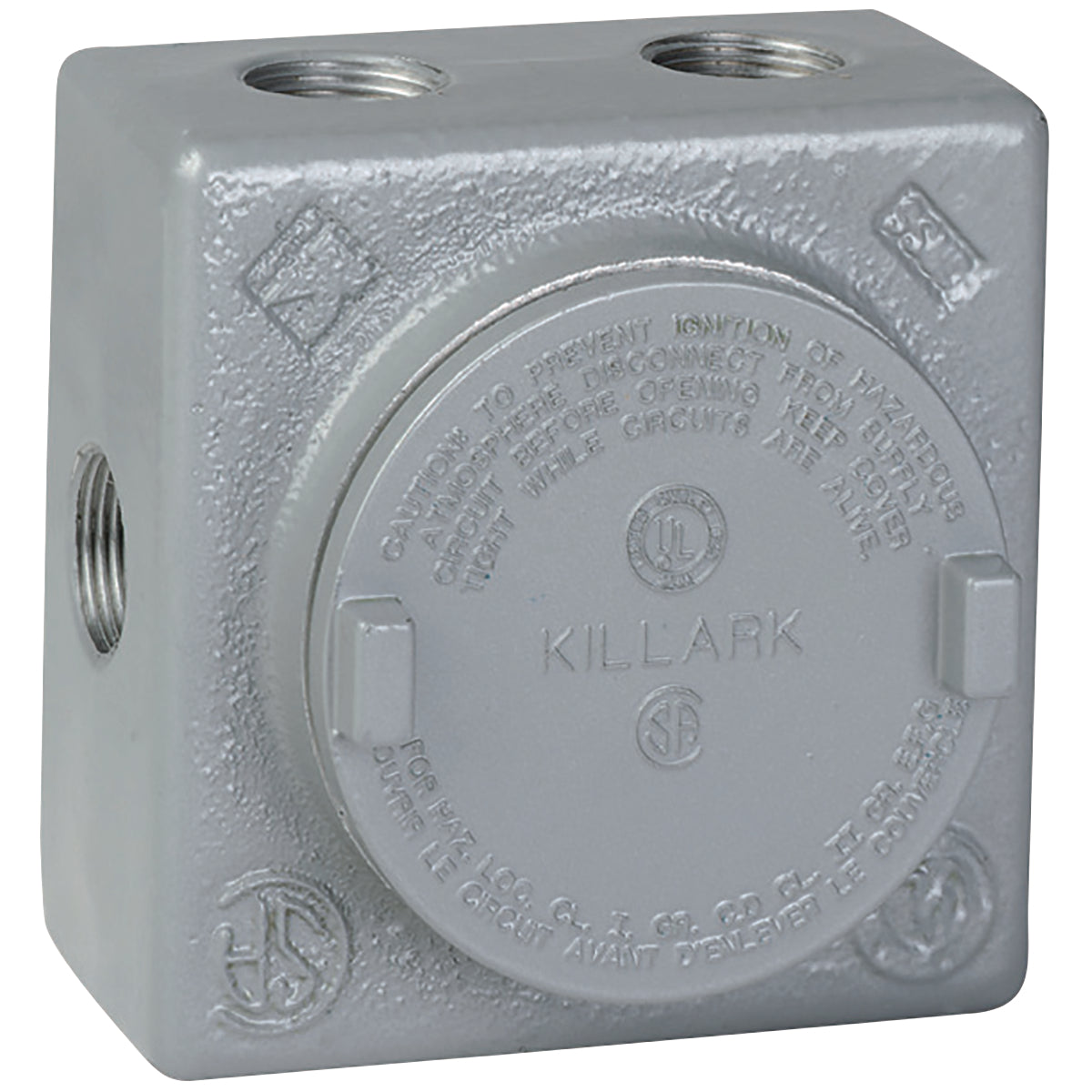

Hubbell GRSS-2 GR Series Explosionproof Square Conduit Body Internal Hub Body 3/4 in Hub

Product Description

The Hubbell GRSS-2 is a GR Series explosionproof square conduit body designed for use in hazardous areas. It protects conductors within threaded rigid conduit and serves as a pull or splice box. This product has seven internal hubs, allowing for multi-directional conduit changes and access to conductors when maintenance is needed. The internal hub body is made of copper-free aluminum that is durable and lightweight.

• Suitable for hazardous area applications
• Furnished with seven internal hubs
• Threaded mounting for secure installation

Product Highlights

The GRSS-2 offers reliable protection for electrical conductors and facilitates easy connections in challenging environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: GRSS-2

Technical Specifications

• Application: For use in hazardous areas to protect conductors in threaded rigid conduit, act as pull, splice boxes, interconnect lengths of conduit, change conduit direction, provide access to conductors for maintenance and future system changes
• Body Type: Internal Hub
• Color: Gray
• Dimensions: 4-5/8 in H x 4-5/8 in W x 3-1/2 in D
• Finish: Powder Coated
• Hub Size: 3/4 in
• Includes: GRRBC Blank Cover, Internal Ground Screw and (4) Close-Up Plugs
• Material: Aluminum
• Mounting Type: Threaded
• Number of Hubs: 7
• Standards/Approvals: UL File No. E10514|CSA File No. LR11716 Class I, Div. 1, 2, Groups C, D/Class II, Div. 1, 2, Groups E, F, G/Class III
• Type: Explosionproof Square
