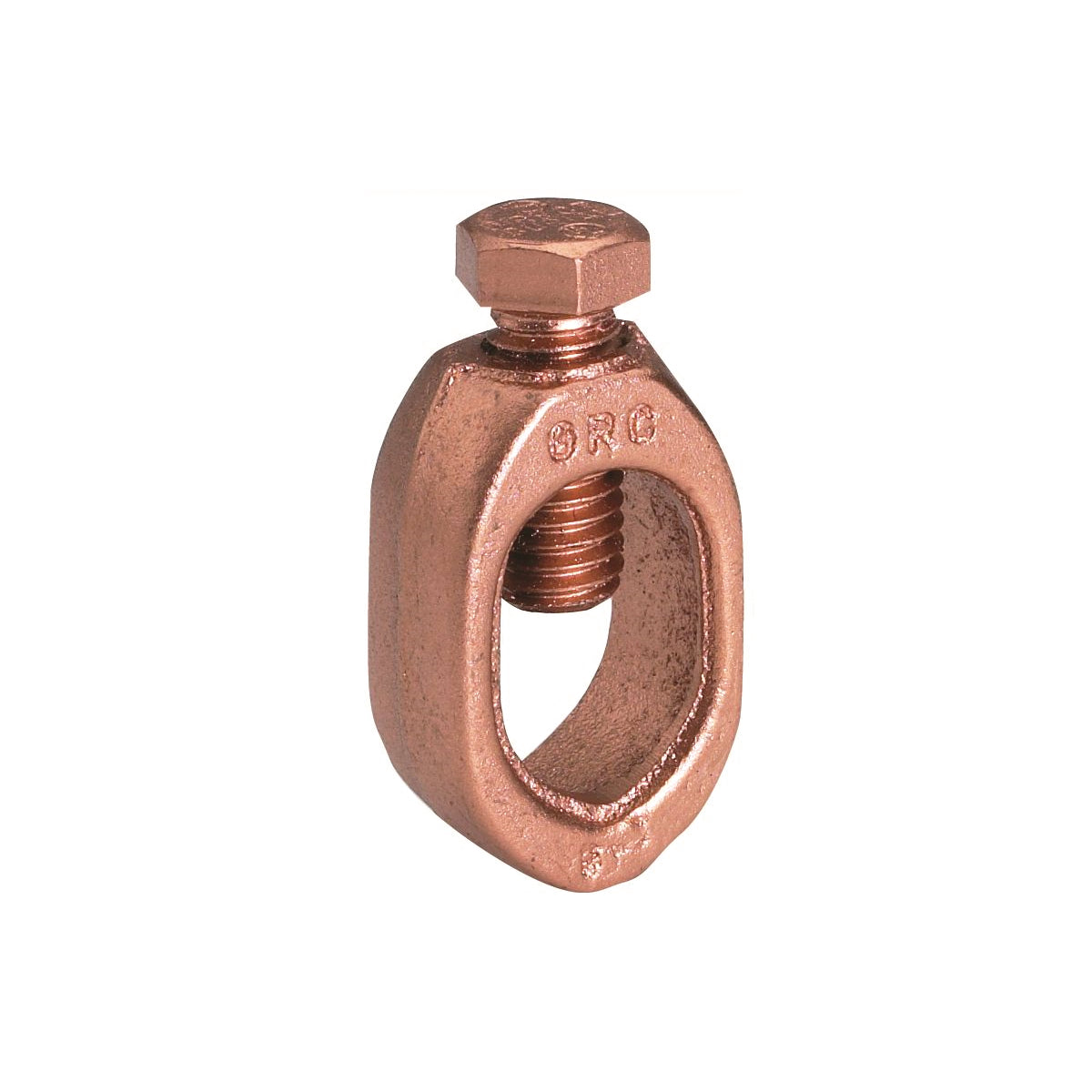

Hubbell GRC34 Ground Rod Clamp 3/4 in Rod 8 to 1/0 AWG

Product Description

The Hubbell GRC34 is a mechanical ground rod clamp designed for reliable connections. This product accepts three-quarter inch ground rods and works with conductors ranging from eight to one/0 AWG. The clamp is made from a copper alloy and is ideal for use in grounding applications.

• Installation via wrench for secure attachment
• Supports both stranded and solid conductors
• Suitable for underground and commercial installations

Product Highlights

The GRC34 offers high strength and durability for effective grounding.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: GRC34

Technical Specifications

• Application: For connecting cable to rod, joining various cables to ground rods
• Conductor Size: 8 to 1/0 AWG
• Conductor Type: Stranded/Solid
• Connection Type: Cable to Rod
• Dimensions: 0.63 in L x 1.09 in W x 2.47 in H
• Material: Copper Alloy
• Rod Size: 3/4 in
• Series: GRC
• Standards/Approvals: RoHS Compliant, UL 467, UL Recognized, PROP65 warning applicable
• Type: High Strength
