Product Description

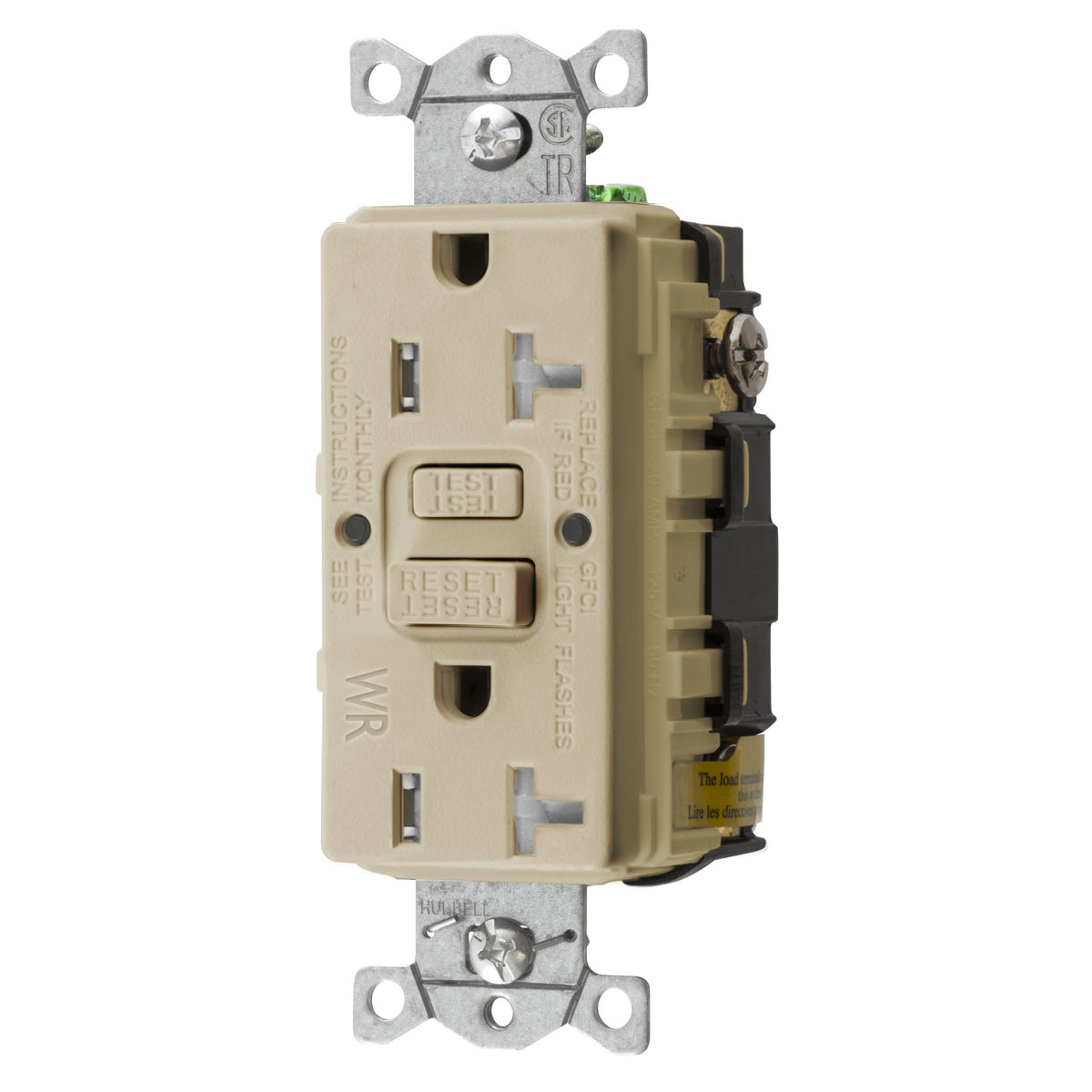

The Hubbell GFTWRST20I is a GFCI receptacle rated for twenty amperes. This product is designed for use in dry locations and indoor applications, ensuring reliable operation in various environments. The GFCI receptacle features a self-test function that automatically disconnects power if there is a fault, enhancing safety. It is suitable for commercial and residential wiring needs.
- Amperage Rating: 20 A
- Voltage Rating: 125 VAC
- Dimensions: 1.75 inches W x 1.47 inches D
Product Highlights
This receptacle offers a patented shutter design to provide tamper-resistant protection. It also provides UV and corrosion resistance, making it suitable for harsh conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 88377812267
Technical Specifications
-
Type: 1-Phase Decorator Duplex Standard Self-Test Screw Mount
-
Application: Dry Locations and Indoor Applications
-
Color: Ivory
-
Grade: Commercial
-
Horsepower: 1 hp
-
NEMA Rating: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -30 to 150 degrees F
-
Material: Thermoplastic/Composite
-
Frequency Rating: 60 Hz
-
Standards/Approvals: RoHS Compliant, ANSI 73, NEMA WD6, CEC Approved, UL 498/943 Class A, CSA/CEC Certified
