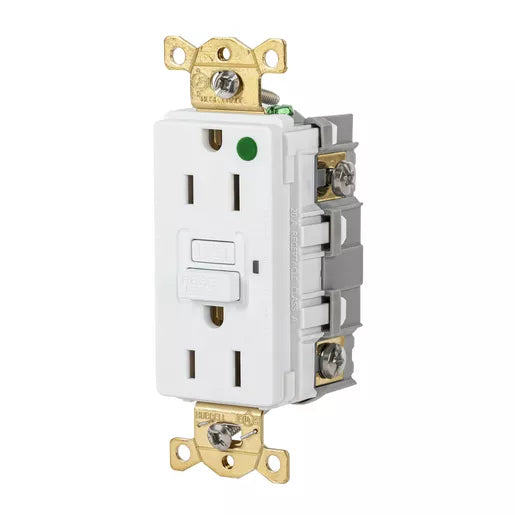

Hubbell GFR82W Heavy Duty Hospital Grade Autoguard Self-Test GFCI Receptacle 15A 125V (4.12 in x 1.75 in x 1.48 in)

Product Description

Hubbell GFR82W is a heavy duty hospital grade Autoguard self-test GFCI receptacle rated 15 A, 125 V with a NEMA 5-15R configuration. The device continuously self-tests every 30 seconds and disconnects power if critical components fail. It provides visual indicators for power, trip, ground fault and end-of-life status, and includes reverse-wiring protection and triple-wipe brass contacts. Dimensions: 4.12 in x 1.75 in x 1.48 in.

• AUTOGUARD closed-loop self-test every 30 seconds with automatic disconnect on critical component failure
• Visual indicators for power, trip, ground fault and end-of-life; green power and red trip indicators
• Reverse-wiring protection, triple-wipe brass power contacts, compatible with #14 to #10 AWG wiring

Product Highlights

Hospital-grade 15 A, 125 V GFCI with continuous self-test, reverse-wiring protection, and visual status indicators.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: GFR82W

Technical Specifications

• Brand: Hubbell
• MPN: GFR82W
• Catalog Number: GFR82W
• Application: Commercial hospital grade
• Series: Hospital Grade
• Type: Standard
• Configuration: 2-pole, 3-wire grounding, NEMA 5-15R
• Current Rating: 15 A
• Voltage Rating: 125 V
• Wattage: 1875 W
• Wire Size: #14 - #10 AWG
• Dimensions: 4.12 in x 1.75 in x 1.48 in
• Material - Base: Nylon
• Material - Face: Nylon
• Ground Contacts: Brass
• Power Contacts: Brass
• Mounting Strap: Brass
• Mounting Screws: Zinc plated steel
• Self-Test Interval: Every 30 seconds
• Indicators: Green power indicator; red trip indicator; ground fault and end-of-life indicators
• Protection Features: Disconnects power on critical component failure; denies power on reverse line/load wiring
• Construction Feature: Triple wipe construction
• Phase: Single phase
• NEMA Rating: 5-15R
• Compliance: Meets all NEC requirements
• UPC: 883778999208
