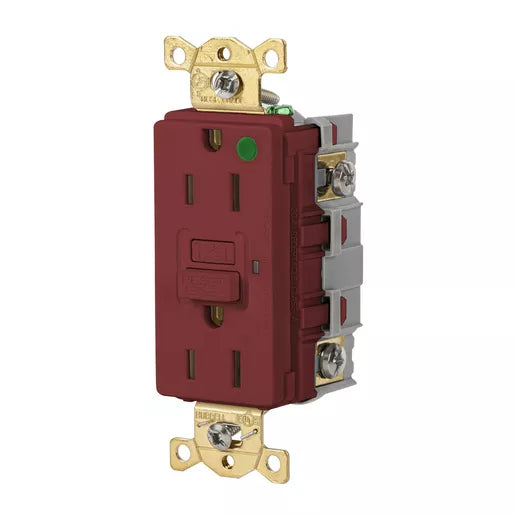

Hubbell GFR82R Heavy Duty Hospital Grade Autoguard Self-Test GFCI Receptacle 15A 125V (4.12 in x 1.75 in x 1.48 in)

HUBBELL
Brand: HUBBELL
SKU: GFR82R
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$89.65
$89.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Hubbell GFR82R is a heavy duty hospital grade AUTOGUARD self-test GFCI receptacle rated 15 A, 125 V for 5-15R applications. The device continuously self-tests every 30 seconds to monitor ground-fault protection and will disconnect power if protection is lost or critical components are damaged. It denies power to the face on line/load reverse wiring and provides clear visual indication of power, trip, ground-fault, and end-of-life status. Designed for #14–#10 AWG wiring.

  • AUTOGUARD self-test continuously tests every 30 seconds and disconnects power if protection is lost or critical components are damaged
  • Clear visual indicator shows power status, trip condition, ground-fault condition, and end-of-life status
  • Denies power on line/load reverse wiring; triple-wipe brass contact construction; compatible with #14–#10 AWG and 5-15R

Product Highlights

Hospital grade 15 A, 125 V GFCI with continuous self-test, reverse-wiring protection, and clear status indicators.

Product Information

Standard Information

  • Brand: HUBBELL
  • Manufacturer Part Number: GFR82R

Technical Specifications

  • Brand: Hubbell
  • Manufacturer Part Number: GFR82R
  • Device Type: AUTOGUARD self-test GFCI receptacle
  • Application: Commercial Hospital Grade
  • Series: Hospital Grade
  • Current Rating: 15 A
  • Input Voltage: 125 V
  • Wattage: 1875 W
  • NEMA Rating: 5-15R
  • Self-Test Interval: Every 30 seconds
  • Reverse Wiring Protection: Denies power to face on line/load reverse wiring
  • Indicator: Clear visual indicator for power status, trip condition, ground-fault condition, and end-of-life
  • Contact Construction: Triple wipe construction
  • Wire Size: #14 - #10 AWG
  • Phase: Single Phase
  • Dimensions: 4.12 in x 1.75 in x 1.48 in
  • Height: 4.12 in
  • Width: 1.75 in
  • Depth: 1.48 in
  • Base Material: Nylon
  • Face Material: Nylon
  • Ground Contacts Material: Brass
  • Power Contacts Material: Brass
  • Mounting Strap Material: Brass
  • Mounting Screws Material: Zinc plated steel
  • Style: Standard
  • Type: Standard
  • Industry Standards: Meets All NEC Requirements
  • UPC: 883778999192
