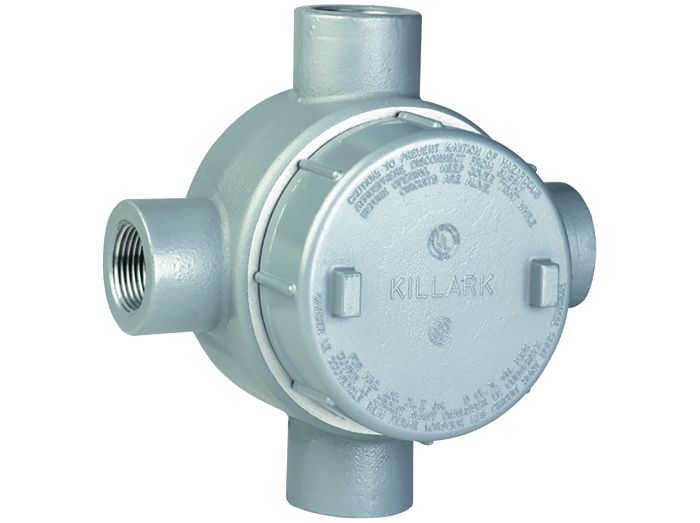

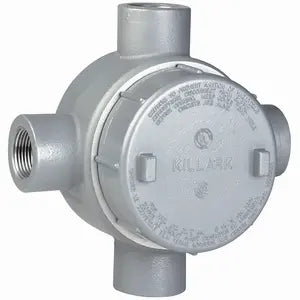

Hubbell GECXT-2M GEC Outlet Body X Type, Iron 3/4 inches

Product Description

The HUBBELL GECXT-2M is a 3/4" GEC outlet body X type, constructed from iron. Designed for conduit systems in hazardous areas, it protects conductors in threaded rigid conduit and acts as a pull and splice box. It interconnects conduit lengths, changes conduit direction, and provides conductor access for maintenance.

• Water shedding cover suitable for wet locations when mounted upright
• External cover threads protect conductors during pulling
• Taper threaded hubs provide ground continuity

Product Highlights

This iron outlet body features a water-shedding cover, external cover threads, and taper threaded hubs, ensuring durability and protection in hazardous environments.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: GECXT-2M
• Country of Origin: United States

Technical Specifications

• Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• Catalog Number: GECXT-2M
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: X
• Material: Iron
• Series: GE Series
• Type: Outlet Body With Cover
• UPC: 783936211015
• Hub Size: 3/4"
• Buy America(n) Qualified: Contact Manufacturer
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA
• UL File Number: E10514
• Thread Size: 3/4 in
• Conduit Type: IMC
• Brand: HUBBELL
• Compatible Conduit Trade Size: 3/4 in
• Thread Gender: Female
• Number of Hubs: 4
• Hub Style: Threaded
• Body Capacity: 19 cu in
• Finish: Powder Coated
• Cover Included: Yes
• Body Style: X
• Connection Type: Threaded
• Includes: Grounding Screw
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Standards: UL
• Hazardous Location: Yes
• For Use With: RMC
• Shape: X
• Thread Type: NPT
• Manufacturer Part Number: GECXT-2M
• UNSPSC: 39121308
• Product Series: GEC
• Family Series: Killark Conduit Outlet Bodies, GEC Series
• Description: .75 IN IRON OUTLET BODY X TYPE
• Style: Threaded Iron
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Net Weight: 3.22 lbs
• Gross Weight: 3.455 lbs
