Product Description

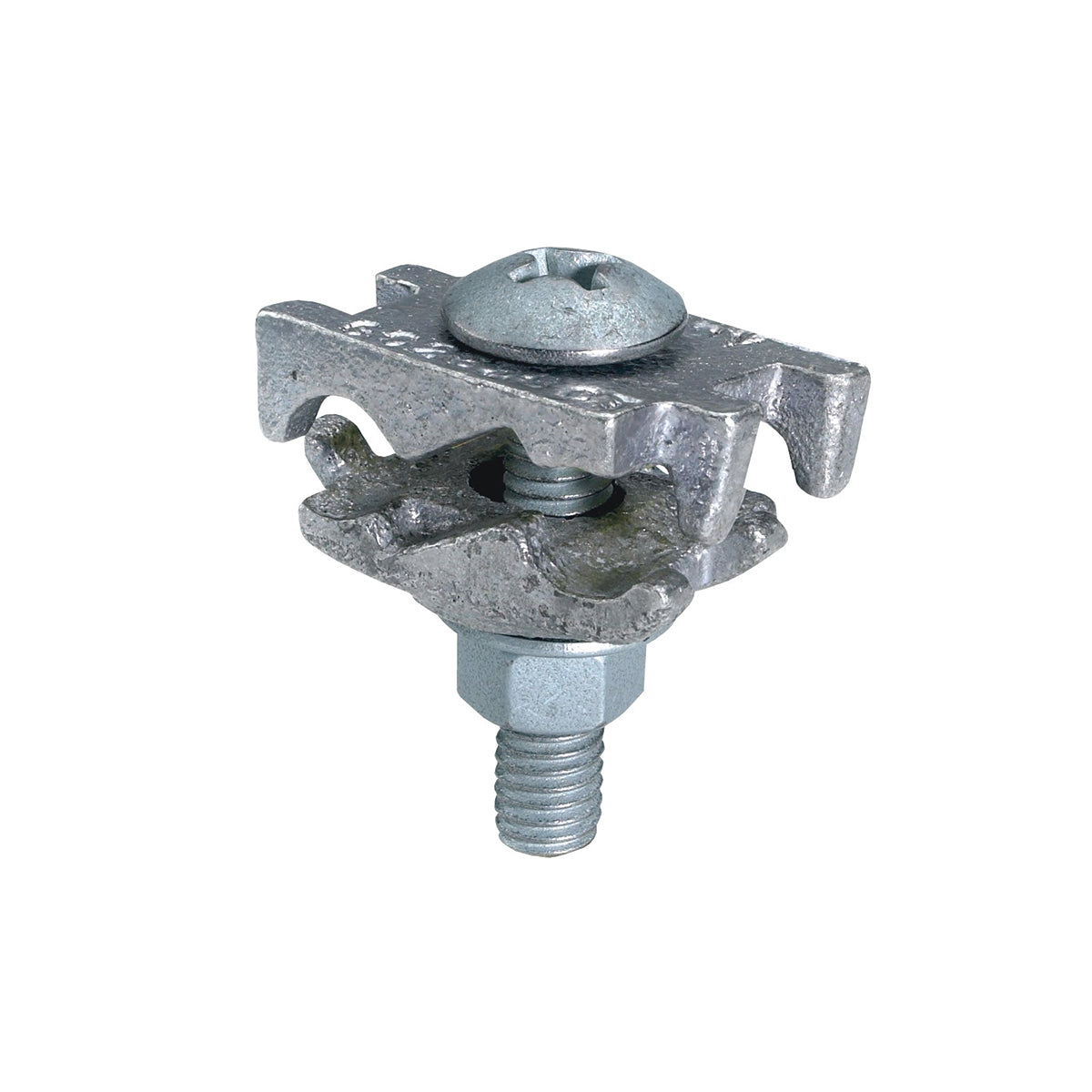

The Hubbell GC2626CT is a cable tray ground clamp designed for use with two to two-aught AWG solid and stranded aluminum or copper conductors. This product meets the needs of electricians in grounding applications. It is constructed from a cast copper alloy and features a compatible tin coating, which helps to protect against corrosion. The clamp is easy to install, providing effective grounding solutions in both direct burial in concrete or earth, as well as with aluminum or galvanized steel cable trays.
- Supports 2 to 2/0 AWG aluminum and copper conductors.
- Made from cast copper alloy material with a tin-coated finish.
- Specifically designed for direct burial and cable tray applications.
Product Highlights
The GC2626CT clamp offers durability and effective grounding for electrical systems.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: GC2626CT
Technical Specifications
-
Conductor Size: 2 to 2/0 AWG
-
Conductor Type: Solid/Stranded Aluminum/Copper
-
Dimensions: 1.7 inches W x 1.95 inches H
-
Application: For direct burial in concrete or earth and aluminum or galvanized steel cable tray
-
Installation Torque: 240 in-lb
-
Finish: Tin Coated
-
Material: Cast Copper Alloy
