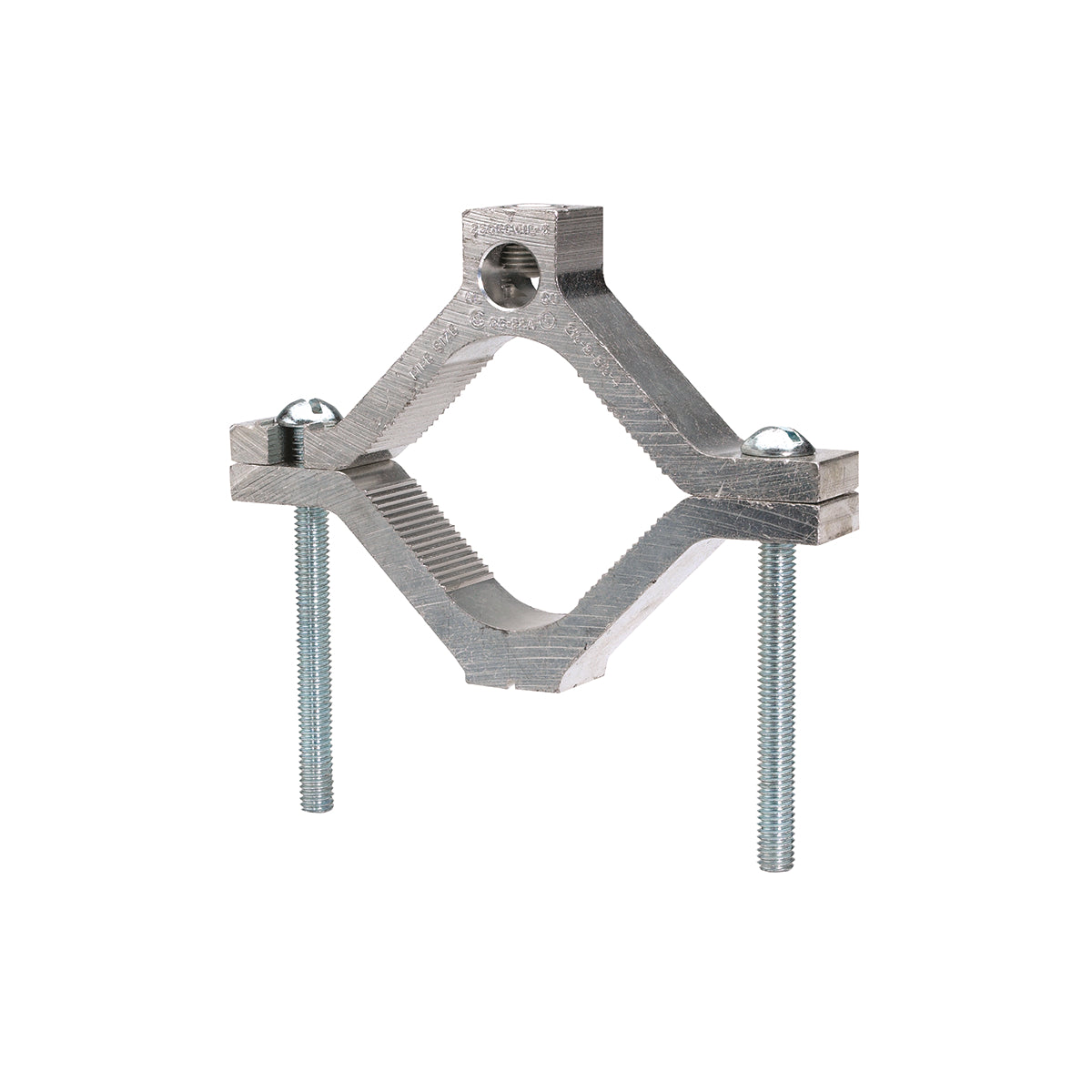

Hubbell GC22A GC-A Dual Rated Mechanical Grounding Connector 6-250 MCM

Product Description

The Hubbell GC22A is a dual rated mechanical grounding connector designed for a variety of applications. This connector accommodates aluminum and copper conductors ranging from six AWG to two hundred fifty kcmil. It is ideal for use with pipes measuring two and one-half inches to four inches in diameter. The design ensures maximum stability and conductivity in harsh environments.

• Made of high strength extruded aluminum alloy
• UL listed for use with copper and aluminum conductors
• Easy wrench installation

Product Highlights

This connector provides flexibility in applications such as bonding and grounding. It is suitable for direct burial in concrete and soil. The connector's tin coating enhances corrosion resistance.

Product Information

Standard Information

• Application: For use with copper or aluminum conductors
• Conductor Size: 2-1/2 to 4 inches, 6 AWG to 250 kcmil

Technical Specifications

• Conductor Type: Aluminum/Copper
• Connection Type: Cable to Water Pipe
• Dimensions: 6-5/16 inches long x 1 inch wide
• Finish: Tin Coated
• Manufacturer Part Number: GC22A
• Material: Aluminum Alloy
• Series: GC-A
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
• Type: Dual Rated
