Product Description

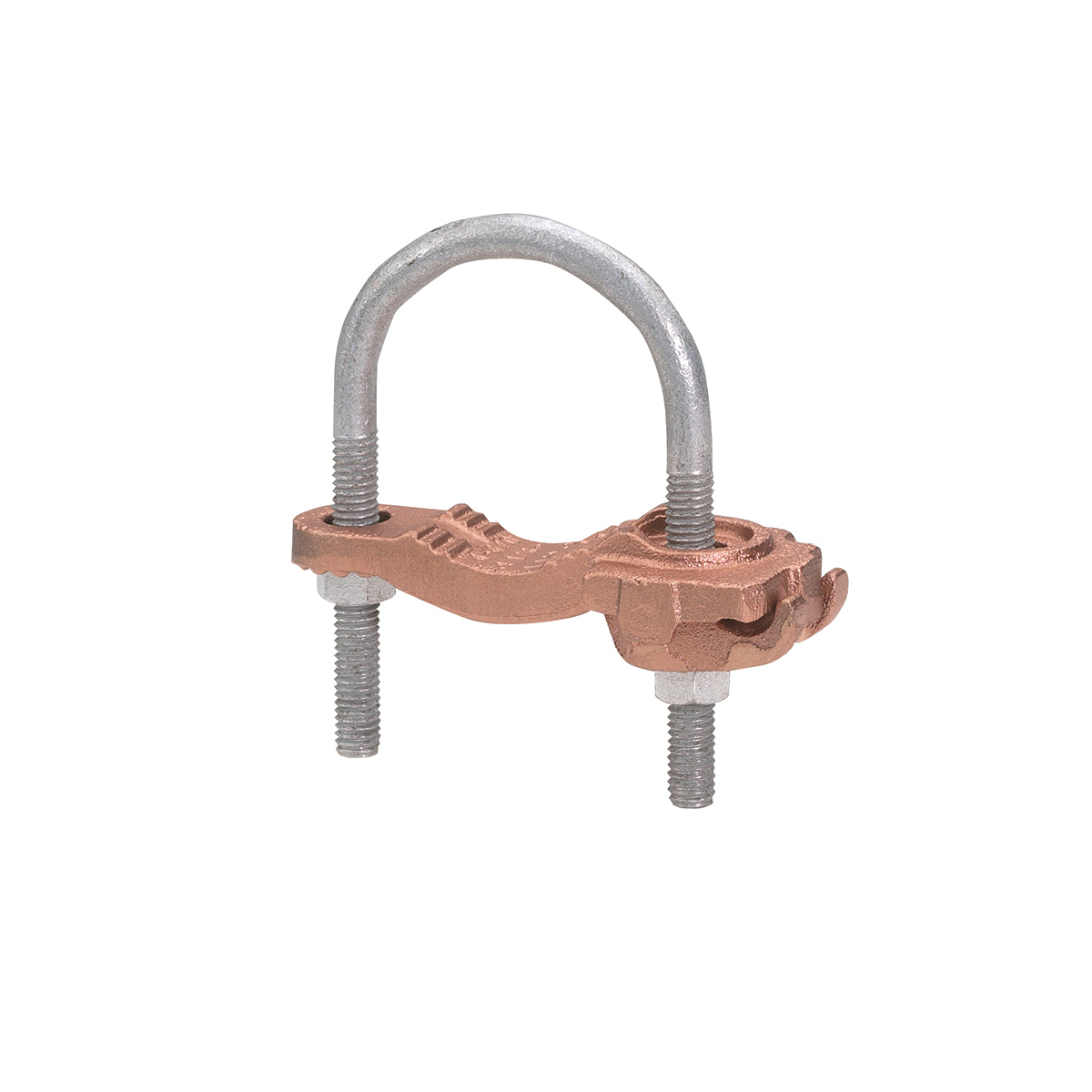

The Hubbell GAR3905 Mechanical Grounding Connector is designed for the connection of copper conductors to water pipes and reinforcing rods. This connector is suitable for conductors ranging from four to four over zero AWG and works with pipes measuring four to five inches in diameter. This grounding connector features a wrench installation method and is made of high conductivity copper.
- Suitable for four to four over zero AWG stranded conductors.
- Galvanized screw for increased durability.
- Offers a swivel clamp for flexible cable arrangements.
Product Highlights
This connector is built for reliable grounding in electrical systems and ensures compliance with various industry standards.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181023404
Technical Specifications
-
Application: For connecting a small to medium range copper ground conductor to water pipe and direct burial cables.
-
Conductor Size: 4 to 4/0 AWG
-
Conductor Type: Copper/Stranded
-
Connection Type: Conductor to Water Pipe
-
Dimensions: 1-3/4 in L x 7-1/2 in W x 7-1/2 in H
-
Finish: Galvanized
-
Material: Copper
-
Pipe Size: 4 to 5 in
-
Rod Size: 4 to 5 in
-
Series: GAR3902
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
