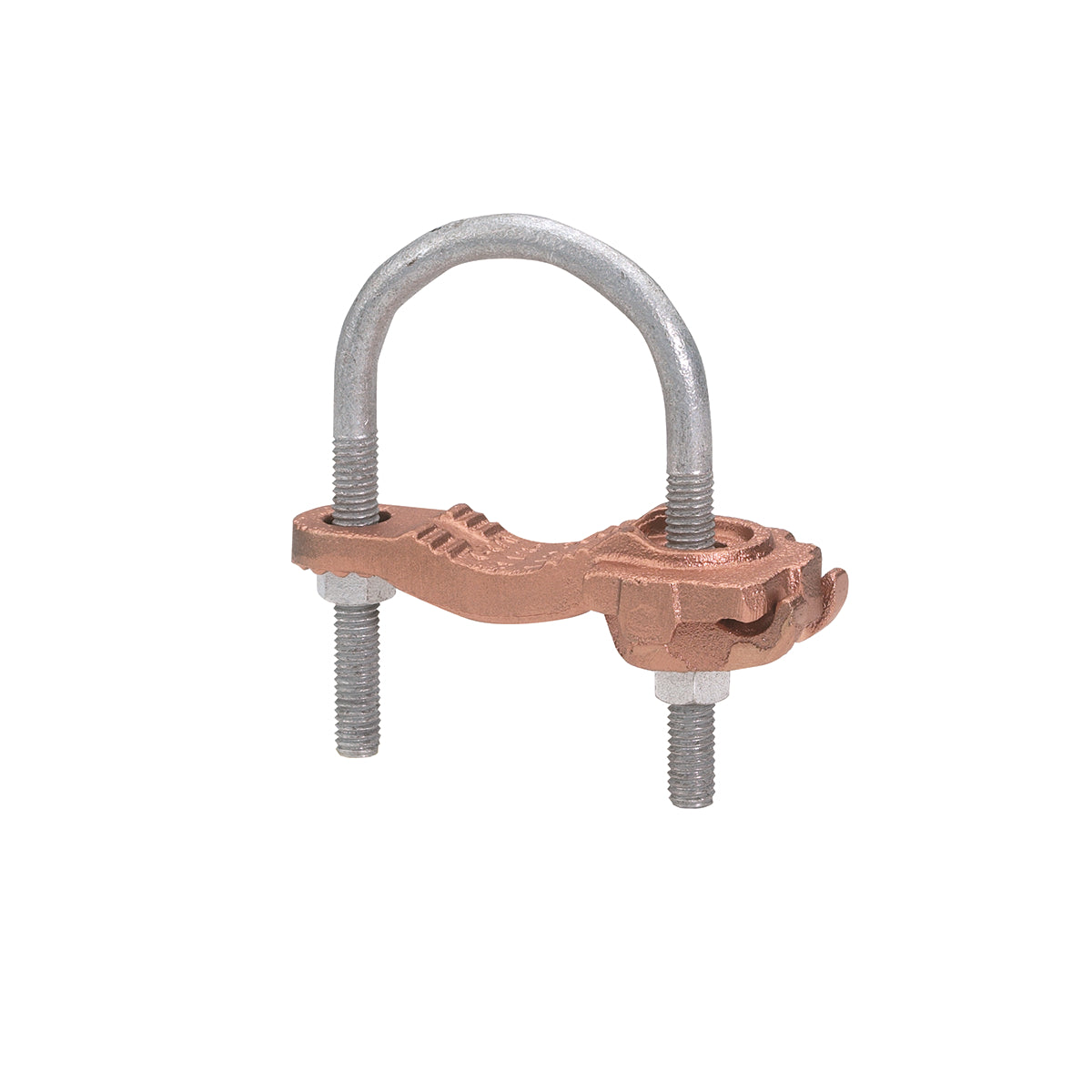

Hubbell GAR3904 Mechanical Grounding Connector 2-1/2 to 3-1/2 in IPS 78181023403

Product Description

The Hubbell GAR3904 is a mechanical grounding connector designed to connect copper conductors. It serves as a reliable solution for grounding small to medium range copper conductors to water pipes and structural rods. This product accommodates conductor sizes from four to four aught AWG and fits pipes measuring two and one-half to three and one-half inches in diameter.

• Connects copper conductors to water pipes
• Suitable for conductor sizes from 4 to 4/0 AWG
• Made of high conductivity copper

Product Highlights

This connector offers simplified installation with a wrench and features a durable galvanized finish. It is UL 467 listed for direct burial applications in both earth and concrete.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: GAR3904

Technical Specifications

• Application: For connecting a small to medium range copper ground conductor to water pipe and structural rods
• Conductor Size: 4 to 4/0 AWG
• Conductor Type: Copper/Stranded
• Dimensions: 1-3/4 in L x 6 in W x 6-1/2 in H
• Finish: Galvanized
• Pipe Size: 2-1/2 to 3-1/2 in
• Rod Size: 2-1/2 to 3-1/2 in
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 warning for potential exposure to lead
