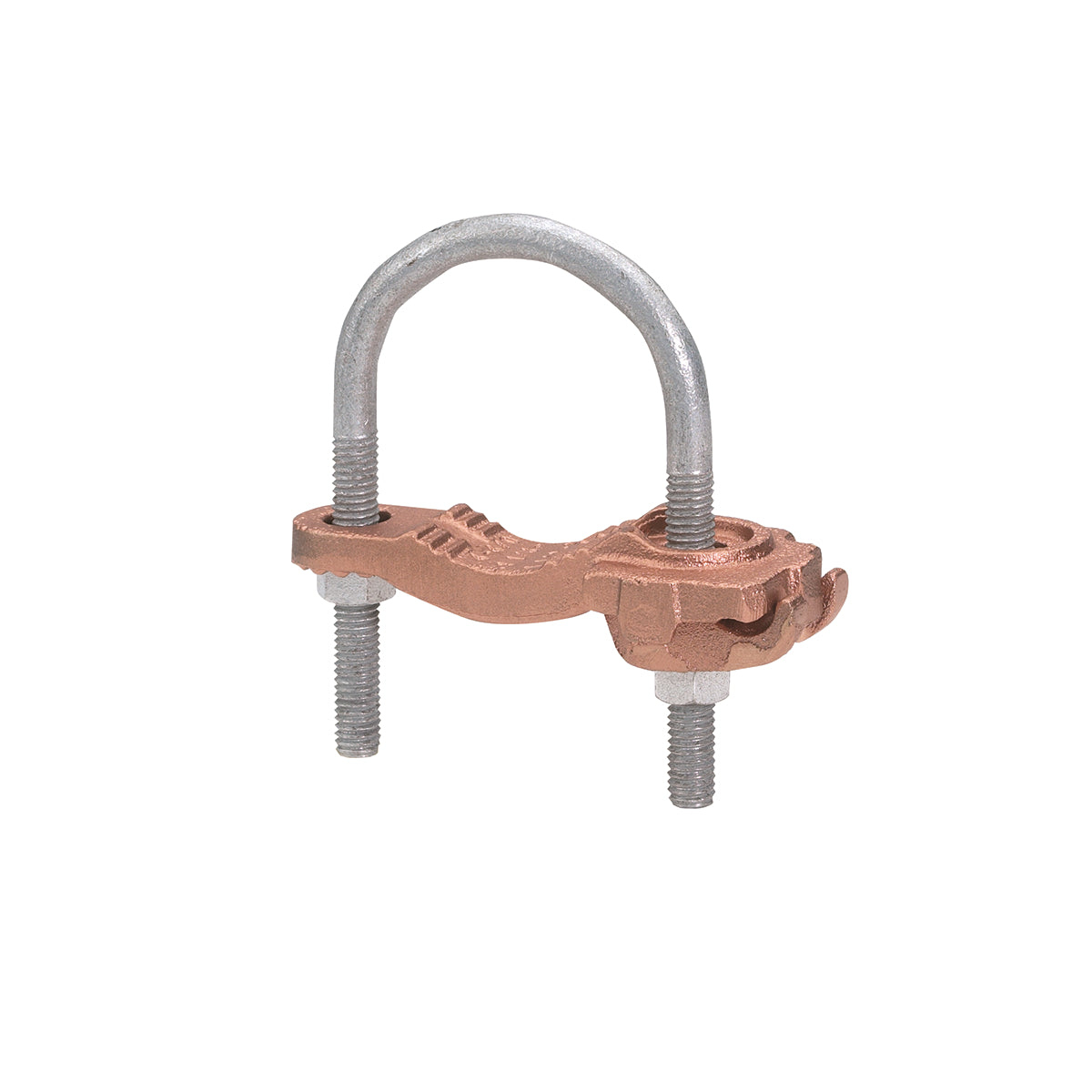

Hubbell GAR3902 Mechanical Grounding Connector 1/2 to 1 in 4 to 4/0 AWG

Product Description

The Hubbell GAR3902 is a mechanical grounding connector designed for connecting copper conductors. It accommodates pipe sizes from one-half inch to one inch and supports conductors ranging from four to four/zero American wire gauge (AWG). The connector is specially made for high conductivity and durability.

• Certified for direct burial in earth or concrete
• Constructed from high-conductivity copper
• Features a wrench installation for easy use

Product Highlights

This connector is suitable for connecting a copper ground conductor to water pipes and structural rods. It provides a reliable connection while ensuring adherence to industry standards.

Product Information

Standard Information

• Brand: Hubbell
• MPN: GAR3902

Technical Specifications

• Application: For connecting copper ground conductors to water pipes and structures
• Conductor Size: 4 to 4/0 AWG
• Conductor Type: Copper/Stranded
• Connection Type: Conductor to Water Pipe
• Dimensions: 1-3/4 inches long x 3-1/4 inches wide x 3-1/2 inches high
• Finish: Galvanized
• Pipe Size: 1/2 to 1 inch
• Rod Size: 1/2 to 1 inch
• Material: Copper
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
