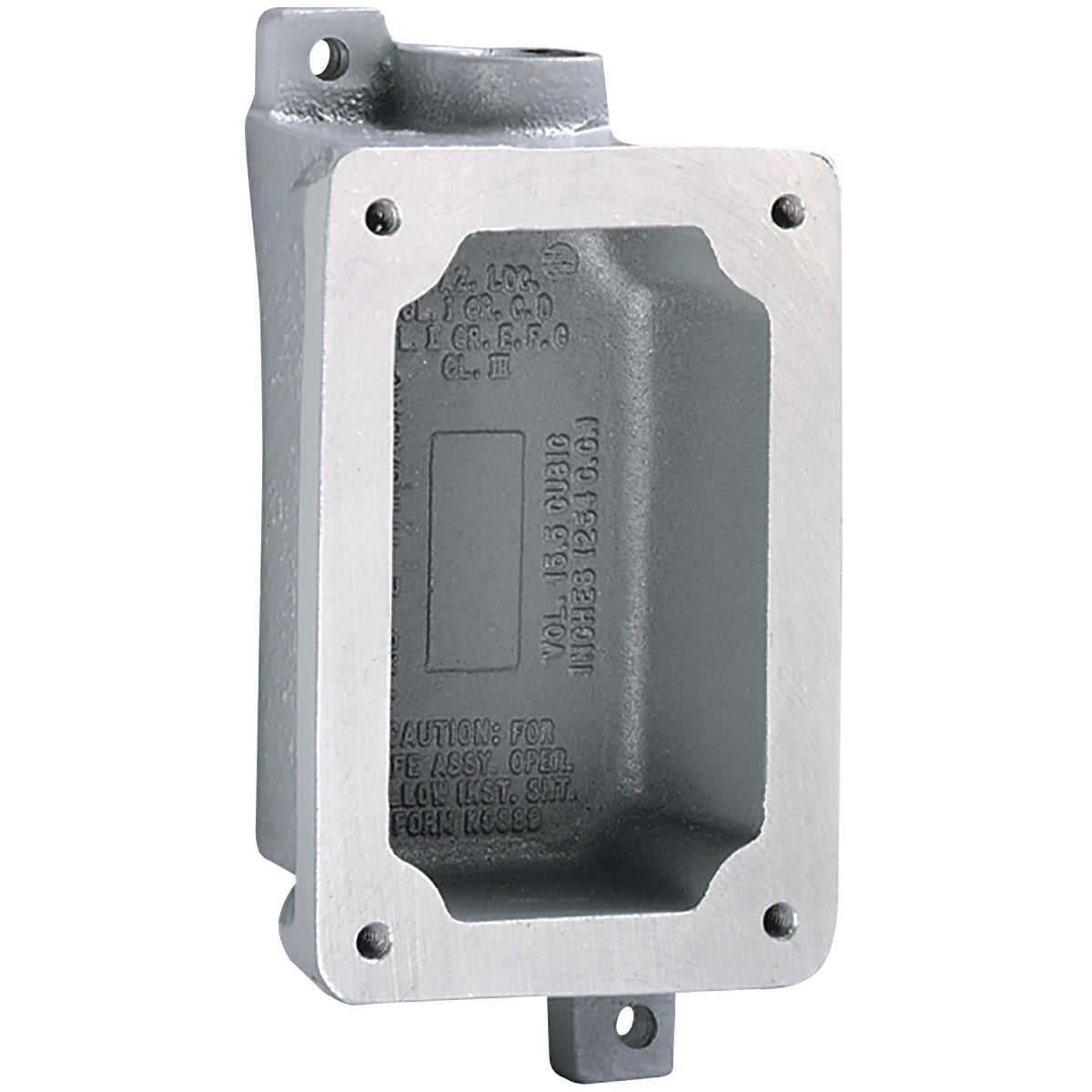

Hubbell FXB-2 FXB2 KIL SPLICE BOX XP

Product Description

The Hubbell FXB-2 FXB2 KIL SPLICE BOX XP is a reliable splice box made of copper-free aluminum. This splice box is designed for hazardous locations with NEMA ratings of 3, 7, and 9. It allows for wall mounting and supports application in diverse settings, including Class 1 Division 1 and 2 areas.

• Material is copper-free aluminum
• Designed for FXCS and FXS series cover sub-assemblies
• Dimensions: six and thirteen-sixteenths inches in height, three and eleven-sixteenths inches in width, one and three-quarters inches in depth

Product Highlights

Hubbell FXB-2 offers exceptional durability in demanding environments. It is suitable for applications requiring reliable electrical connections and must meet stringent safety standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393620031

Technical Specifications

• Application: For use with FXCS and FXS series
• Color: Gray
• Dimensions: Six and thirteen-sixteenths inches high x three and eleven-sixteenths inches wide x one and three-quarters inches deep
• Enclosure: NEMA 3/7/9
• Hub Size: Three-quarters inch
• Mounting Type: Wall
• Number of Gangs: One
• Standards/Approvals: Class I, Div 1 and 2, Groups C,D and Class II, Div 1 and 2, Groups E, F, G
• Manufacturer Part Number: FXB-2
• Type: Type FXB Dead End Factory Sealed
