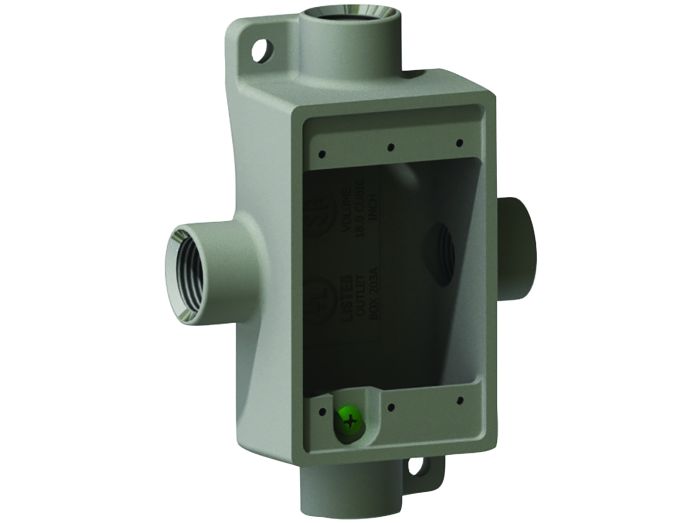

Hubbell FSX1 FSX Series Fittings Aluminum Device Box 1/2 in

Product Description

The HUBBELL FSX1 is an FSX Series fitting, an aluminum FSX type cast device box with a shallow hub size of 1/2 inch and a volume of 18.0 Cu In. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It also provides access to conductors for maintenance and future system changes.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard

Product Highlights

This aluminum device box is suitable for use in wet locations when used with gasket covers and cast iron is suitable for concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FSX1
• Country of Origin: United States

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: FSX-1
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: FSX
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 1
• Series: F Series
• Type: Device Box
• UPC: 783936190716
• Height: 7.062 in
• Hub Size: 1/2 "
• Length: 10.12 in
• Width: 4.68 in
• CSA File Number: LR11852
• UL File Number: E3397
• Product Series: FSX
• Manufacturer Part Number: FSX-1
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, FSX Series
• Description: 1/2in. K ALUM SHALLW DEVICE BOX TYPE FSX
• Style: FSX
• Number of Gangs: 1
• Number of Hubs: 4
• Connection Type: Threaded
• Grounding: Yes
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• Dimensions Overall Length: 10.12 in
• Overall Width: 4.68 in
• Overall Height: 7.062 in
• Item: Box Cover
• Finish: Powder Epoxy Paint
• Special Features: Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
