Hubbell FST2 FST Type Shallow Device Box 3/4 inches Replacement FST-2

Product Description

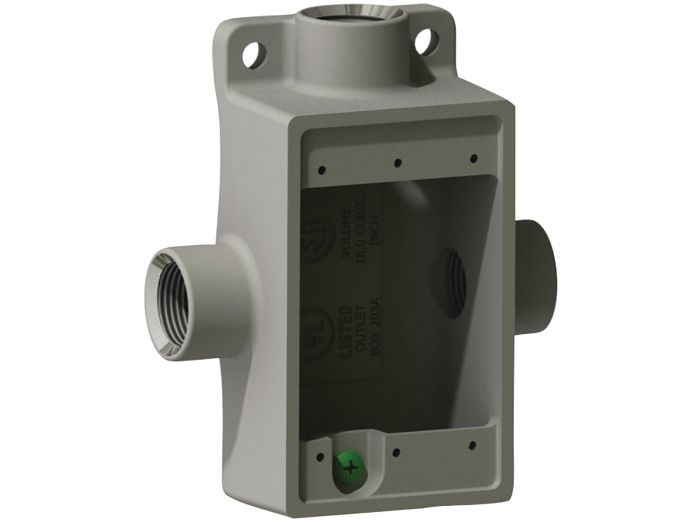

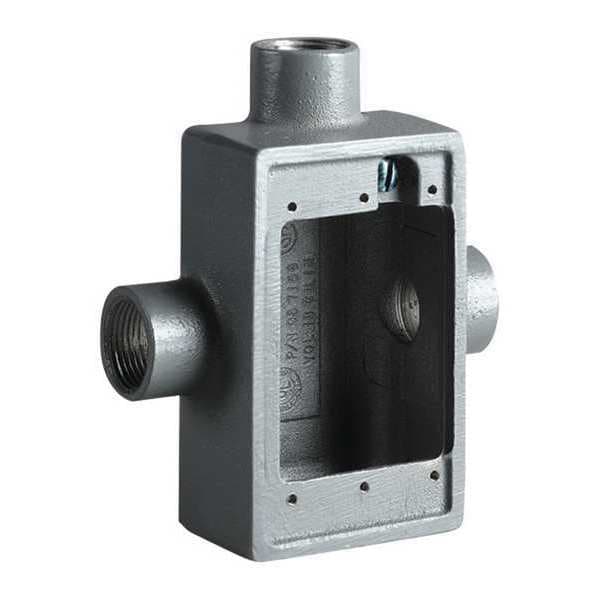

The HUBBELL FST2 is a 3/4" aluminum, FST type shallow device box with tapered threads and internal grounding screw. Mounting feet are provided as standard. It is suitable for use in wet locations when used with gasket covers, and cast iron is suitable for concrete use.

• Buy America(n) Qualified
• Tapered threads (NPT with integral bushings)
• Internal grounding screw

Product Highlights

This device box accommodates wiring devices and provides opening to splice, tap, or pull conductors. It provides access to conductors for maintenance and future system changes.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FST2
• Country of Origin: USA

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: FST-2
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Hub Pattern: FST
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 1
• Series: F Series
• Type: Device Box
• UPC: 783936190464
• Hub Size: 3/4"
• Box Depth: 2 in
• Box Height: 2-7/8 in
• Box Shape: Rectangular
• Box Width: 4-5/8 in
• Bracket Type: Lugs
• Capacity: 18 cu in
• Hub Type: Feed Through
• Number of 3/4 in Side Knockouts: 3
• Number of Gangs: 1
• Overall Depth: 2 in
• Overall Height: 4-5/8 in
• Overall Width: 5-1/2 in
• Standards: CSA; UL Listed
• UNSPSC: 39121305
• Manufacturer: Hubbell Electrical Products
• Item model number: 783936190464
• Item Package Quantity: 1
• Batteries Required?: No
• CSA File Number: LR11852
• UL File Number: E3397
• MFR #: FST-2
• Zoro #: G5070436
• UPC #: 783936190464
• Item: Electrical Box
• Mounting Holes O.C. (In.): 0.75 in
• Number of Inlets: 3
• Description/Special Features: Internal Grounding Screw, Tapered Threads
• Finish: Powder Epoxy Paint
• Special Features: Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
• Product Series: FST
• Family Series: Killark Electrical Boxes, FST Series
• Description: FST 3/4in. AL SHALL DEV BOX
• Style: FST
• Number of Hubs: 3
• Connection Type: Threaded
• Grounding: Yes
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
