Hubbell FSCA1 FSCA Type Shallow Device Box 1/2 inches

Product Description

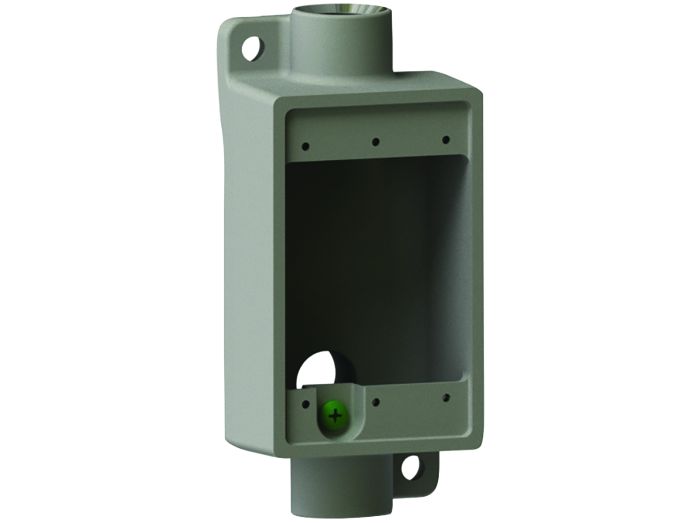

The HUBBELL FSCA1 is a 1/2" aluminum, FSCA type shallow device box designed to accommodate wiring devices and provide an opening to splice, tap, or pull conductors. It provides access to conductors for maintenance and future system changes. It features tapered threads and an internal grounding screw.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard

Product Highlights

The FSCA1 device box is suitable for use in wet locations when used with gasket covers and cast iron is suitable for concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FSCA1

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: FSCA-1
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Hub Pattern: FSCA
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: F Series
• Type: Device Box
• UPC: 783936192321
• Height: 2 in
• Hub Size: 1/2 "
• Length: 1 in
• Width: 1 in
• Buy America(n) Qualified: Contact Manufacturer
• CSA File Number: LR11852
• UL File Number: E3397
• Product Series: FSCA
• Manufacturer Part Number: FSCA-1
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, FSCA Series
• Description: 1/2in. FS BOX SHAL.in.CA: ALUMINUM
• Style: FSCA
• Number of Gangs: 1
• Number of Hubs: 1
• Connection Type: Threaded
• Grounding: Yes
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
