Product Description

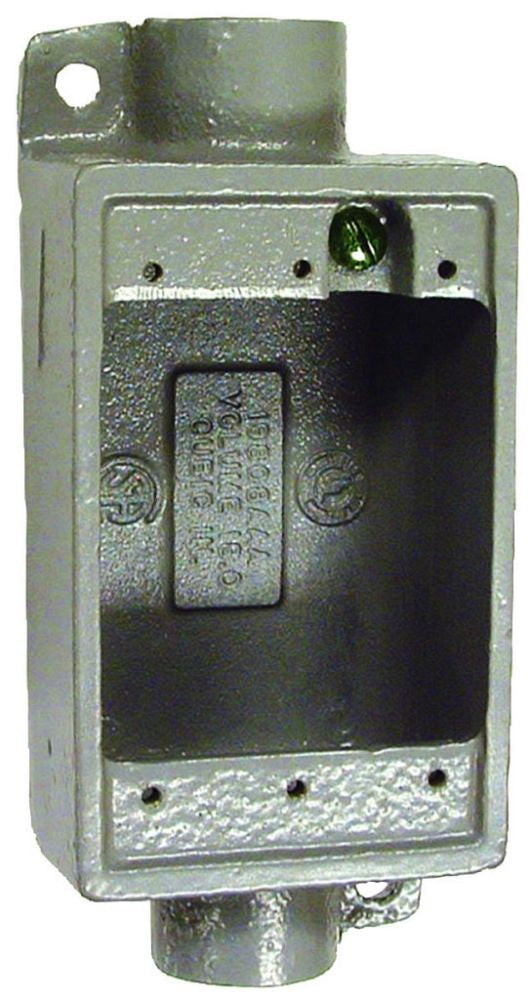

The Hubbell FSC-3 is a cast device box designed for use in various electrical applications. It features a feed-through design with one outlet and is constructed from copper-free aluminum. The box has a capacity of eighteen cubic inches and measures six and three-eighths inches in height, two and seven-eighths inches in width, and two inches in depth.
- Made from copper-free aluminum
- Suitable for wet locations with gasket covers
- NEMA FB-1 rated enclosure
Product Highlights
This device box provides an efficient solution for wiring devices, allowing access to conductors for maintenance and modifications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Model Number: FSC-3
Technical Specifications
-
Application: For open air cable routing and providing access to conductors for maintenance and future system changes
-
Color: Gray
-
Dimensions: 6-3/8 inches H x 2-7/8 inches W x 2 inches D
-
Enclosure: NEMA FB-1
-
Finish: Powder Coated
-
Hub Size: 1 inch
-
Hub Style: Tapered Threaded
-
Material: Copper-Free Aluminum
-
Mounting Type: Lug
-
Number of Gangs: 1
-
Number of Outlets: 1
-
Series: FSC
-
Standards/Approvals: UL 514A File No. E3397 | CSA C22.2 No. 18 File No. LR11852 | NEMA FB-1 | Federal Specification No. W-C-586D | PROP65: This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Type: Feed-Through
