Product Description

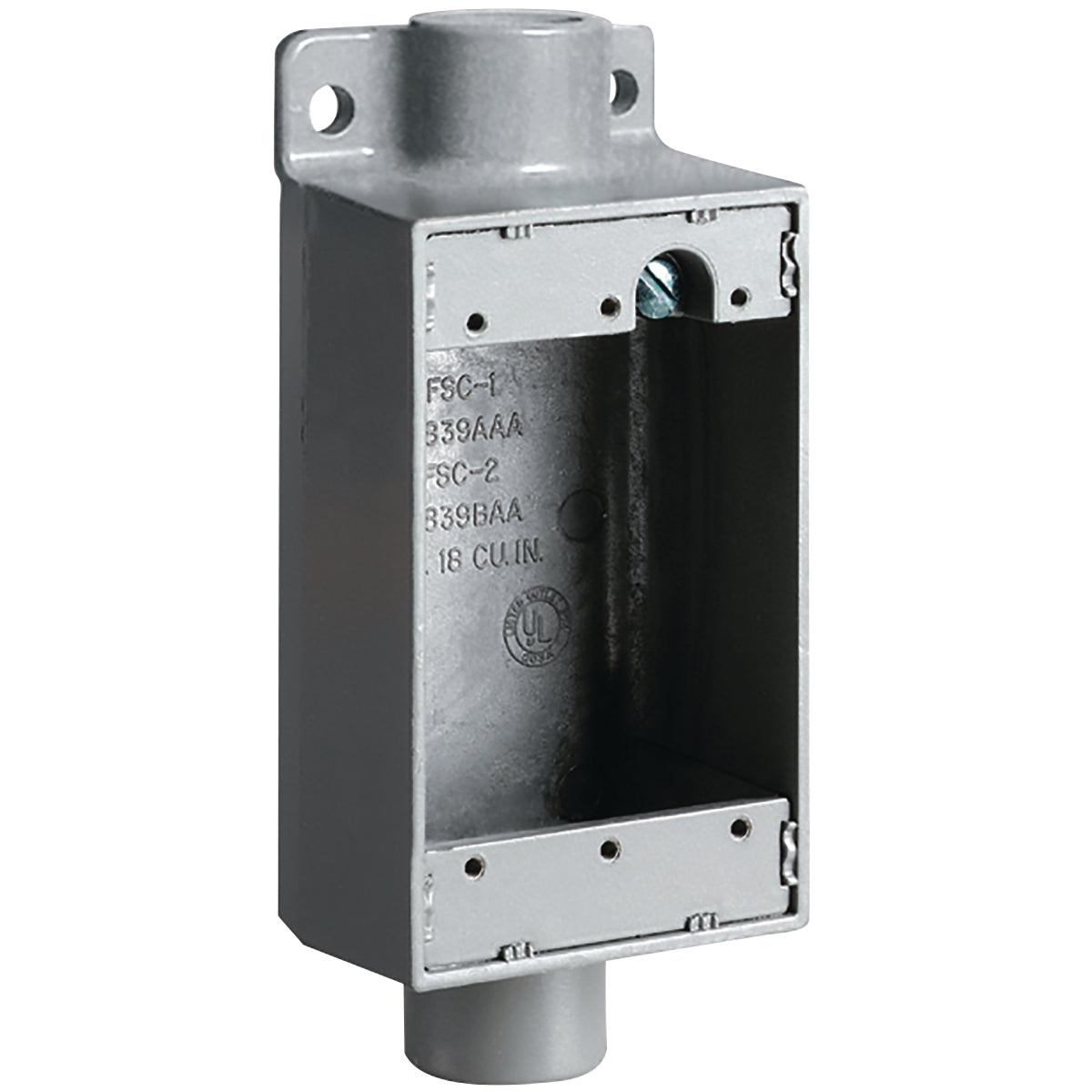

The Hubbell FSC-2M is a feed-through device box designed for electrical applications. Made of iron, it offers an eighteen cubic inch capacity suitable for various wiring and maintenance tasks.
- Accommodates wiring devices and provides access for splicing, tapping, or pulling conductors.
- Features tapered threaded hubs (three-quarter inch) for effective cable entry.
- Meets NEMA FB-1 standards for durability in wet locations when used with appropriate covers.
Product Highlights
Designed for easy access to conductors, the FSC-2M is suitable for maintenance and system upgrades. This box is built to withstand environmental conditions when properly installed.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78393604880
Technical Specifications
-
Application: For providing access to conductors for maintenance and future system changes
-
Cable Entry Size: Hub
-
Color: Gray
-
Dimensions: 6-3/8 inches H x 2-7/8 inches W x 2 inches D
-
Enclosure: NEMA FB-1
-
Finish: Tri-Coated
-
Hub Size: 3/4 inches
-
Hub Style: Tapered Threaded
-
Manufacturer Part Number: FSC-2M
-
Material: Iron
-
Mounting Type: Lug
-
Number of Gangs: 1
-
Number of Outlets: 1
-
Series: FSC
-
Standards/Approvals: UL 514A File No. E3397 | CSA C22.2 No. 18 File No. LR11852 | Federal Specification W-C-586D | NEMA FB-1
-
Type: Feed-Through
