Hubbell FSC-2 FSC2 KIL 3/4 1G ELECTROLET

Product Description

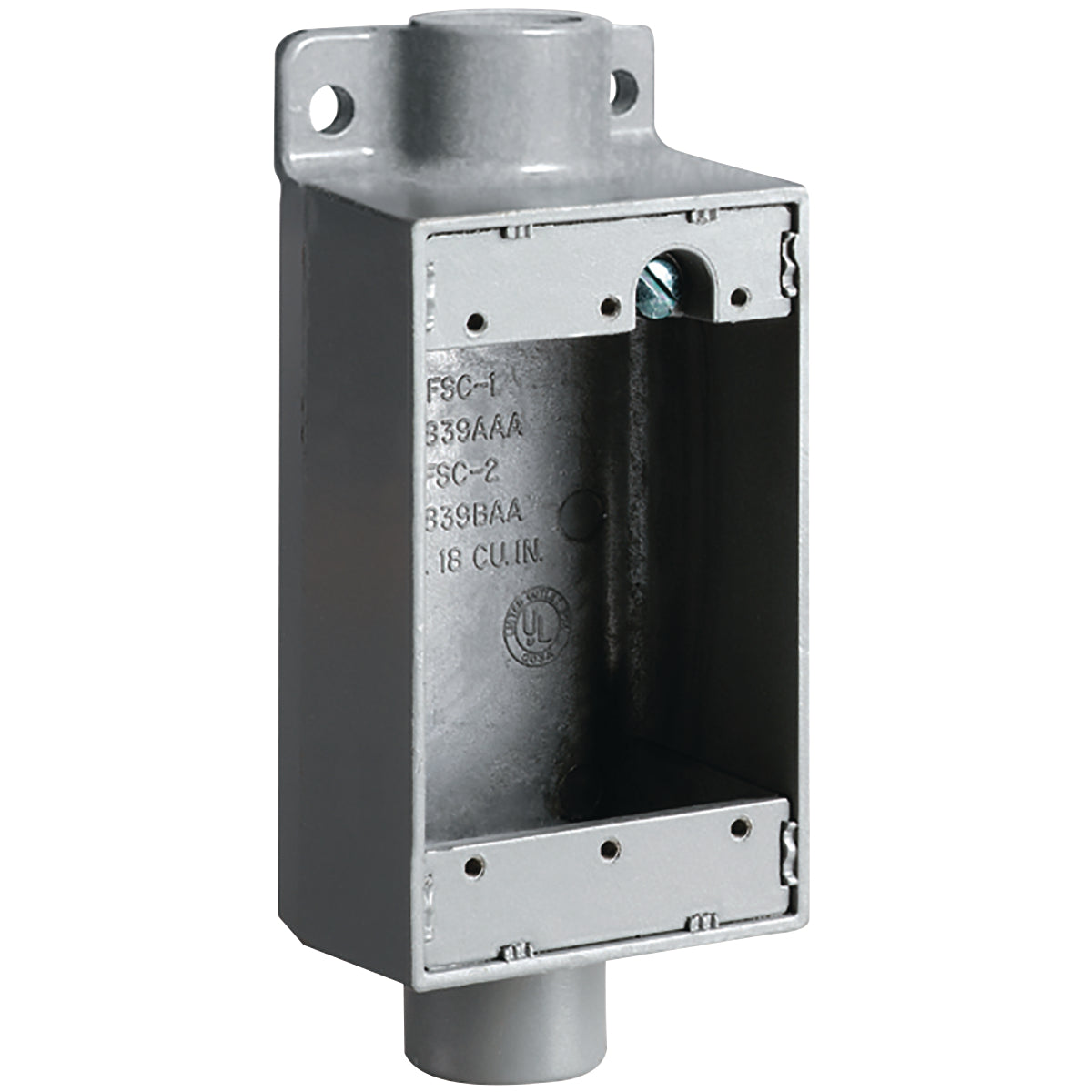

The Hubbell FSC-2 is a feed-through cast device box made from copper-free aluminum. It is designed to accommodate wiring devices while providing access to splices, taps, or conductors. This model features a NEMA FB-1 enclosure suitable for use in wet locations when paired with gasket covers.

• Made from copper-free aluminum
• Powder-coated for durability
• Dimensions: six and three-eighths inches high by two and seven-eighths inches wide by two inches deep

Product Highlights

This device box supports various wiring configurations and provides easy access for maintenance or updates to electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393619018

Technical Specifications

• Application: For providing access to conductors for maintenance and future system changes
• Color: Gray
• Dimensions: 6-3/8 inches high x 2-7/8 inches wide x 2 inches deep
• Enclosure: NEMA FB-1
• Finish: Powder Coated
• Hub Size: 3/4 inches
• Hub Style: Tapered Threaded
• Material: Copper Free Aluminum
• Mounting Type: Lug
• Number of Gangs: 1
• Number of Outlets: 1
• Series: FSC
• Standards/Approvals: NEMA FB-1|CSA C22.2 No. 18 File No. LR11852|Federal Specification No. W-C-586D|UL 514A File No. E3397|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Type: Feed-Through
