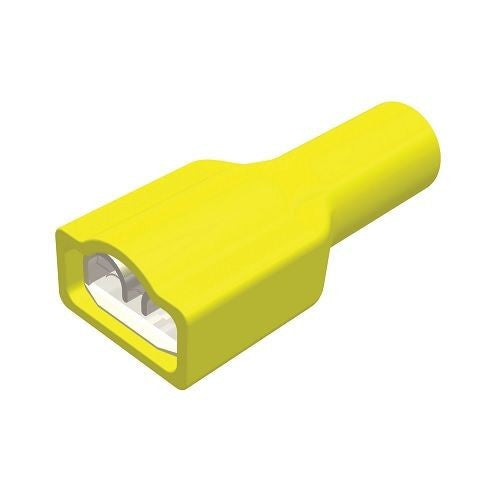

HUBBELL FQN10M25X03D Fully Insulated Nylon Male Quick Disconnect

Product Description

The HUBBELL FQN10M25X03D is a nylon male quick disconnect suitable for use with twelve to ten AWG copper stranded conductors. This connector features a funnel entry barrel to facilitate quick and easy wire insertion, reducing installation time. The dimpled female socket detent provides a secure connection, ensuring reliable performance. The nylon insulation negates the need for additional post-installation insulation, streamlining the process.

• Compatible with twelve to ten AWG copper stranded conductors.
• Funnel entry barrel allows for fast wire insertion.
• Nylon insulation ensures complete coverage.

Product Highlights

This connector is ideal for electrical applications requiring a firm and reliable connection.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: FQN10M25X03D

Technical Specifications

• Material: Brass
• Strip Length: 3/8 inches
• THK: 0.03 inches
• Center to Center Width: 0.13 inches
• Temperature Rating: 105 degrees C
• Voltage Rating: 300 VAC
• Standard & Approvals: cULus Listed, RoHS Compliant
• Conductor Size: 12 to 10 AWG
• Color: Yellow
• Conductor Type: Copper Stranded
• Finish: Tin Plated
• Dimensions: 0.96 inches Diameter x 13 inches Length x 0.48 inches Width
• Type: Fully Insulated
