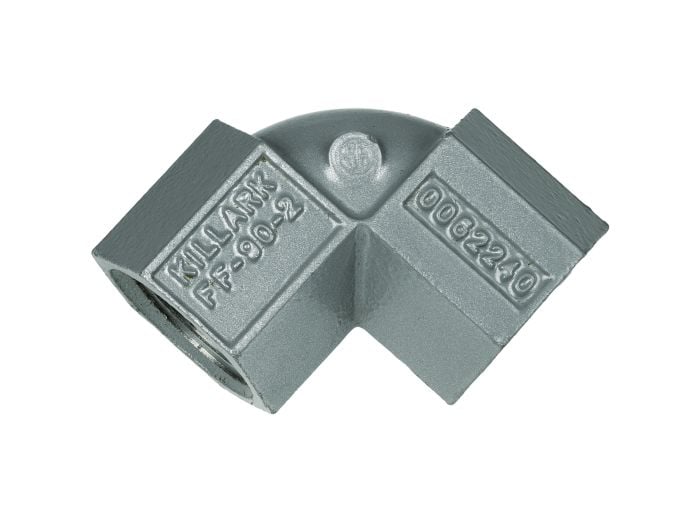

Hubbell FF90-2 90° 3/4 inches Elbow, Female/Female

Product Description

The HUBBELL FF90-2 is a 90° elbow, designed for changing direction in rigid or IMC conduit systems. It features threads for rigid conduit or IMC and smooth integral bushings to prevent damage to wires. Constructed from copper-free aluminum with a powder epoxy paint finish.

• Threaded for rigid conduit or IMC
• Smooth integral bushings to prevent damage to wires
• Electrostatically Applied Powder Coating

Product Highlights

The HUBBELL FF90-2 is ideal for use in conduit systems requiring a change of direction.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FF90-2
• Country of Origin: US - United States

Technical Specifications

• Application: Conduit Systems
• Catalog Number: FF-90-2
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Material: Aluminum
• Series: FF Series
• Type: 90 Elbow
• UPC: 783936170046
• Height: 3 in
• Hub Size: 3/4"
• Length: 3 in
• Weight: 0.17 lb
• Width: 2 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Manufacturer Part Number: FF-90-2
• Manufacturer: Killark
• Product Series: FF
• Family Series: Killark Fittings, FF Series
• Description: FEMALE/FEMALE 90 3/4in. ELBOW
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female to Female Thread
• Angle: 90
• Trade Size: 3/4 "
• Composition: Metallic
• Approvals: CSA, UL
• Net Weight: 0.17 lbs
• Gross Weight: 0.175 lbs
• Finish: Powder Epoxy Paint
• Standard: CSA Certified File LR11716, FM Approved File 25215, UL File E10514
• Use With: Rigid Conduit or IMC Conduit System
• Color Family: Gray
• Diameter: 3/4 in
