Hubbell FB4133 Flush 1-Gang Concrete Floorbox with Rectangular Cover, 3.50 inches Minimum Depth of Pour

Product Description

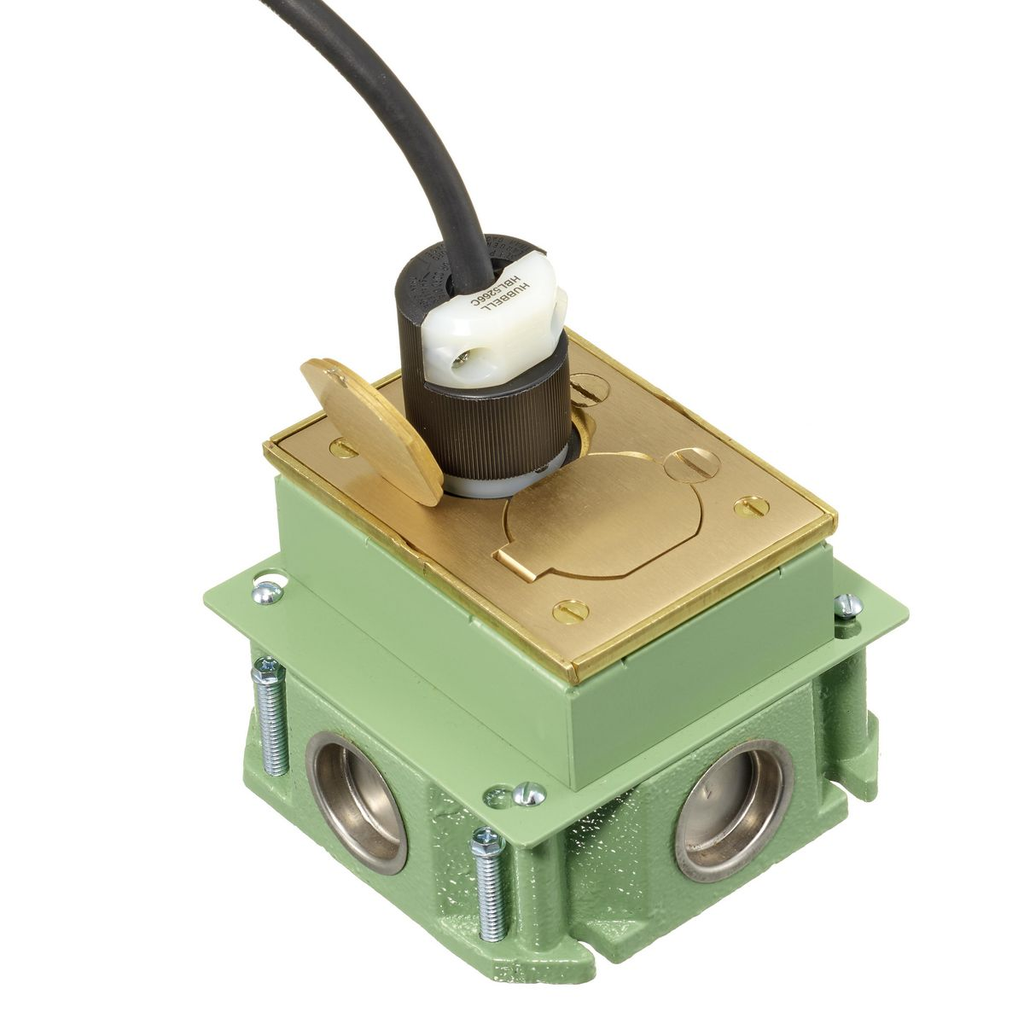

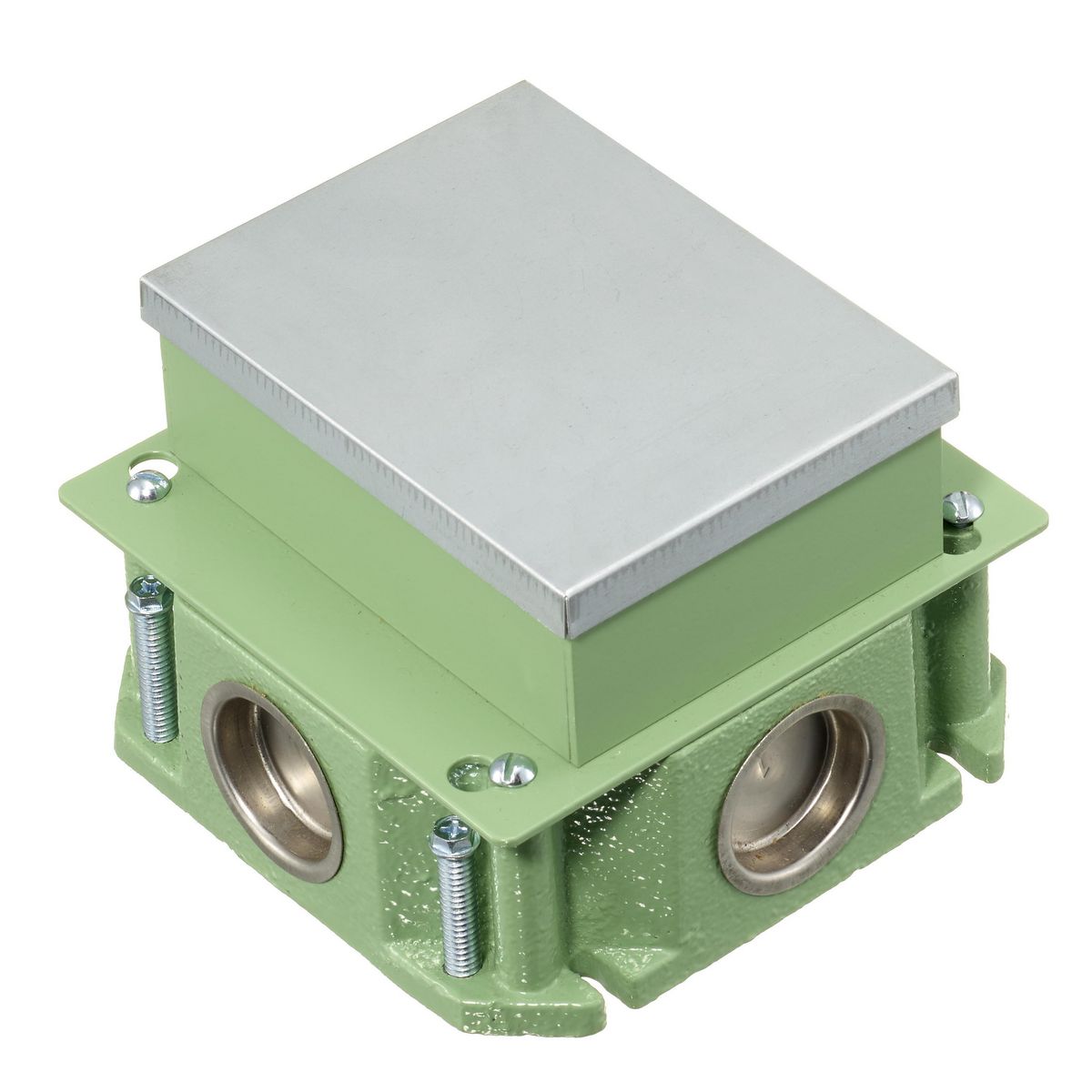

The HUBBELL FB4133 is a rectangular flush deep cast iron base floorbox with a stamped steel adjustable top designed for use with rectangular covers and flanges in concrete floors. This 1-gang box has a 3.50" minimum depth of pour and includes an installation concrete cover and disposable PVC spacer.

• 3.50" minimum depth of pour
• (4) 1" threaded hubs, ships with (2) 1" to ¾" threaded reducers
• 1.25" prepour and 0.875" post pour adjustment

Product Highlights

The floorbox features a green painted corrosion-resistant cast iron base and stamped steel top, and is suitable for slab in grade, 2nd floor, and above concrete floors.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FB4133
• Country of Origin: CN

Technical Specifications

• Application: For Use in Concrete Floors
• Catalog Number: FB4133
• Color: Green
• Construction: Fabricated
• Knockouts: 4
• Material: Cast Iron Base Box, Pregalvanzied Steel Top, PVC Spacer
• Mounting Method: Screw Mount Device Mounting Plates
• Mounting Type: Field Installed
• Number of Gang(s): 1-Gang
• Series: Concrete Floorboxes
• Size: 1-Gang
• Style: 1-Gang
• Type: Flush
• UPC: 783585696041
• Dimensions: 4.85 in x 4.85 in x 3.42 in
• Dimensions Metric: 123.2 mm x 123.2 mm x 87.0 mm
• Height: 3.42 in
• Height Metric: 87 mm
• Length: 4.85 in
• Length Metric: 123.2 mm
• Width: 4.85 in
• Width Metric: 123.2 mm
• Industry Standard(s): cULus Listed to UL514
• Shape: Rectangular
• Standard: cULus Listed to UL514
• UNSPSC: 39121307
• Number of Knockouts: 4
• Number of Gangs: 1
• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell
